Summary of Contents for Top R/C Hobby Jetstar

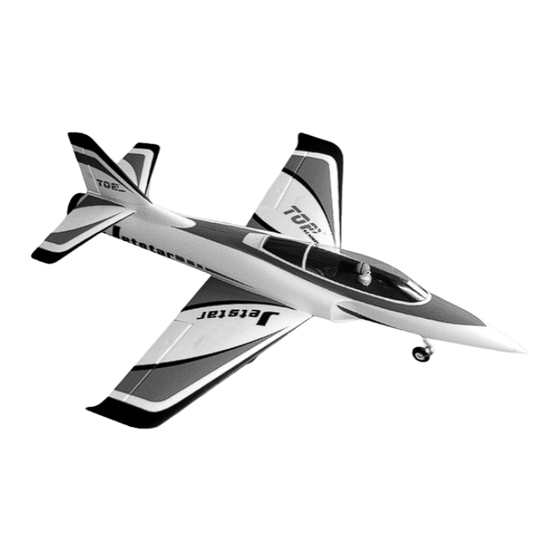

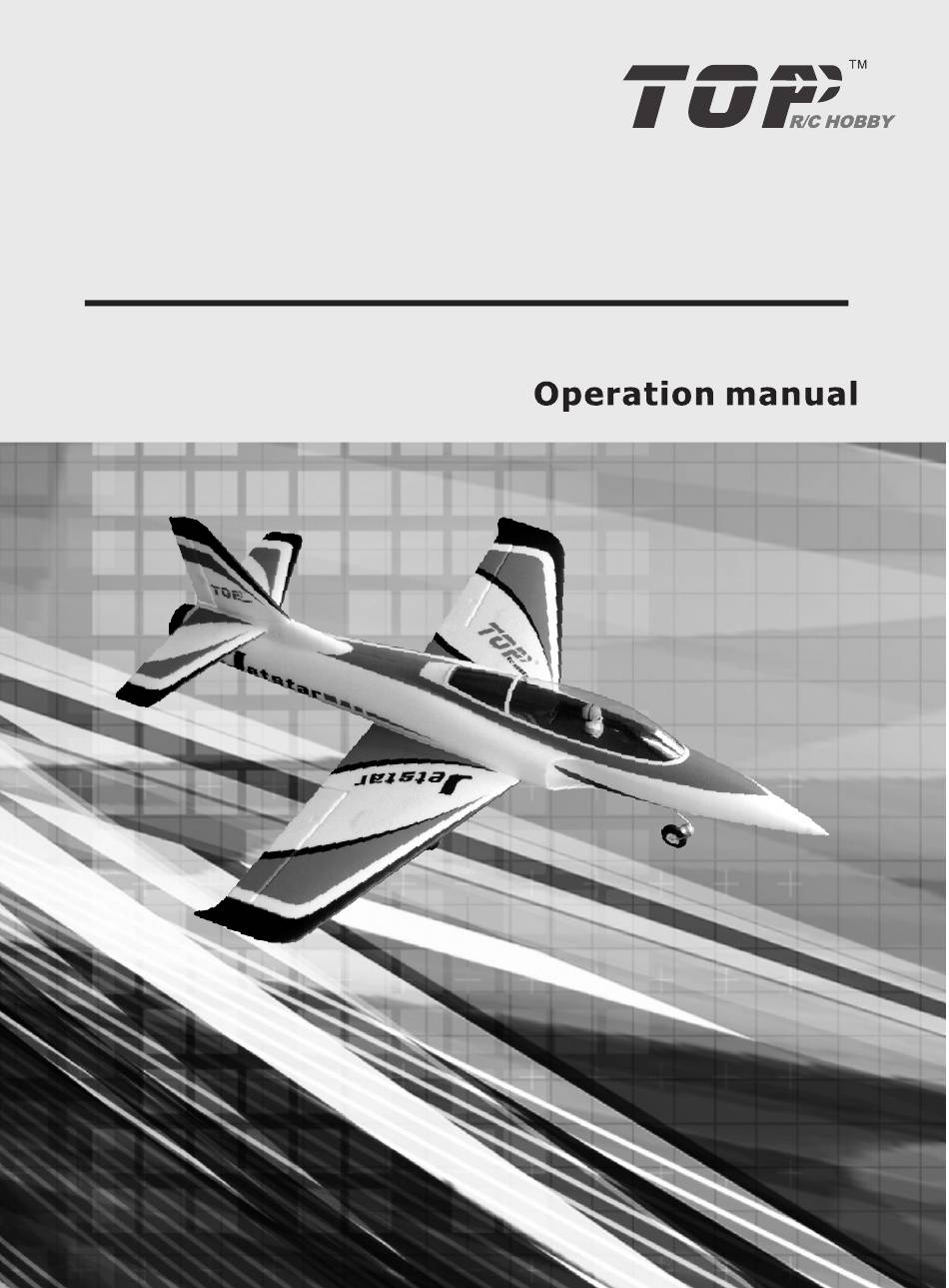

- Page 1 Jetstar Radio Control Model Airplane...
-
Page 2: Table Of Contents
CONTENTS Brief introduction ..................1 Main specifications ..................1 Main configuration...................1 Products constitution..................1 Assemble processes...................2 Safety precautions..................3 Charging method and cautions..............3 Caution and Notice for Li-po batter y .............4 Caution and notice for ESC ..............4 Spare parts......................5 Statement: 1.Please read this manual carefully and follow the instruction of the manual before you use this products;... -
Page 3: Brief Introduction
Brief introduction Thank you for purchasing the remote control model airplanes from Top RC, and we hope this plane will bring endless joy to you after you choose it. ★ Scale appearance and vivid flight gesture. ★ Front landing gear could be turn around, resulting to easy swerve on the ground. Easy take off! ★... -
Page 4: Assemble Processes
Assemble processes 1.Assembly of the front landing gear. Take of the front landing gear and loose HLM3*3MM screws on the steering connector. Please be sure that the gap location of steel wire is aligned with the screws. Then lock the front landing gear to the connecting sleeve. 2.Assembly of the main wings. -
Page 5: Safety Precautions
Caution ! 7.Check the center of gravity and make sure that the CG of the plane should be within the range as indicated by the arrows. Direction for opening cabin (See chart). 90-96mm Safety precautions 1.If you have the simulator, we suggest that you can practise your skill by the simulator before you fly this model, which will bring some help for you. -
Page 6: Caution And Notice For Li-Po Batter Y
Notice 1. While charging is in process, please do not make it near flammable materials. 2.Expect Li poly battery, this charger is not allowed for other kinds of battery. 3. While charging, please keep it out of the reach of Children. 4. -
Page 7: Spare Parts
Spare parts No:top02901 No:top02902 No:top02903 No:top02904 No:top02905 No:top02906 Fuselage(red) Fuselage(blue) Main wings(red) Main wings(blue) Horizontal wings(red) Horizontal wings(blue) No:top02907 No:top02908 No:top02909 No:top02910 Chair Cabin Vertical wings(red) Vertical wings(blue) No:top02911 No:top02912 No:top02914 No:top02915 Pilot(Red) Pilot landing gear (blue) Main landing gear Fron top30208 No:top02920... - Page 8 top507 top02921 Lipo battery(2200mAh 20C 11.1V) Motor(D2830B-3850KV)
- Page 9 Jetstar Radio Control Model Airplane...
