Setup - Video & Audio Setup

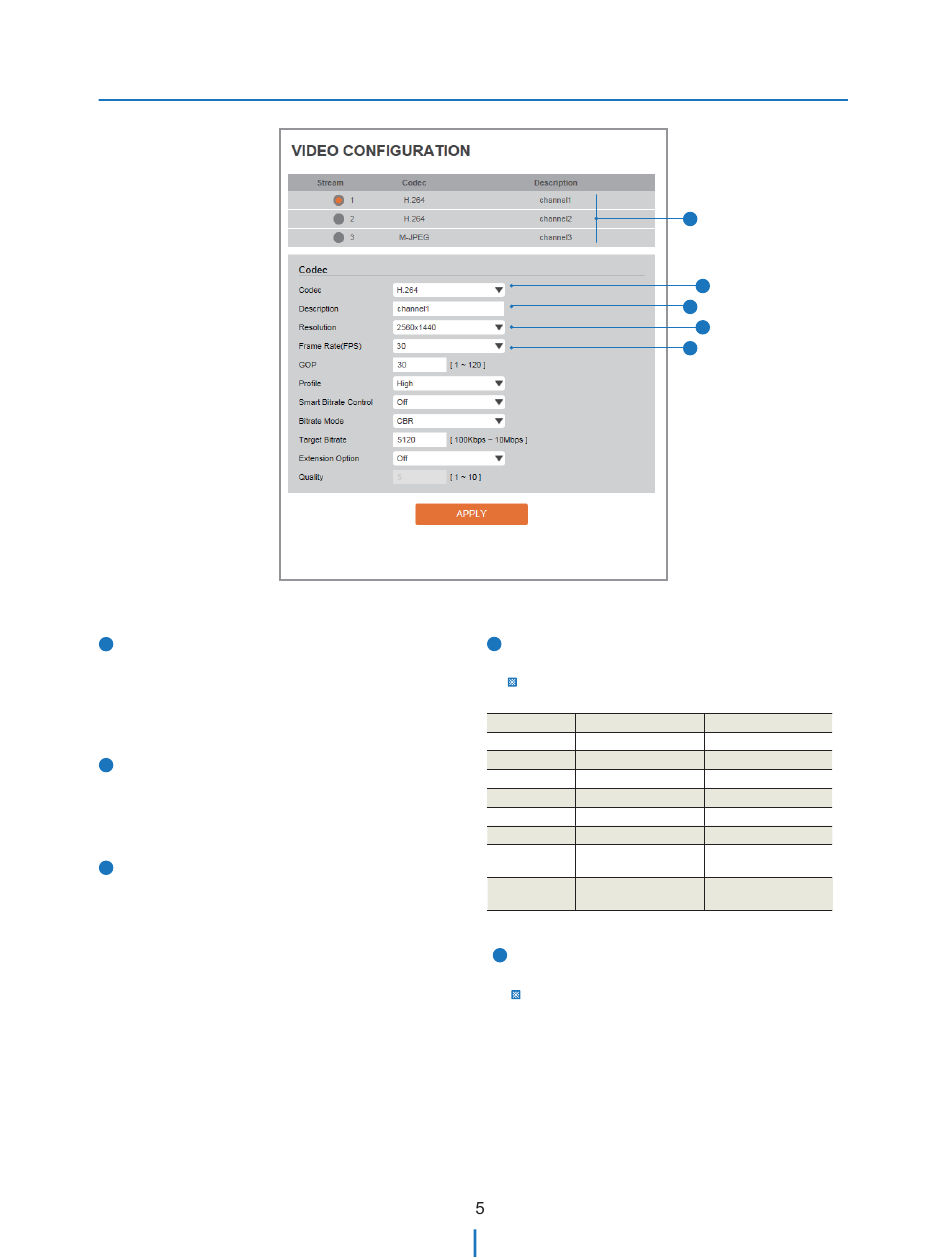

Video Configuration
1
Live Video Channel Setup
The video can be configured to variety settings with a
combination of codec and resolution.
The camera performance has to be considered when setting
multiple channels. This effects on the performance of the
camera.
2
Codec
Choose the video codec. According to the selected codec,
the subcategories can be changed automatically.
When MJPEG codec is selected, it will be able to set whether
to use the relevant channel for image transfer.
3
Description
Input the additional description about the selected channel.
Max. 30 alphabets are allowed(Including space). For the
description, English Alphabets, numbers and special
characters ( - _ @ . ) can be used.
4
Resolution
Select the video resolution.
Available resolution can be depends on the codec setup between
the channels.
NTSC
4M 2560 x 1440
3M 2304 x 1296
1080p/i 1920 x 1080
720p/i 1280 x 720
SVGA 800 x 600
VGA 640 x 480
704 x 576
4CIF
704 x 480
352 x 288
CIF
352 x 240
<Resolution of Video Format>
5
Frame Rate
Select the maximum Frame Rate.
Available Frame Rate can be different although same codecs
were set up.
1
1
2
3
4
5
PAL
2560 x 1440
2304 x 1296
1920 x 1080
1280 x 720
800 x 600
640 x 480
704 x 576
704 x 480
352 x 288
352 x 240
