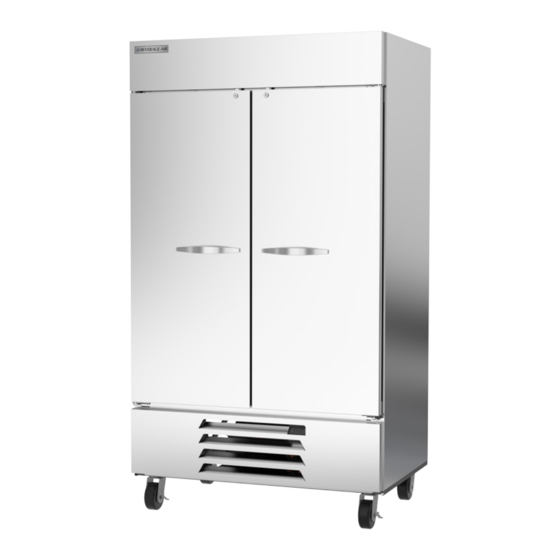

- Page 1 INSTALLATION AND OPERATING INSTRUCTIONS for all Hydrocarbon HBF Freezer Models 809-157A 06/14/2022 SEE BACK COVER FOR 3779 CHAMPION BLVD, WINSTON-SALEM, NC 27105 WARRANTY REGISTRATION Phone: (888) 845-9800 | Fax: (800) 253-5168 | Web: beverage-air.com...
-
Page 2: Table Of Contents
Please call our Technical Service meets the high standards set by Beverage-Air! You have Department at (800) 684-1199. 8:00 AM to 5:00 PM EST. made a quality investment that with proper maintenance... -
Page 3: Safety
R290 equipment. • Clean a dirty condenser with a sharp object. • Use ONLY Beverage-Air factory service parts. Use of • Store gasoline, kerosene or any other flammable non OEM parts can be dangerous because of the design material near the cabinet. - Page 4 User Manual for HBF Freezers Beverage-Air SAFETY CAUTION: If it is necessary to move the Refrigerator after removal from the skid, CAUTION remove all doors and carefully push the unit at a point of no more than 36” from the bottom to avoid damage.
-
Page 5: Important Information
User Manual for HBF Freezers Beverage-Air IMPORTANT INFORMATION This unit is intended to be used in a commercial application. That includes bars and restaurants. If installed in a residence some commercial service companies may not be able to service it on site. -
Page 6: Product Information
24 x 26 x 67 3/8 Full Solid HBF12HC-1-G 24 x 24 1/2 x 67 3/8 Full Glass 5-15P R-290 / 50* HBF19HC-1 5-15P R-290 / 150* 27 1/4 X 27 3/4 X 84 Full Solid HBF19HC-1-G 5-15P R-290 / 150*... -
Page 7: Clearance And Placement
User Manual for HBF Freezers Beverage-Air CLEARANCE AND PLACEMENT 0" MINIMUM CLEARANCE 0" LEFT/RIGHT SIDE MINIMUM CLEARANCE 3" REAR MINIMUM CLEARANCE 3" BOTTOM MINIMUM CLEARANCE Placement Consider the following when selecting a location for your freezer: Clearance: • 0 in. at the top •... -
Page 8: Unpacking And Set Up
User Manual for HBF Freezers Beverage-Air UNPACKING AND SET UP Carefully inspect the shipping carton for damage. This is the only time that shipping damage may be claimed. If damage is suspected, open the carton immediately and, if there is damage, retain the carton and contact the shipper to make a claim. -
Page 9: Shelf Installation
4. Install all remaining clips. manner. Contact Beverage-Air customer service if fewer shelves or a different configuration to ensure 5. Install shelves onto clips with the product retention shelf overloading will not occur. -
Page 10: Electrical
User Manual for HBF Freezers Beverage-Air ELECTRICAL This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the machine to confirm the voltage and per the dataplate use the correct fuses or HACR circuit breakers. -
Page 11: Using The Unit
User Manual for HBF Freezers Beverage-Air USING THE UNIT Operation is simple, just keep it connected to the correct The freezer will automatically defrost as needed, there is power supply and the refrigerator will maintain the no set time for defrost. Push and immediately release the internal temperature it has been set to. -
Page 12: Sequence Of Operations Freezer
User Manual for HBF Freezers Beverage-Air User Manual for PFI Freezers Beverage-Air SEQUENCE OF OPERATIONS FREEZER The freezer operates based on the air temperature measured by the probe located at the return air. CONTROLLER CONTROLLER COMPONENT OPERATION OPERATION ACTION ACTION... - Page 13 User Manual for PFI Freezers Beverage-Air User Manual for HBF Freezers Beverage-Air User Manual for PFI Freezers Beverage-Air Keyboard Functions DEFROST (ESC) DOWN SET (ENTER) Quick press and release Quick press and release Quick press and release Quick press and release •...
- Page 14 01 2 3 ÿ 56 7 8 6 9 ÿ 3 ÿ ÿ 9 ÿ 5 9 ÿ 9 2 3 ÿ 2 2 3 6 2 3 User Manual for HBF Freezers Beverage-Air ! " ! # $ % ! & '( # ÿ Beverage-Air Rev.
- Page 15 User Manual for HBF Freezers Beverage-Air () * + , ÿ . / ÿ 0 1 0 2 3ÿ 4 5 6 1 7 8 9 : ; ÿ < 9 34 8 ÿ 0 2 4 ÿ 9 ; ÿ = 2 : > 2 4 8 8 ÿ ? @A @ÿ / : 1 C 4 2 ÿ : / ÿ < D 4 ÿ = 0 2 0 34 < 4 2 ÿ < 0 E 1 4 F G ÿ < D 4 ÿ 0 1 0 2 3ÿ 9 8 ÿ ; : < ÿ 8 9 > ; 0 1 4 C H ÿ...
-
Page 16: Cleaning And Maintenance
User Manual for HBF Freezers Beverage-Air CLEANING AND MAINTENANCE Cleaning Schedule: Cabinet Condenser coil Gaskets Routine maintenance Daily wipe down Quarterly cleaning Daily inspection, check Annually that hinges are tight to Weekly interior the cabinet. Daily Exterior Cleaning It is much easier to clean on a regular basis than to have to remove stains once they have built up. -
Page 17: Condenser Cleaning
User Manual for HBF Freezers Beverage-Air CONDENSER CLEANING Keeping the condenser coil clean is critical to efficient operation. 1. Unplug unit from power supply. Remove Screw Rotating fan blade can cause CAUTION personal injury. Unplug unit from power supply before beginning to clean condenser 2. -
Page 18: Methods For Cleaning Stainless Steel
User Manual for HBF Freezers Beverage-Air METHODS FOR CLEANING STAINLESS STEEL Cleaning Needed Cleaning Agent Method of Application Affect on Finish Satisfactory for use on all Areal 20, Lac-O-Nu, Lumin Wash Rub with cloth as directed finishes. Smears and fingerprints O’Cedar Cream Polish, Stainless... -
Page 19: Help
User Manual for HBF Freezers Beverage-Air HELP Trouble Diagnosis for the User Malfunction Possible Cause Likely Solution Connect to proper voltage circuit Replace Unit not plugged in. fuse or reset breaker. No cooling - unit is silent Fuse or circuit breaker tripped. -
Page 20: For The Service Tech - R290
User Manual for HBF Freezers Beverage-Air FOR THE SERVICE TECH - R290 Refrigeration service should only be attempted by a trained trade professional certified to work on R290 systems. Here are some critical service items. Other Information: This list does not qualify anyone to service the unit. It is a Evacuation: It is critical that a refrigeration system be reminder and checklist for the service tech. -
Page 21: For The Service Tech - Wiring Diagram For 115 Volt Models
User Manual for HBF Freezers Beverage-Air FOR THE SERVICE TECH - WIRING DIAGRAM FOR 115 VOLT MODELS Rev. 06/22 Beverage-Air... -
Page 22: For The Service Tech - Wiring Diagram For 230 Volt Models
User Manual for HBF Freezers Beverage-Air FOR THE SERVICE TECH - WIRING DIAGRAM FOR 230 VOLT MODELS Beverage-Air Rev. 06/22... -
Page 23: Limited Warranty
(87) months from the date of defective. shipment from Beverage-Air, provided upon receipt of the The labor warranty shall be for self-contained units compressor, manufacturer examination shows the sealed only and for standard straight time, which is defined as compressor to be defective. -
Page 24: Limited Warranty (Continued)
With the exception of Blast Chillers product is designed for LIMITATION OF LIABILITY: maintaining temperature and not bringing food to a desired Beverage-Air Corporation or their affiliates shall not be temperature therefore cannot be held responsible for this liable for any indirect, incidental, special or consequential function under warranty. - Page 25 User Manual for HBF Freezers Beverage-Air Warranty Registration Register your product online at beverage-air.com/parts-service or fill out and mail the form below. Cabinet Model Number: _____________________________________________ Date Of Installation: _________________ Cabinet Serial Number: _____________________________________________ Location Of Product Business Name: ____________________________________________________...
