ARC MGDR-200 Manual

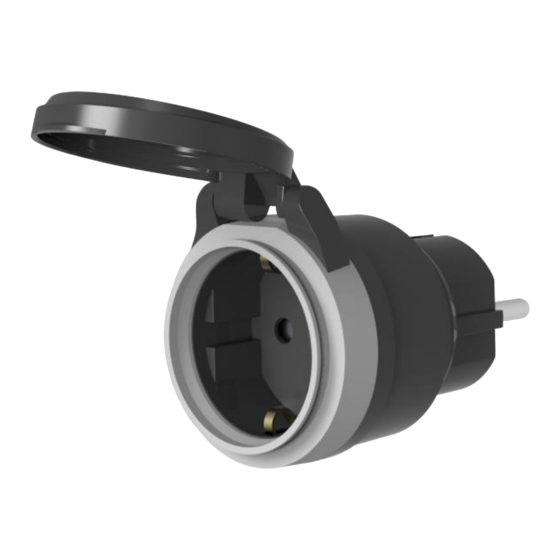

Wireless ip44 outdoor dimmer socket plug
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Table of Contents

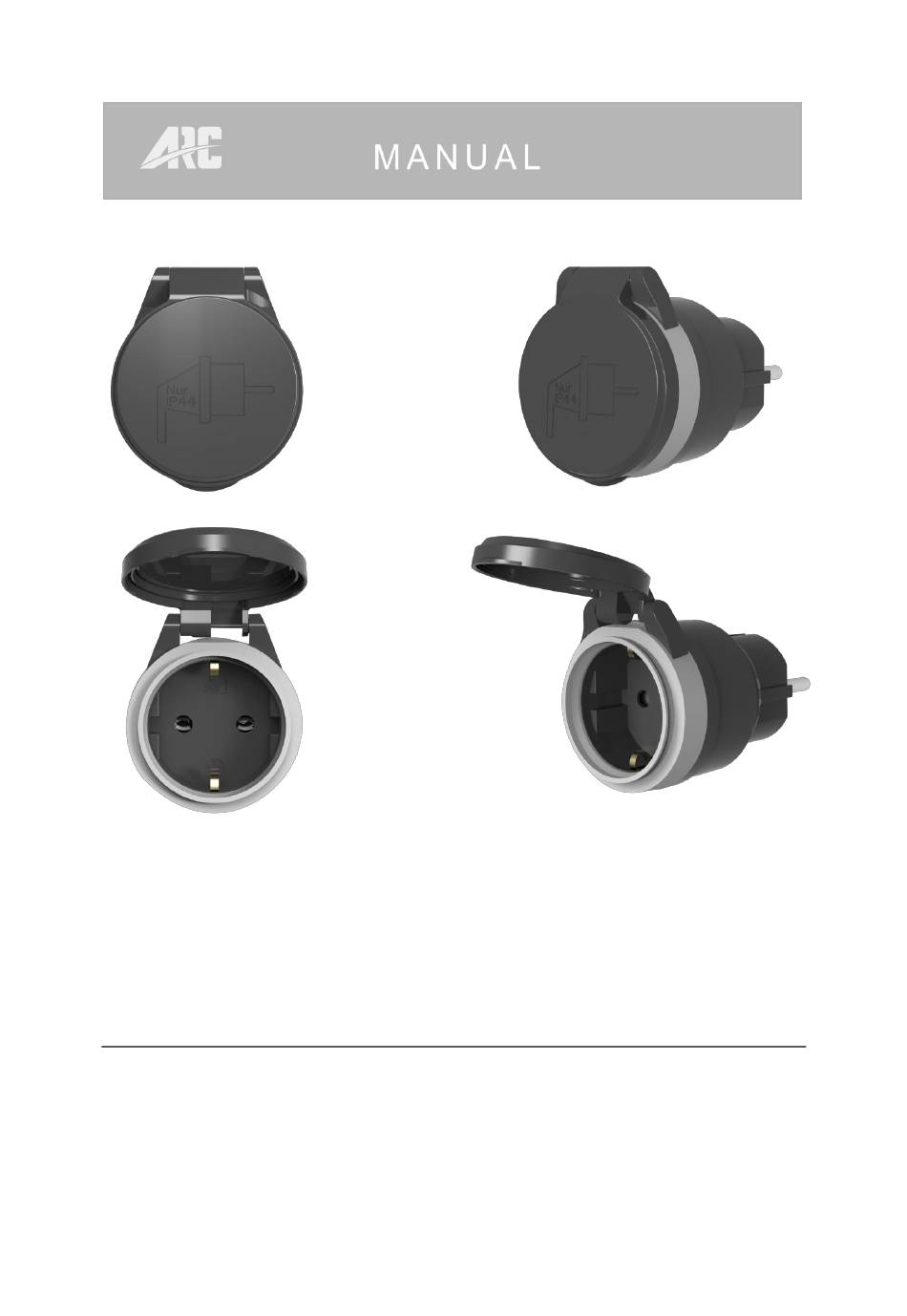

Issue Date: 27/07/2022
WIRELESS IP44 OUTDOOR
DIMMER SOCKET PLUG
CONTENTS
3. Minimum Brightness setup
MGDR-200
1
Page 2.
Page 3.
Page 6.
Page 7.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MGDR-200 and is the answer not in the manual?

Questions and answers

Related Manuals for ARC MGDR-200

Summary of Contents for ARC MGDR-200

  • Page 1 Issue Date: 27/07/2022 WIRELESS IP44 OUTDOOR DIMMER SOCKET PLUG MGDR-200 CONTENTS 1. Overview and features Page 2. 2. Pairing / Un-pairing device Page 3. 3. Minimum Brightness setup Page 6. 4. Specifications Page 7.
  • Page 2 • Intuitive, easy set up. Easy to use. • Operating mode under Trailing Edge. • 32 memories, first in first out storage maintain. • Scene status memory, create your desired atmosphere. Not compatible to: ARC Code switch system product range OVERVIEW AND FEATURES...
  • Page 3 Issue Date: 27/07/2022 2. Pairing / Un-pairing Device AIRING Pairing using LEARNING MODE: 1. Flip open the cover. 2. Plug in lamp / electronic device into socket then into an electrical outlet. 3. Within 6 seconds, on the remote control press the ‘ON’ button intend to be paired;...
  • Page 4 Issue Date: 27/07/2022 AIRING Removing single Device: 1. Unplug socket from the electrical outlet for at least 6 seconds. 2. Plug socket back into electrical outlet. 3. Within 6 seconds, on the remote control press the ‘OFF’ button intend to be un-paired;...
  • Page 5 Issue Date: 27/07/2022 LEARING EMORY Removing all memory stored in the socket. 1. Unplug socket from the electrical outlet for at least 6 seconds. 2. Plug socket back into electrical outlet. 3. Within 6 seconds, on the remote control press the ‘ALL OFF / GROUP ALL’ button;...
  • Page 6 Issue Date: 27/07/2022 3. Minimum Brightness Level Setup Socket can setup minimum brightness level. There are total 4 level brightness to choose from. To adjust the brightness level, please follow below setup. With a remote control (LYCT-505) 1. Enter Learning mode (plug socket into an electrical outlet) 2.
  • Page 7 Issue Date: 27/07/2022 4. Specifications Input Rating: 230V~50Hz Output Rating: Supported Load Wattage Incandescent and halogen lamps 20-200W / 230V~ Electronic transformers 20-200W / 12V~ Inductive transformers 40-200W / 12V~ Dimmable energy saving lamps 3-24W / 230V~ Dimmable LEDs 3-24W / 230V~ Radio Frequency: 433.92MHz 1W...
