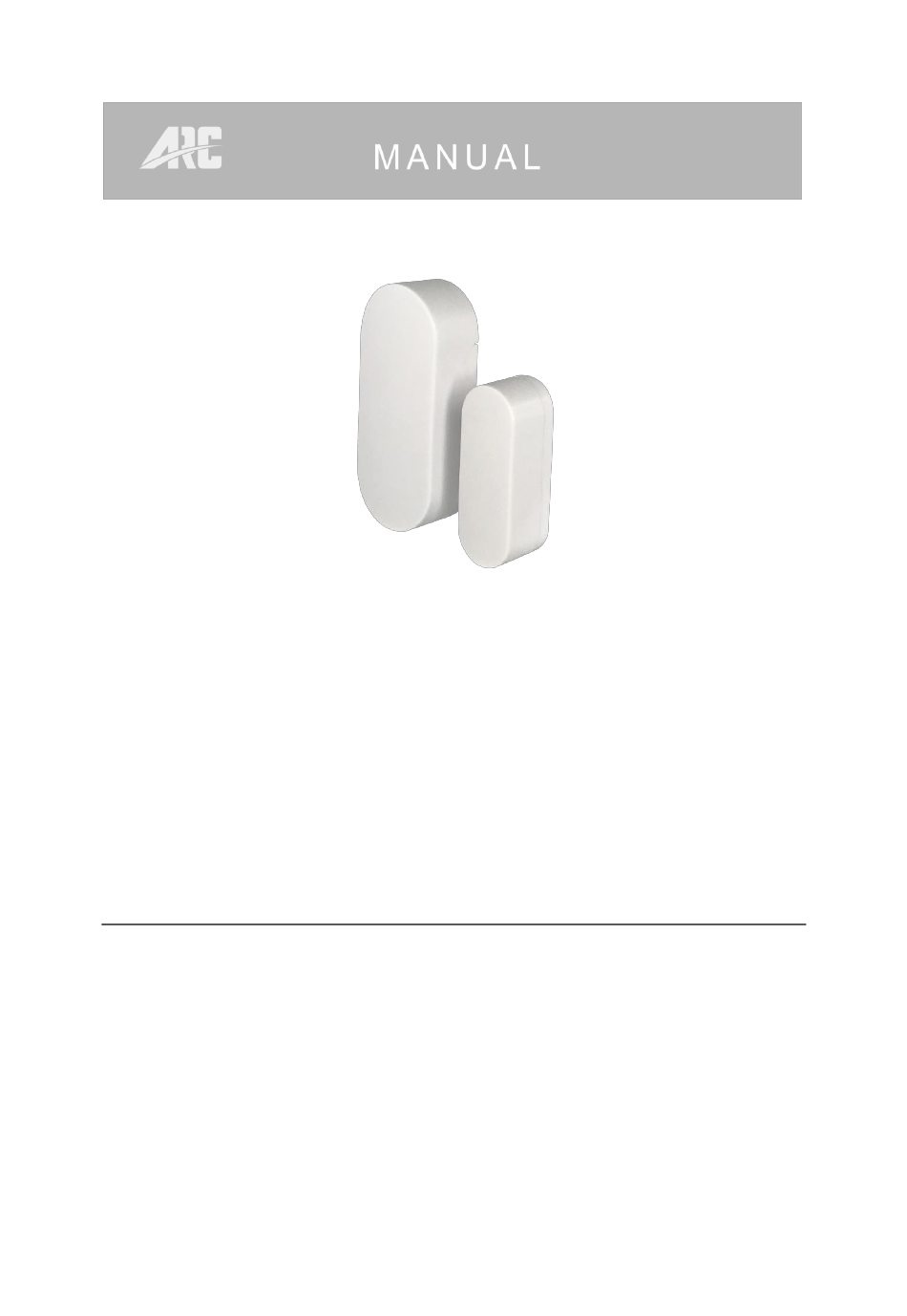

Issue date: 05/02/2020 MINI ENTRY SENSOR MEST-1701 CONTENTS 1. Overview and features Page 2. 2. Diagrams Page 3. 3. Battery Page 4. 4. Mounting on surface Page 7. 5. Pairing / Un-pairing device Page 11. 6. Delay Off timer setup Page 14. -
Page 2: Overview And Features

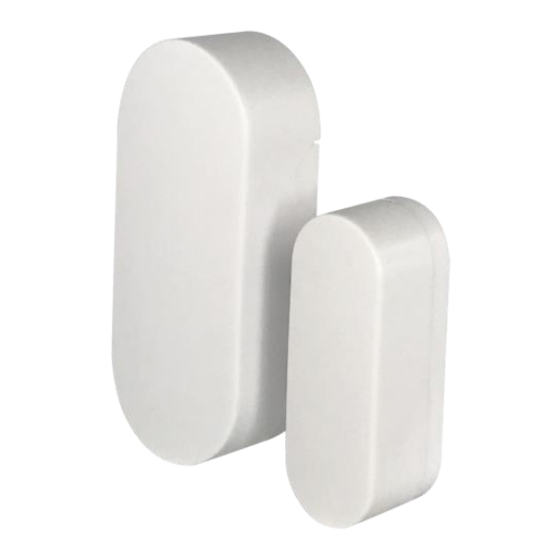

Issue date: 05/02/2020 1. Overview and features Miniature entry sensor designed to detect the opening of a door or window. One half of the assembly set on a window or door frame and the other attach to the window or door itself. When the sensor is separated from each other it automatically switch On / Off lights or triggers a security alert. -
Page 3: Diagrams
Issue date: 05/02/2020 2. Diagrams. Notes for the diagrams: Sensor Function Switch Position OFF Separate Sensor trigger OFF signal Close Sensor trigger ON signal Delay off timer Position ON Separate Sensor trigger ON signal Close Sensor trigger OFF signal When you select between function switch ON and OFF, the LED on sensor will indicate as: Position ON: LED flash once... -
Page 4: Battery
Issue date: 05/02/2020 3. Battery Red LED will flash once every 4 seconds to indicate the battery is low. 1. With the sensor back side facing up, gently slide down the back cabinet. 2. Remove battery insulation strip. (First time use only) BATTERY... - Page 5 Issue date: 05/02/2020 3. Or replace new battery with a slot screwdriver and push down the metal spring then remove battery. 4. Replace with a new 3V CR1632 battery. Gently tilt battery at an angle towards the metal spring and with some force push down the battery making sure the positive symbol is facing upwards.
- Page 6 Issue date: 05/02/2020 5. Slide battery cabinet upwards to complete. LITHIUM BATTERY CAUTION: Risk of Explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the environment protection rules. BATTERY...
-
Page 7: Mounting On Surface
Issue date: 05/02/2020 4. Mounting On Surface Entry sensor has 2 ways of mounting onto flat surface and magnet has no position restrictions. It can be either on the left or right of the sensor or up and down depending where the entry sensor is used. However, we recommend mounting the sensor on the frame to protect the electronics from heavy vibrations. - Page 8 Issue date: 05/02/2020 Position of the sensor and the magnet. The sensor and the magnet should be mounted on the door or window no further than 5mm away between each other. 2 methods of mounting. Method 1. With 3M double sided adhesive tape enclosed in the accessory pack. Method 2.
- Page 9 Issue date: 05/02/2020 2. Remove magnet cover. Make sure the arrow is facing down and using a little force push downwards and lift up the magnet cover. 3. With both the arrows facing up, mount battery cabinet and magnet cover on flat surface with cross head screwdriver.
- Page 10 Issue date: 05/02/2020 5. On a slight angle tilt the magnet and push down onto the cover making sure a ‘click’ sound is heard. 6. To remove sensor and magnet after mounting, simply push upwards with a little force. MOUNTING ON SURFACE...
-
Page 11: Pairing / Un-Pairing Device
Issue date: 05/02/2020 5. Pairing / Un-pairing Device AIRING AIRING Refer to the relevant receiver operation manual that you wish to control for detailed pairing / un-pairing procedure. With the receiver that you intent to use, enter into “Learning Mode” 2 Methods of pairing / un-pairing: Method 1. - Page 12 Issue date: 05/02/2020 Method 2. Function switch to ON position. (LED on module will flash once) Delay timer must be position in ‘0’ minute. To Pair: Separate magnet and sensor to trigger ‘ON’ signal. To Un-Pair: Close magnet and sensor to trigger ‘OFF’ signal. PAIRING / UN-PARING DEVICE...
- Page 13 Issue date: 05/02/2020 Function switch to OFF position. (LED on module will flash twice) To Pair: Close magnet and sensor to trigger ‘ON’ signal. To Un-Pair: Separate magnet and sensor to trigger ‘OFF’ signal. PAIRING / UN-PARING DEVICE...
-
Page 14: Delay Off Timer Setup
Issue date: 05/02/2020 6. Delay Off Timer Setup You may choose the entry sensor to operate normally as an ON/OFF trigger or have the extra benefit to set up delay off timer. Factory pre-setting will be at ‘0’ minute position. Set up delay off timer: •... - Page 15 Issue date: 05/02/2020 Timer operation to ‘ON’ operation. (LED on module will flash once) 1. Separate magnetic sensor will trigger ON signal to receiver device and timer will start to count down, once it reaches 0 minute the sensor will send OFF signal to the receiver device.
- Page 16 Issue date: 05/02/2020 Timer operation to ‘OFF’ position. (LED on module will flash twice) 1. Close magnetic sensor will trigger ON signal to receiver device and timer will start to count down, once it reaches 0 minute the sensor will send OFF signal to the receiver device.
-
Page 17: Operation
Issue date: 05/02/2020 7. Operation Function switch to ON position. Trigger ON: Separate magnet and sensor to trigger ‘ON’ signal. Trigger OFF: Close magnet and sensor to trigger ‘OFF’ signal OPERATION... - Page 18 Issue date: 05/02/2020 Function switch to OFF position. Trigger ON: Close magnet and sensor to trigger ‘ON’ signal. Trigger OFF: Separate magnet and sensor to trigger ‘OFF’ signal. OPERATION...
-
Page 19: Specifications
Issue date: 05/02/2020 8. Specifications Battery: 3V CR1632 Lithium Cell Battery Radio Frequency: 433.92MHz 1W Power consumption: ºC Environment Temperature: 0-50 Range: Up to 50 m indoors (Depends on building materials) In accordance with: Low Voltage Directive 2014/35/EU RED Directive 2014/53/EU CE Certification: The CE marked affixed to this product confirms Its complaisance with the European Directives...
