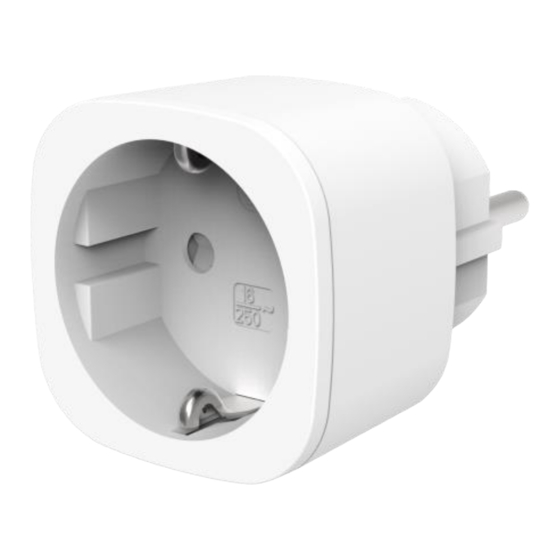

- Page 1 Issue Date: 30/09/21 WIRELESS MINI DIMMER SOCKET SWITCH PLUG MYCR-100A CONTENTS 1. Overview and features Page 2. 2. Pairing / Un-pairing device Page 3. 3. Minimum brightness setup Page 8. 4. Specifications Page 9.
- Page 2 • Minimum brightness setup for different kinds of dimmer loads. • 32 memories, first in first out storage maintain. • Memory of last brightness level. • Scene status memory, create your desired atmosphere. Not compatible to: ARC Code switch system product range OVERVIEW AND FEATURES...
- Page 3 Issue Date: 30/09/21 2. Pairing / Un-pairing Device AIRING Pairing using LEARNING MODE: 1. Plug in lamp / electronic device into socket switch then socket switch into an electrical outlet 2. Within 6 seconds, on the remote control press the ‘ON’ button intend to be paired;...
- Page 4 Issue Date: 30/09/21 AIRING Removing single Device: 1. Unplug socket switch from the electrical outlet for at least 6 seconds. 2. Plug socket switch back into electrical outlet. PAIRING / UN-PARING DEVICE...
- Page 5 Issue Date: 30/09/21 3. Within 6 seconds, on the remote control press the ‘OFF’ button intend to be un-paired; load will flash twice to confirm that the remote control is un-paired. PAIRING / UN-PARING DEVICE...
- Page 6 Issue Date: 30/09/21 LEARING EMORY Removing all memory stored in the socket switch. 1. Unplug socket switch from the electrical outlet for at least 6 seconds. 2. Plug socket switch back into electrical outlet. PAIRING / UN-PARING DEVICE...
- Page 7 Issue Date: 30/09/21 3. Within 6 seconds, on the remote control press the ‘ALL OFF / GROUP ALL’ button; load will flash twice to confirm all memory stored inside the socket switch has been deleted. PAIRING / UN-PARING DEVICE...
- Page 8 Issue Date: 30/09/21 3. Minimum Brightness Level Setup Socket switch has the ability to setup minimum brightness level. There are total 4 level brightness to choose from. To adjust the brightness level, please follow below setup. With a remote control (LYCT-505) 1.
- Page 9 Issue Date: 30/09/21 4. Specifications Input Rating: 230V~50Hz Output Rating: 100W Max. (Resistive Load) 100W Max. (Incandescent and halogen lamps) 50W Max. (Dimmable energy saving lamps) 50W Max. (Dimmable LED) Radio Frequency: 433.92MHz 1W Power consumption: ºC Environment Temperature: 0-40 Range: up to 50 m indoors (Depends on building materials)
