ARC MYCR-3500 Manual

Wireless mini socket switch plug
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Table of Contents

Issue Date: 05/02/2020

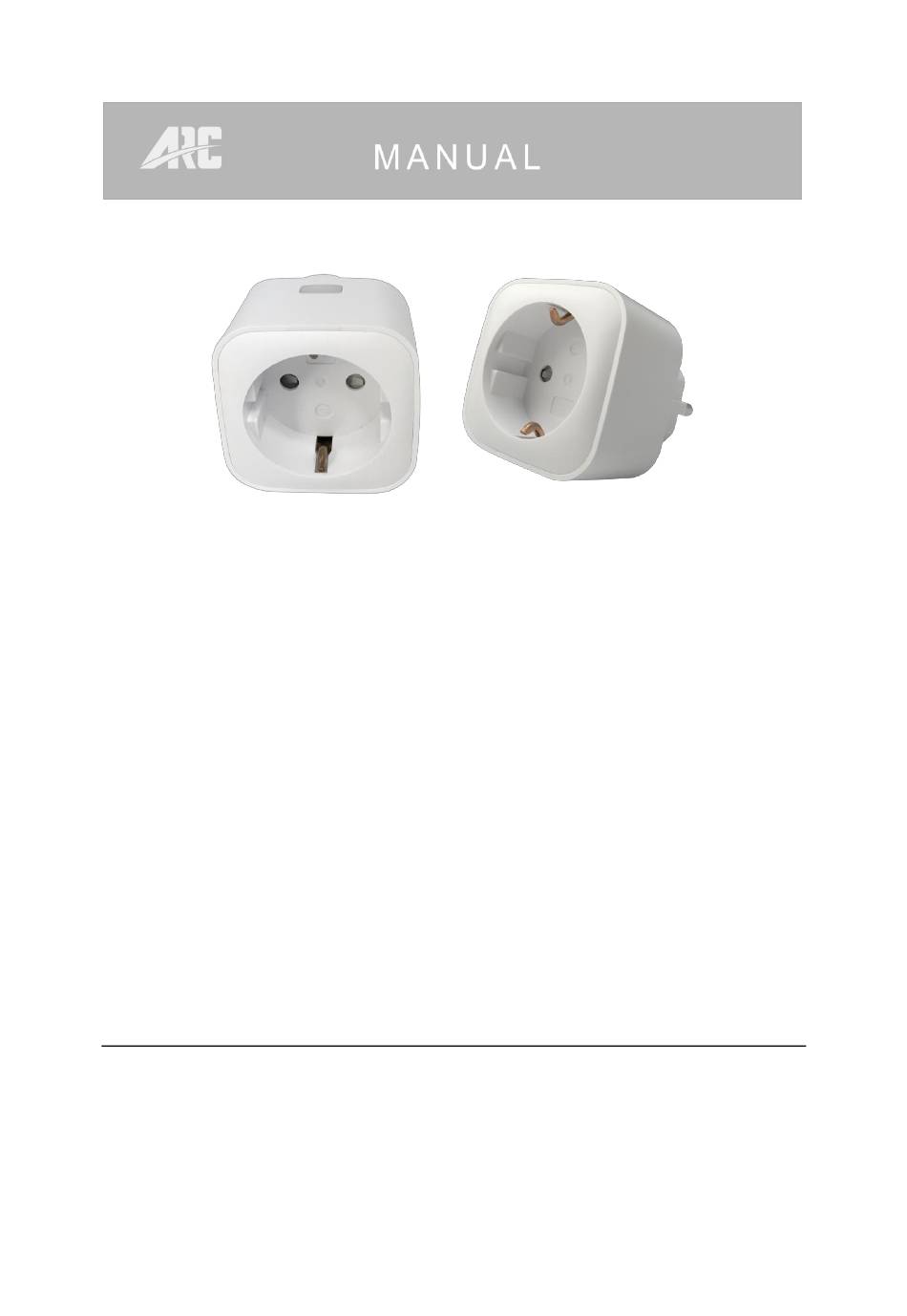

SOCKET SWITCH PLUG
CONTENTS
WIRELESS MINI
MYCR-3500
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MYCR-3500 and is the answer not in the manual?

Questions and answers

Related Manuals for ARC MYCR-3500

Summary of Contents for ARC MYCR-3500

  • Page 1: Table Of Contents

    Issue Date: 05/02/2020 WIRELESS MINI SOCKET SWITCH PLUG MYCR-3500 CONTENTS 1. Overview and features Page 2. 2. Diagrams Page 3. 3. Pairing / Un-pairing device Page 4. 4. Operation Page 8. 5. Specifications Page 9.

  • Page 2: Overview And Features

    • Intuitive, easy set up. Easy to use. • 32 memories, first in first out storage maintain. • Scene status memory, create your desired atmosphere. • Built-in manual On & Off button with LED indication. Not compatible to: ARC Code switch system product range OVERVIEW AND FEATURES...

  • Page 3: Diagrams

    Issue Date: 05/02/2020 2. Diagrams Notes for the diagrams: DIAGRAMS...

  • Page 4: Pairing / Un-Pairing Device

    Issue Date: 05/02/2020 3. Pairing / Un-pairing Device AIRING Pairing using LEARNING MODE: 1. Plug in lamp / electronic device into socket switch. 2. Plug the socket switch into an electrical outlet. PAIRING / UN-PARING DEVICE...
  • Page 5 Issue Date: 05/02/2020 3. Within 6 seconds, on the remote control press the ‘ON’ button intend to be paired; LED on socket switch will quick flash and load will flash twice to confirm that the remote control is now paired. NOTE: If no signal is received from a remote control within 6 seconds then the socket switch will automatically exit learning mode without pairing the device.
  • Page 6 Issue Date: 05/02/2020 AIRING Removing single Device: 1. Unplug socket switch from the electrical outlet for at least 6 seconds. 2. Plug socket switch back into electrical outlet. 3. Within 6 seconds, on the remote control press the ‘OFF’ button intend to be un-paired;...
  • Page 7 Issue Date: 05/02/2020 LEARING EMORY Removing all memory stored in the socket switch. 1. Unplug socket switch from the electrical outlet for at least 6 seconds. 2. Plug socket switch back into electrical outlet. 3. Within 6 seconds, on the remote control press the ‘ALL OFF / GROUP ALL’ button;...

  • Page 8: Operation

    Issue Date: 05/02/2020 4. Operation Socket switch is compatible to “Self Learning” system and M series remote control. Please refer to the relevant user guide for detailed operation. Manual ON & Manual OFF Turn the load ON: Press the ‘ON/OFF’ button once, LED on socket switch will flash once. Turn the load OFF: Press the ‘ON/OFF’...

  • Page 9: Specifications

    Issue Date: 05/02/2020 5. Specifications Input Rating: 230V~50Hz Output Rating: 3500W (Resistive Load) Radio Frequency: 433.92MHz 1W Power consumption: ºC Environment Temperature: 0-40 Range: up to 50 m indoors (Depends on building materials) In accordance with: Low Voltage Directive 2014/35/EU RED Directive 2014/53/EU CE Certification: The CE marked affixed to this product confirms...
