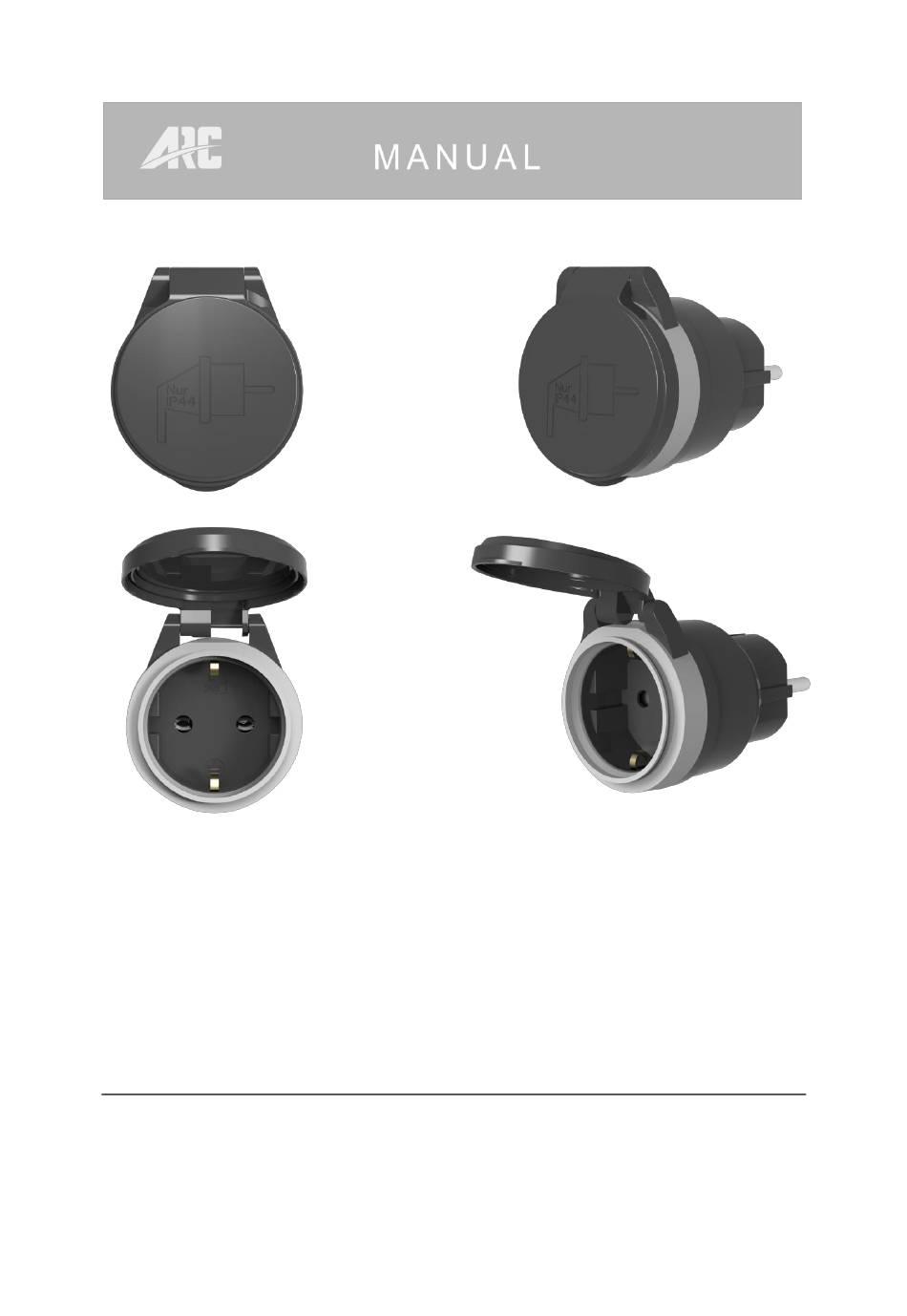

- Page 1 Issue Date: 18/12/2019 WIRELESS IP44 OUTDOOR SOCKET PLUG MGDR-3500 CONTENTS 1. Overview and features Page 2. 2. Pairing / Un-pairing device Page 3. 3. Specifications Page 6.
- Page 2 • Plugs into any regular electrical wall outlet. • Intuitive, easy set up. Easy to use. • 32 memories, first in first out storage maintain. • Scene status memory, create your desired atmosphere. Not compatible to: ARC Code switch system product range OVERVIEW AND FEATURES...
- Page 3 Issue Date: 18/12/2019 2. Pairing / Un-pairing Device AIRING Pairing using LEARNING MODE: 1. Flip open the cover. 2. Plug in lamp / electronic device into socket then into an electrical outlet. 3. Within 6 seconds, on the remote control press the ‘ON’ button intend to be paired;...
- Page 4 Issue Date: 18/12/2019 AIRING Removing single Device: 1. Unplug socket from the electrical outlet for at least 6 seconds. 2. Plug socket back into electrical outlet. 3. Within 6 seconds, on the remote control press the ‘OFF’ button intend to be un-paired;...
- Page 5 Issue Date: 18/12/2019 LEARING EMORY Removing all memory stored in the socket. 1. Unplug socket from the electrical outlet for at least 6 seconds. 2. Plug socket back into electrical outlet. 3. Within 6 seconds, on the remote control press the ‘ALL OFF / GROUP ALL’ button;...
- Page 6 Issue Date: 18/12/2019 3. Specifications Input Rating: 230V~50Hz Output Rating: 3500W (Resistive Load) Radio Frequency: 433.92MHz 1W Power consumption: ºC Environment Temperature: 0-40 Range: Up to 50 m indoors / outdoors (Depends on building materials) In accordance with: Low Voltage Directive 2014/35/EU RED Directive 2014/53/EU CE Certification: The CE marked affixed to this product confirms...
