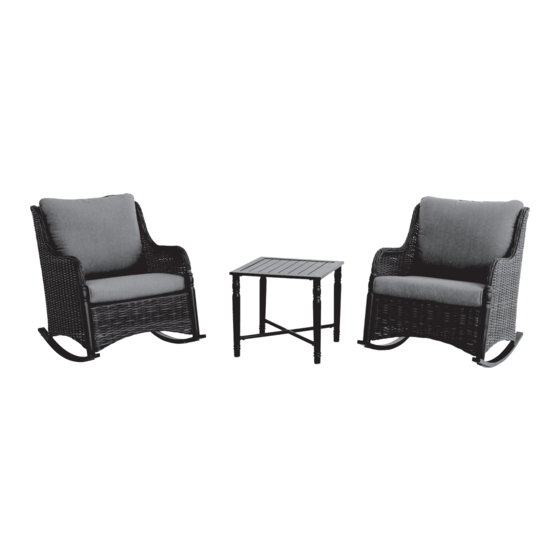

- Page 1 ASSEMBLY INSTRUCTION ITEM#: H21GS193VB SKU#: 810589127 P E M B R O K E 3 P C R O C K E R & T A B L E S E T 1 (877) 800 – 6021 Need help? We are here for you! •...
- Page 2 GENERAL BEST PRACTICES FOR ASSEMBLY: To Ensure Alignment & Easy Assembly, Secure All Bolts & Washers In Place Before Fully Tightening Read all instructions before starting Clear a flat covered space to begin assembly Always best to do it with a friend Note that hardware required is provided for every step Pay attention to orientation Letter of the part corresponds to a sticker on the product...
- Page 3 HRVS953G PARTS LIST PART PART MATERIAL CODE PART Q’TY MATERIAL CODE PART Q’TY HRVS953G-BG LS-M6-30 BACK ASSEMBLY BOLT M6*30 HRVS953G-ZG LS-M6-40 SEAT ASSEMBLY BOLT M6*40 HRVS953G-ZSB DP-d6.5-D13 LEFT ARM WASHER d6.5*D13*1.0 HRVS953G-YSB HRVS953G-BM RIGHT ARM BACK CUSHION LS-M6-15 HRVS953G-ZM BOLT M6*15 SEAT CUSHION Tools Ⅱ...
- Page 4 STEP 2 PARTS REQUIRED: 1, 2, 3, 4, 5, 7, & 8 Keep the bolts loose. STEP 3 PARTS REQUIRED: 1, 3, 4, 5, & 8 Tighten all bolts by using the supplied Hex key. PAGE 3 OF 7...
- Page 5 STEP 4 PARTS REQUIRED: 9 & 10 PAGE 4 OF 7...
- Page 6 HTMS20LQ PARTS LIST PART MATERIAL CODE PART Q’TY HTMS20LQ-ZJ SUPPORT LS-M6-15 HTMS20LQ-ZM BOLT M6*15 TABLE TOP DP-d6.5-D13 HTMS20LQ-JG WASHER d6.5*D13*1.0 STEP 1 PARTS REQUIRED: 1, 2, 3, 4, & 5 Keep the bolts loose. PAGE 5 OF 7...
- Page 7 STEP 2 PARTS REQUIRED: 1, 2, 3, 4, & 5 Tighten all bolts by using the supplied Hex key. STEP 3 Warranty • One–year limited warranty. • Proof of purchase (dated register receipt) is required for warranty claims. • It remains the customer’ s responsibility for freight and packing charges to and from the service center. PAGE 6 OF 7...
- Page 8 STOP! Missing A Part? No Need To Go Back To The Store The store where you made your purchase does not stock parts for this item. If you need parts, whether they are missing or damaged, Call Toll Free: TEL: 1-877-800-6021 Call us between 9:00 AM and 4:30 PM Eastern Time Monday through Friday For further assistance, please visit us at service@hcipatio.com PAGE 7 OF 7...
