Summary of Contents for Broyhill YORKTOWN H21SQ608V2-1-rev

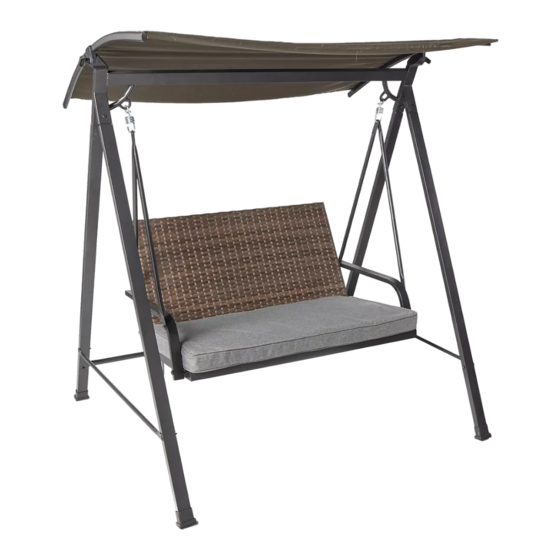

- Page 1 ASSEMBLY INSTRUCTION ITEM#: H21SQ608V2-1-rev SKU#: 810589087 Y O R K T O W N R E S I N W I C K E R 2 S E A T E R C U S H I O N S W I N G - B R O W N W I C K E R 1 (877) 800 –...
-
Page 2: Maintenance
GENERAL BEST PRACTICES FOR ASSEMBLY: To Ensure Alignment & Easy Assembly, Secure All Bolts & Washers In Place Before Fully Tightening Read all instructions before starting Clear a flat covered space to begin assembly Always best to do it with a friend Note that hardware required is provided for every step Pay attention to orientation Letter of the part corresponds to a sticker on the product... -
Page 3: Parts List
A. Read the instructions thoroughly. Acquaint yourself with the inventory of parts and the accompanying drawings to ensure safe and proper assembly. B. You will need the following tools: - Phillips Screwdriver C. Lay out all of the parts on a flat surface and identify them using the table below. PARTS LIST PART PART... - Page 4 STEP 1 PARTS REQUIRED: 1, 2, 3, 13, 17, & 18 Keep the bolts loose. Do the same procedure for both sides. STEP 2 PARTS REQUIRED: 2, 3, 4, 12, 17, & 18 Keep the bolts loose. Repeat the same procedure for both sides. PAGE 3 OF 8...
- Page 5 STEP 3 PARTS REQUIRED: 3, 5, 13, 17, & 18 Tighten all bolts by using the supplied Hex key. Step 4 STEP 4 PARTS REQUIRED: 2, 3, & 10 Step 5 PAGE 4 OF 8...
- Page 6 STEP 5 PARTS REQUIRED: 6, 7, 8, 11, 12, 14, 16, 17, & 18 Tighten all bolts by using the supplied Hex key. STEP 6 PARTS REQUIRED: 7 & 9 PAGE 5 OF 8...
- Page 7 STEP 7 Warning: PARTS REQUIRED: 1 & 9 Make sure that both ends of the suspension Repeat the same procedure for both sides. springs (#9) go completely through the holes in the top cross beam w/adjustable teeth (#1) and the swing arm tubes (#7). STEP 8 PARTS REQUIRED: 15, 19, &...
-
Page 8: Parts Required
STEP 9 PARTS REQUIRED: 1, 19, & 20 Repeat this procedure for both sides. STEP 10 PARTS REQUIRED: 22 Warning: To assure stability, double check that all of the To avoid danger of suffocation, keep plastic bolts have been completely tightened. bags or small parts away from babies and children. - Page 9 STOP! Missing A Part? No Need To Go Back To The Store The store where you made your purchase does not stock parts for this item. If you need parts, whether they are missing or damaged, Call Toll Free: TEL: 1-877-800-6021 Call us between 9:00 AM and 4:30 PM Eastern Time Monday through Friday For further assistance, please visit us at service@hcipatio.com PAGE 8 OF 8...
