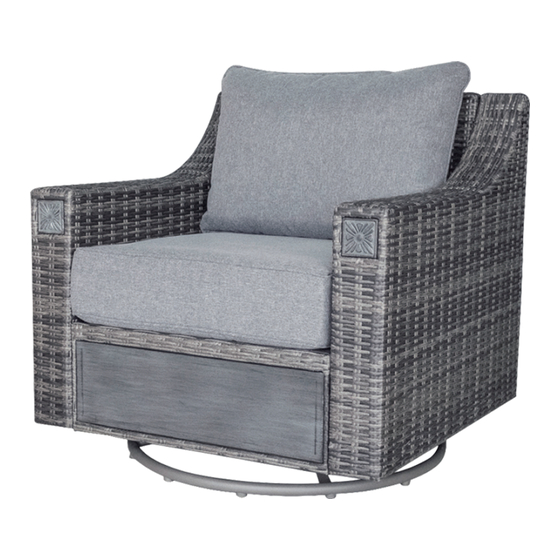

- Page 1 ASSEMBLY INSTRUCTION ITEM#: H21GR018VG-1 SKU#: 810554606 S A N D P O I N T E S W I V E L G L I D E R - L I G H T E R C O L O R 1 (877) 800 –...
-
Page 2: Maintenance
GENERAL BEST PRACTICES FOR ASSEMBLY: To Ensure Alignment & Easy Assembly, Secure All Bolts & Washers In Place Before Fully Tightening Read all instructions before starting Clear a flat covered space to begin assembly Always best to do it with a friend Note that hardware required is provided for every step Pay attention to orientation Letter of the part corresponds to a sticker on the product... -
Page 3: Parts List
PARTS LIST PART MATERIAL CODE PART Q’TY LS-M6-15 BOLT M6*15 H21GR018VG-1-BG LS-M6-35 BACK ASSEMBLY BOLT M6*35 H21GR018VG-1-ZG LS-M6-45 SEAT ASSEMBLY BOLT M6*45 H21GR018VG-1-ZSB LS-M6-50 BOLT M6*50 LEFT ARM H21GR018VG-1-YSB DP-d6.5-D13 RIGHT ARM WASHER d6.5*D13*1.0 H21GR018VG-1-DG DP-d6.5-D30 SUPPORT FRAME WASHER d6.5*D30*2.0 H21GR018VG-1-ZJ DP-d8.5-D17 WASHER d8.5*D17*1.6... - Page 4 STEP 1 PARTS REQUIRED: 4, 9, 10, 17, & 18 Keep the bolts loose. STEP 2 PARTS REQUIRED: 3, 9, 10, 17, & 18 Keep the bolts loose. PAGE 3 OF 8...
- Page 5 STEP 3 PARTS REQUIRED: 1, 2, 14, 15, & 19 Keep the bolts loose. STEP 4 PARTS REQUIRED: 1, 3, 4, 14, 15, & 19 Keep the bolts loose. Note: The labels marked “L” and “R” on the arms (#3 and #4) should coincide with Step 4 to ensure proper assembly.
- Page 6 STEP 5 PARTS REQUIRED: 2, 3, 4,13, 15, & 19 Keep the bolts loose. STEP 6 PARTS REQUIRED: 5, 9, 10, 17, & 18 Keep the bolts loose. PAGE 5 OF 8...
- Page 7 STEP 7 PARTS REQUIRED: 5, 6, 11, & 15 Tighten all bolts by using the supplied Hex key. STEP 8 PARTS REQUIRED: 7 & 8 PAGE 6 OF 8...
- Page 8 STEP 9 PARTS REQUIRED: 6, 8, 12, & 16 Note: For ease with installation, we recommend that the seat post (#6) be slightly olied or waxed before fastening it to the base assembly (#8). STEP 10 Caution: PARTS REQUIRED: 20 & 21 To ensure one’s safety during use of this swivel glider, make sure that all of the bolts are completely tightened.
- Page 9 STOP! Missing A Part? No Need To Go Back To The Store The store where you made your purchase does not stock parts for this item. If you need parts, whether they are missing or damaged, Call Toll Free: TEL: 1-877-800-6021 Call us between 9:00 AM and 4:30 PM Eastern Time Monday through Friday For further assistance, please visit us at service@hcipatio.com PAGE 8 OF 8...
