E2S D105AX Instruction Manual page 8

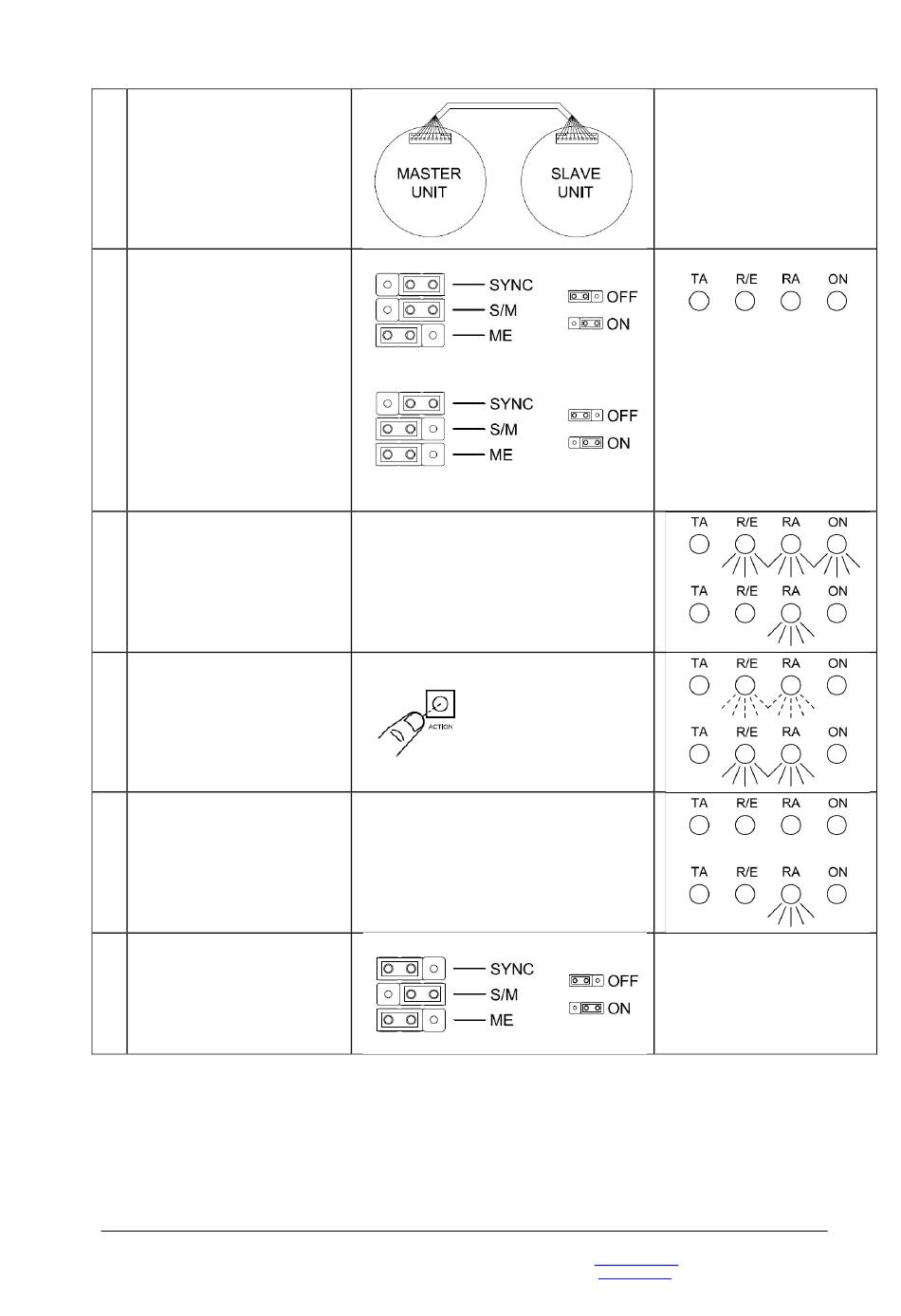

Connect Synch cable to
1
Master and Slave PCB
Set 1 off Units as Master
and 1 off Unit as Slave
Set jumper J6 to Sync on
Set jumper J5 S/M on
Master unit to master
position (on)
2
Set jumper J5 S/M on
Slave unit to slave
position (off)
Position of S2 switch
does not affect synch
operation.
Switch on power onto the
Master unit first
3
Then switch power onto
the Slave unit
Press action button on the
4a Master Unit:
Synchronisation will begin
- - - - Synchronisation
complete
4b
Switch off Power to units
Reset on both units
jumper J6 to Sync off
5
Set jumper J5 S/M on
both units to Master
position (on)
European Safety Systems Ltd.
Document No. D172-00-051-IS_Issue_B
Impress House, Mansell Road, Acton, London W3 7QH
16-11-22
Sheet 8 of 9
Master Unit
Slave Unit
Master Unit
Slave Unit
Master Unit
Slave Unit
