E2S D105AX Instruction Manual page 3

S2 - Set-up
Jumper
7) Appello Setup Guide
The following guide is designed to get the user quickly interfacing with the Appello unit.
•
The Appello unit can be set-up to either play an attention seeking tone and then a recorded
message or just play the recorded message.
•
The user can:
o
Record on each of the 4 stages using either the Line In or Microphone inputs
o
Select the required alarm tone
o
Delete unwanted messages.
•
To re-record a message on a particular stage, the previous message on that stage must be
deleted first.
•
Once the user has configured the unit, it must be put into it's Playback Mode and S2 switches
set to stage 1, as shown in Quick Ref - Playback Mode (Stage 1 illustrated) guide below.
•
The "Mass Erase" function will erase all the recorded stages.
•
The "Mass Erase" can also be used to reset the unit if any functionality is
lost.
European Safety Systems Ltd.
Document No. D172-00-051-IS_Issue_B
S4 - Tones
Alarm Tone & (Voice) Recorded Content
Volume Controls
Impress House, Mansell Road, Acton, London W3 7QH
16-11-22
Sheet 3 of 9

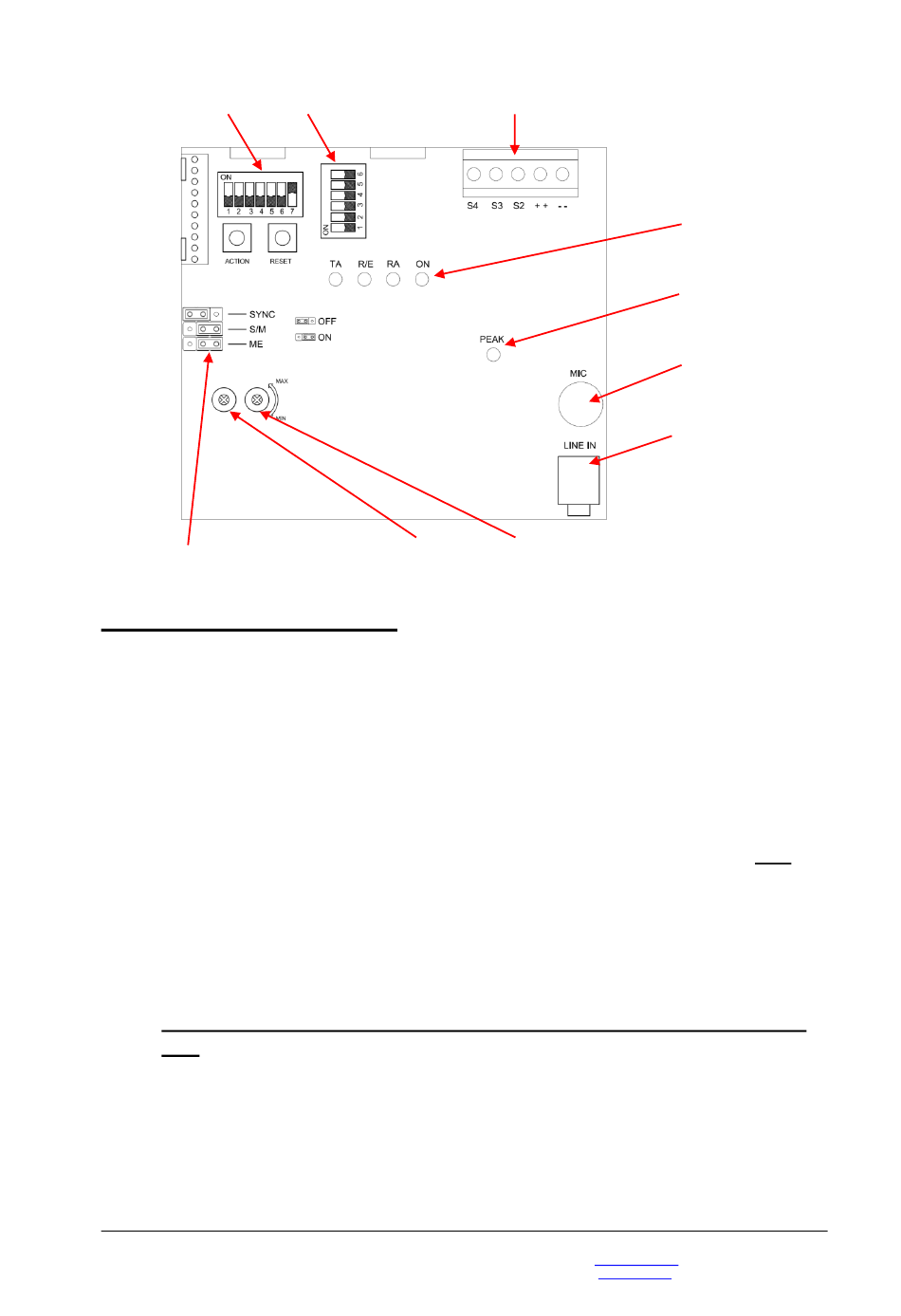

Power & Alarm Stage Terminal
