INSTALLATION GUIDE
ENGLISH
v1.0
Kod: ARAS450

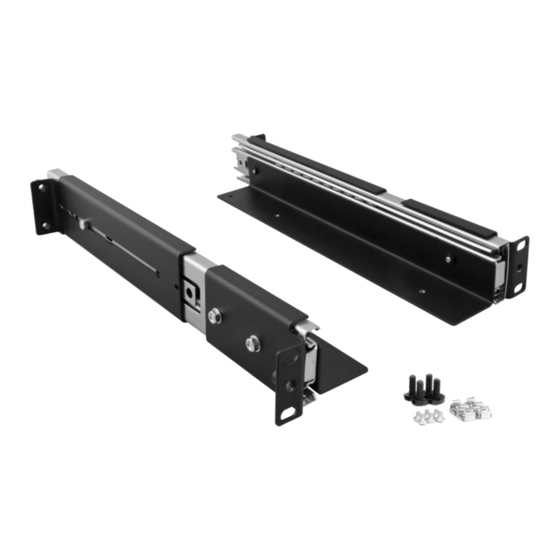

Name: ARAD rails dedicated for RACK19"
cabinets - 450mm depth
IM ARAS450
Edition: 2 from 09.09.2022
Supersedes edition: 1 from 30.01.2017
EN
1. Intended use:
The ARAS450 rail is intended for mounting RACK enclosures, type: ARAD2S/ ARAD3S/ ARAD4S in a 450mm deep
RACK 19" cabinet.
2. Specifications.
SPECIFICATIONS
Mounting dimensions:
H=1U, D=262÷388 [mm, +/-2]
Net/gross weight:
1,65 / 1,80 [kg]
- sheet metal DC01, 1mm thick, RAL9005
Materials:
- sliding rails – fully extendable
Static load:
30kg
- four-point butt mounting to RACK profiles + supported on front and rear RACK profiles
- 4 M6 screws + cage nuts included
Notes:
- 4 M4 screws included – to bolt the RACK enclosure
Use:
inside
Warranty:
2 years from production date
