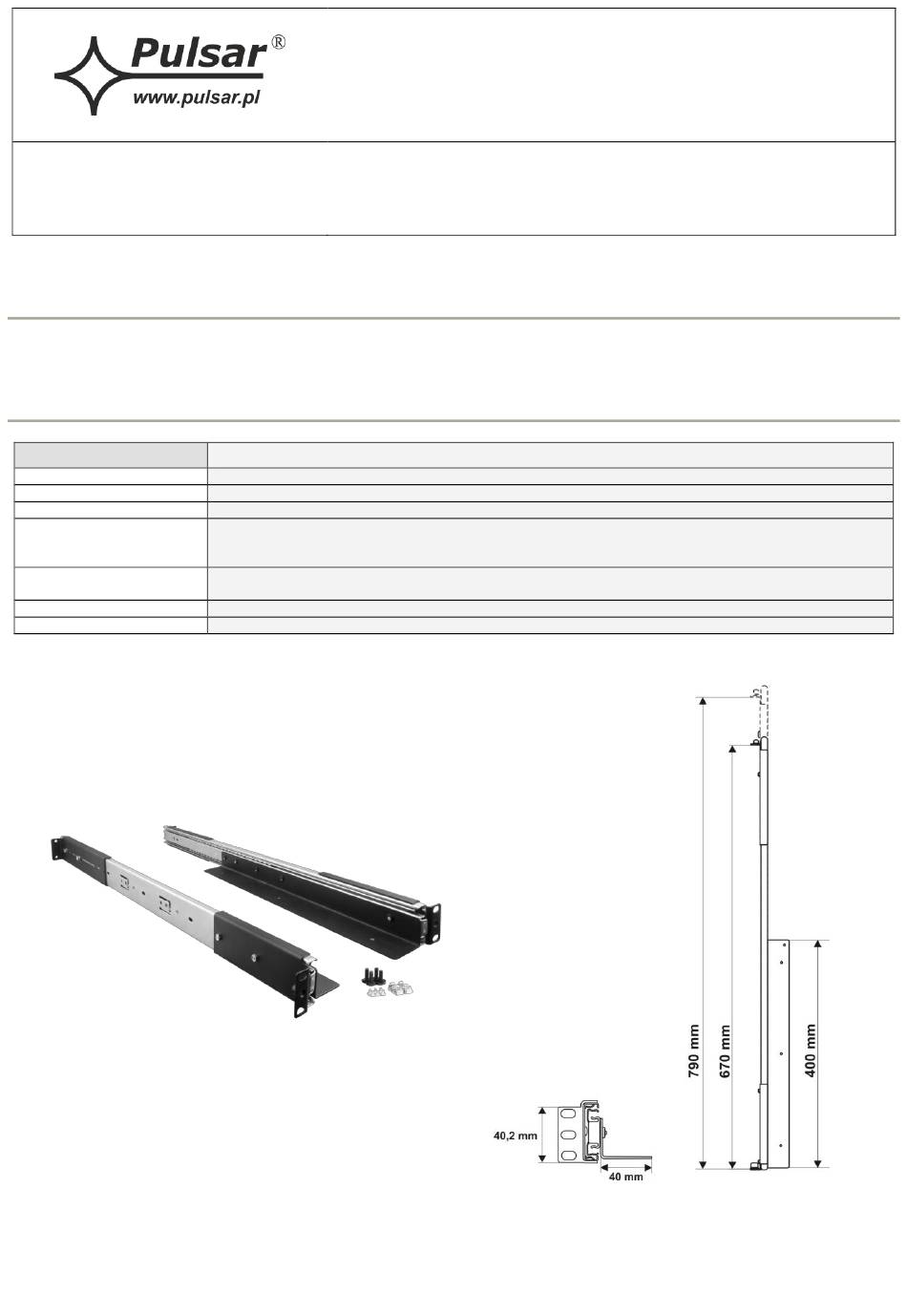

INSTALLATION GUIDE
ENGLISH
v1.2
Kod: ARAS1000
Name: ARAD rails dedicated for RACK 19"
cabinets - 1000mm depth
IM ARAS1000
Edition: 5 from 09.09.2022
Supersedes edition: 4 from 30.01.2017
EN
1. Intended use:

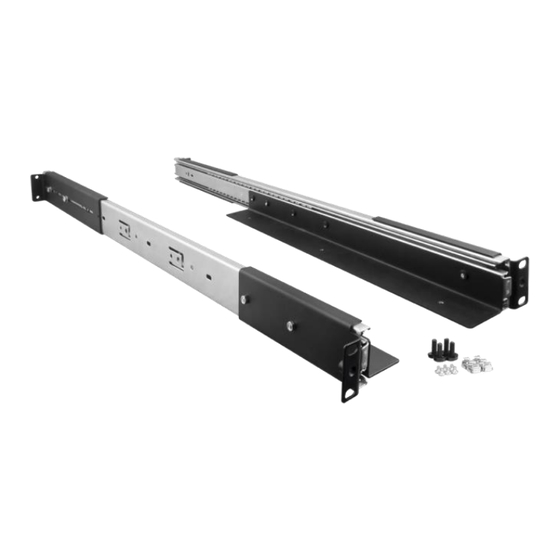

The ARAS1000 rail is intended for mounting RACK enclosures, type: ARAD2/ ARAD3/ ARAD4 in a 800mm deep
RACK 19" cabinet.
2. Specifications.
SPECIFICATIONS
Mounting dimensions:
H=1U, D=670÷790 [mm, +/-2]
Net / gross weight:
3,15 / 3,36 [kg]
Static load:
30kg
- four-point butt mounting to RACK profiles + supported on front and rear RACK profiles
Notes:
- 4 M6 screws + cage nuts included
- 6 M4 screws included – to bolt the RACK enclosure
- sheet metal DC01, 1mm thick, RAL9005
Materials:
- sliding rails – fully extendable
Use:
inside
Declarations, warranty:
CE, 2 year from the production date
