Pulsar ARAS800 Installation Manual

Pulsar ARAS800 Installation Manual

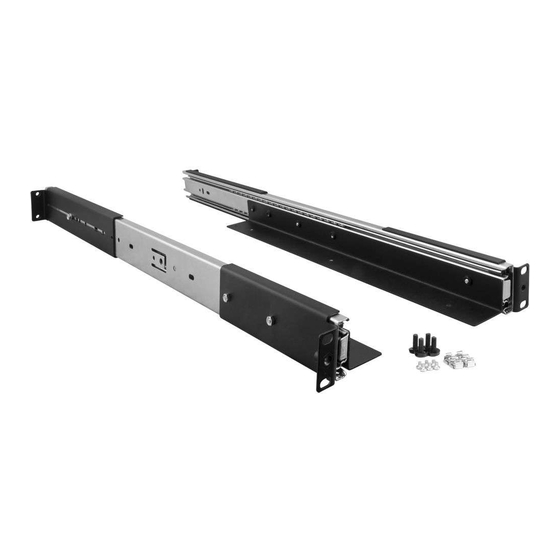

Arad rails dedicated for rack19" cabinets-800mm depth

Advertisement

1. Intended use:

The ARAS800 rail is intended for mounting RACK enclosures, type: ARAD2/ ARAD3/ ARAD4 in a 800mm deep
RACK 19" cabinet.

2. Specifications.

SPECIFICATIONS
Mounting dimensions:
Net / gross weight:
Static load:
Notes:
Materials:
Use:
Declarations, warranty:
Name: ARAD rails dedicated for RACK19"
- four-point butt mounting to RACK profiles + supported on front and rear RACK profiles
- 6 M4 screws included – to bolt the RACK enclosure
- sheet metal DC01, 1mm thick, RAL9005
INSTALLATION GUIDE
ENGLISH
Code: ARAS800
cabinets - 800mm depth
H=1U, D=512÷703 [mm, +/-2]
2,84 / 2,97 [kg]
30kg
- 4 M6 screws + cage nuts included
- sliding rails – fully extendable
inside
CE, 2 year from the production date
IM ARAS800
Edition: 4 from 30.01.2017
Supersedes: 3 from 07.12.2015
EN
