Pulsar IMARAD2SN Mounting Instructions

1. Destination:
Due to its design, the ARAD2SN enclosure is intended for mounting inside RACK 19" cabinets, with depths of 450mm,
19" standard. This general-purpose enclosure may serve as an auxiliary element for integrating CCTV, AC, I&HAS, RTV, LAN
systems in RACK 19" cabinets. It is intended for mounting:
 control panel and optionally additional modules
 access control controllers with optional modules

other dedicated devices
power supply units

battery

2. Specifications:
Table 1. Electrical parameters.
Tamper switch protection
Protection class EN 62368-1
Rated current of protective connection
Declarations, warranty
Table 2. Mechanical parameters.
Mounting dimensions
Enclosure dimensions
Mounting plate
Recomended battery/batteries
Material
Closing
Destination
Net/gross weight
Notes
Table 3. Operating parameters.
Protection grade EN60529
Operating temperature
Storage temperature
Relative humidity
Sinusoidal vibrations during operation
Impulse waves during operation
Direct insolation
Vibrations and impulse waves during
transport
MOUNTING ISTRUCTIONS

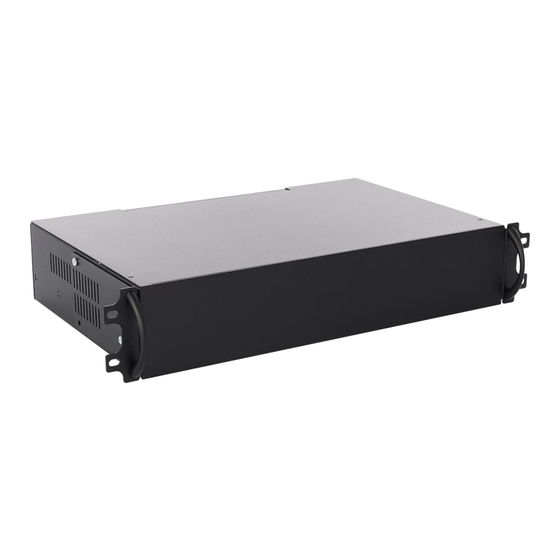

Name: RACK 2U/270mm universal enclosure
for RACK 19" cabinets
Metallic enclosure for RACK cabinet: CCTV, KD, SSWiN, RTV, LAN
1 x microswitch:
enclosure opening 0,5 A; 50 V DC max. NC – normally closed contacts
W=415, H=87, D=270 [+/-2 mm]
W=368, H=228 [+/-2 mm]
17 Ah / 12 V (SLA)
Sheet metal DC01, thick: 1 mm
Protection anticorrosion
Color: RAL 9005 - black
front mounting, 4 M6 screws + cage nuts included
possible mount by using ARAS...N rails – additional accessory
20%...90%, without condensation
According to PN-83/T-42106
V1.0
Code: ARAD2SN
IMARAD2SN
Edition
I (first)
6 A max
CE, 2 years
W=19", H=2U
Bolted: 2x M3
Inside
3.9 / 4.1 [kg]
IP20
-10ºC ...+40ºC
-20ºC ...+60ºC
unacceptable
: 1 from 01.12.2023
