Premio OSS224-UN Quick Start Manual

Thank you for your purchase of Premio OSS224-UN Storage Server System!
1.
Check the Content
your package contains the following:
# Description
1 OSS224-UN
Enclosure
2 Motherboard
3 CPU and memory
4 IO Cards
5 Heatsink
6 2x 2.5" Drive Bay
7 Slide Rail Kit + Screws
8 Power Cable*
9 Serial Cable*
* Inside the accessories box. Box may consist of screw sets for rail kit or
drives. If any items are missing, please contact your reseller or sales rep.
2.

Get Familiar with the Unit.

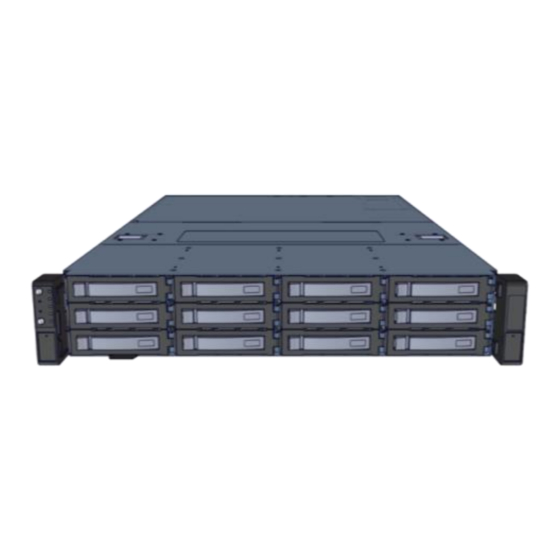

OSS224-UN is a storage server supporting single AMD EPYC
processor and front tray-less 24x 2.5" HDDs, an optional rear
2x 2.5" OS drive and 7x low profile PCIe slots in a 2U space.
Gigabyte MZ31-AR0 and internal cabling are preinstalled.
Other motherboard model, IO cards, CPU, and memory can
be preinstalled upon request.
Front view of the unit
Rear view of the unit
Installation and service of this product should be conducted by a trained
personnel to avoid bodily injury from electric shock or heavy object
OSS224-UN Quick Guide
Version 1.00 – 2017.10.23
of the box. Please confirm that
Image / Description
Gigabyte MZ31-AR0
AMD EPYC and DDR4
3.

Remove the Top Covers

Qty
1
1
Opt.
Opt.
2
Opt.
1 set
2
3. Remove two screws (red circles)
1
4. Slide the motherboard cover backwards to remove
4.

Inspect the Inside

comprise of a Gigabyte motherboard, an expander board (to
IO cards), an optional rear 2x 2.5" bay, 3x system fan modules
and 2x IO card fan modules (all attached to the motherboard).
See two options below to install OS disks.
Observe ESD (Electrostatic Discharge) practices during integration to avoid
possible damage to the board and / or other components
of the unit as follows:
1. Push the latches inwards
2. Flip the cover outwards to remove
of the unit. Internal components
