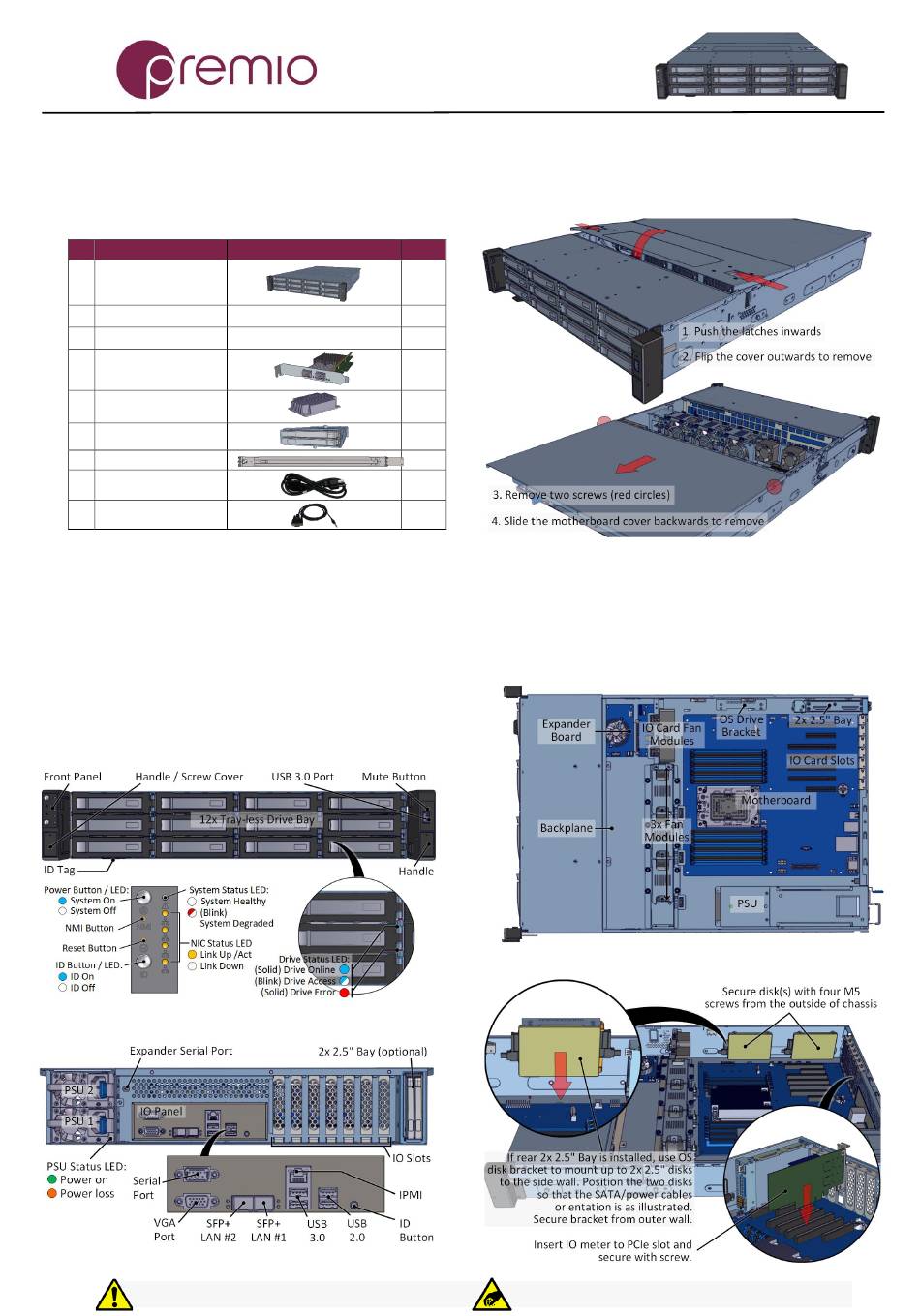

Premio OSS212L-UN Quick Start Manual

Thank you for your purchase of Premio OSS212L-UN Storage Server System!
1.
Check the Content
your package contains the following:
# Description
1 OSS212L-UN
Enclosure
2 Motherboard
3 CPU and memory
4 IO Cards
5 Heatsink
6 2x 2.5" Drive Bay
7 Slide Rail Kit + Screws
8 Power Cable*
9 Serial Cable*
* Inside the accessories box. Box may consist of screw sets for rail kit or
drives. If any items are missing, please contact your reseller or sales rep.
2.
Get Familiar with the Unit.

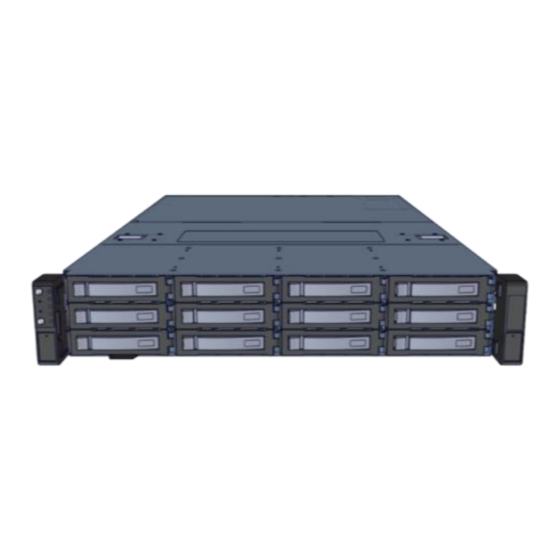

OSS212L-UN is a storage server supporting dual AMD EPYC
processor and front tray-less 12x 3.5" HDDs, an optional rear
2x 2.5" OS drive and 7x low profile PCIe slots in a 2U space.
Gigabyte MZ31-AR0 and internal cabling are preinstalled.
Other motherboard model, IO cards, CPU, and memory can
be preinstalled upon request.
Front view of the unit
Rear view of the unit
Installation and service of this product should be conducted by a trained
personnel to avoid bodily injury from electric shock or heavy object
OSS212L-UN Quick Guide
Version 1.00 – 2017.10.23
of the box. Please confirm that
Image / Description
Gigabyte MZ31-AR0
AMD EPYC and DDR4
3.
Remove the Top Covers
Qty
1
1
Opt.
Opt.
2
Opt.
1 set
2
1
Remove the middle cover to get access to internal fans. The
rear cover is for motherboard access.
4.
Inspect the Inside
comprise of a Gigabyte motherboard, an expander board (to
IO cards), an optional rear 2x 2.5" bay, 3x system fan modules
and 2x IO card fan modules (all attached to the motherboard).
See two options below to install OS disks.
Observe ESD (Electrostatic Discharge) practices during integration to avoid
possible damage to the board and / or other components
of the unit as follows:
of the unit. Internal components
