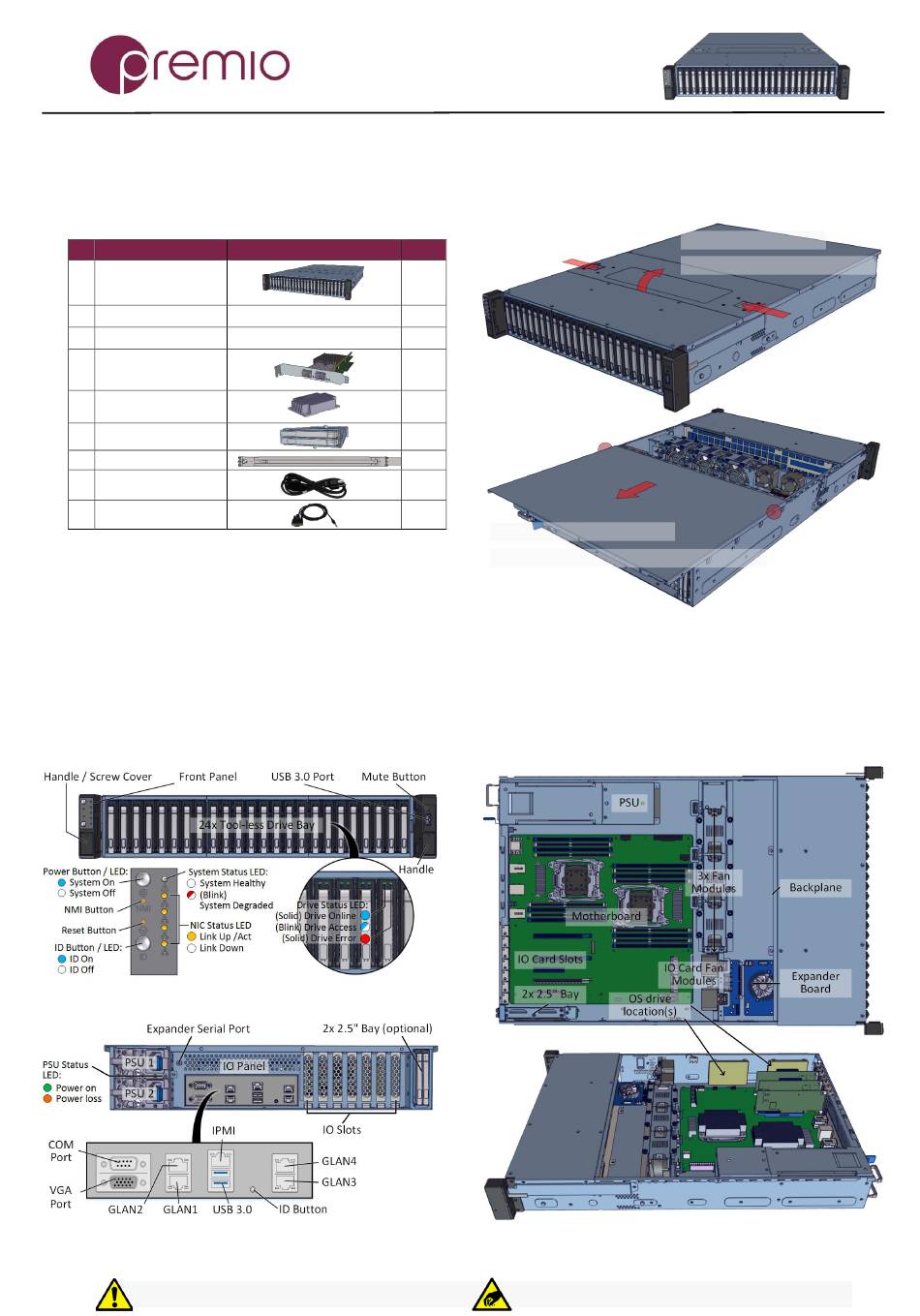

Premio OSS224S-D4 Quick Start Manual

Thank you for your purchase of Premio OSS224S-D4 Storage Server System!
1.
Check the Content
your package contains the following:
# Description
1 OSS224S Enclosure
2 Motherboard
3 CPU and memory
4 IO Cards
5 Heatsink
6 2x 2.5" Drive Bay
7 Slide Rail Kit + Screws
8 Power Cable*
9 Serial Cable*
* Inside the accessories box. Box may consist of screw sets for rail kit or
drives. If any items are missing, please contact your reseller or sales rep.
2.
Get Familiar with the Unit.
OSS224S-D4 is a storage server supporting dual Intel
processor and front tray-less 24x 2.5" HDDs, an optional rear
2x 2.5" OS drive in a 2U space. An Asrock motherboard
(EP2C612D16C-4L model),
preinstalled. Other motherboard model, IO cards, CPU, and
memory can be preinstalled upon request.

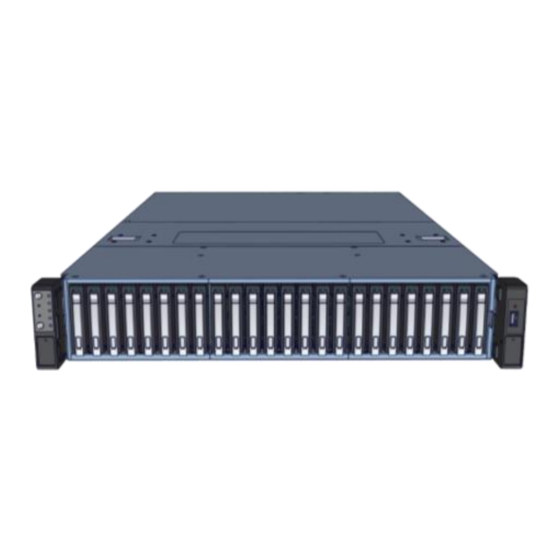

Front view of the unit
Rear view of the unit
Installation and service of this product should be conducted by a trained
personnel to avoid bodily injury from electric shock or heavy object
OSS224S-D4 Quick Guide
Version 1.10 – 2017.05.25
of the box. Please confirm that
Image / Description
Asrock DP motherboard
Intel E5 and DDR4
and internal cabling
3.
Remove the Top Covers
Qty
1
1
Opt.
Opt.
2
Opt.
1 set
2
1
3. Remove two screws (red circles)
4. Slide the motherboard cover backwards to remove
Remove the middle cover to get access to internal fans. The
rear cover is for motherboard access.
are
4.
Inspect the Inside
comprise of an Asrock motherboard, an expander board, an
optional rear 2x 2.5" bay, 3x motherboard fan modules and
2x IO card fan modules (all connected to the motherboard).
Observe ESD (Electrostatic Discharge) practices during integration to avoid
possible damage to the board and / or other components
of the unit as follows:
1. Push the latches inwards
2. Flip the cover outwards to remove
of the unit. Internal components
