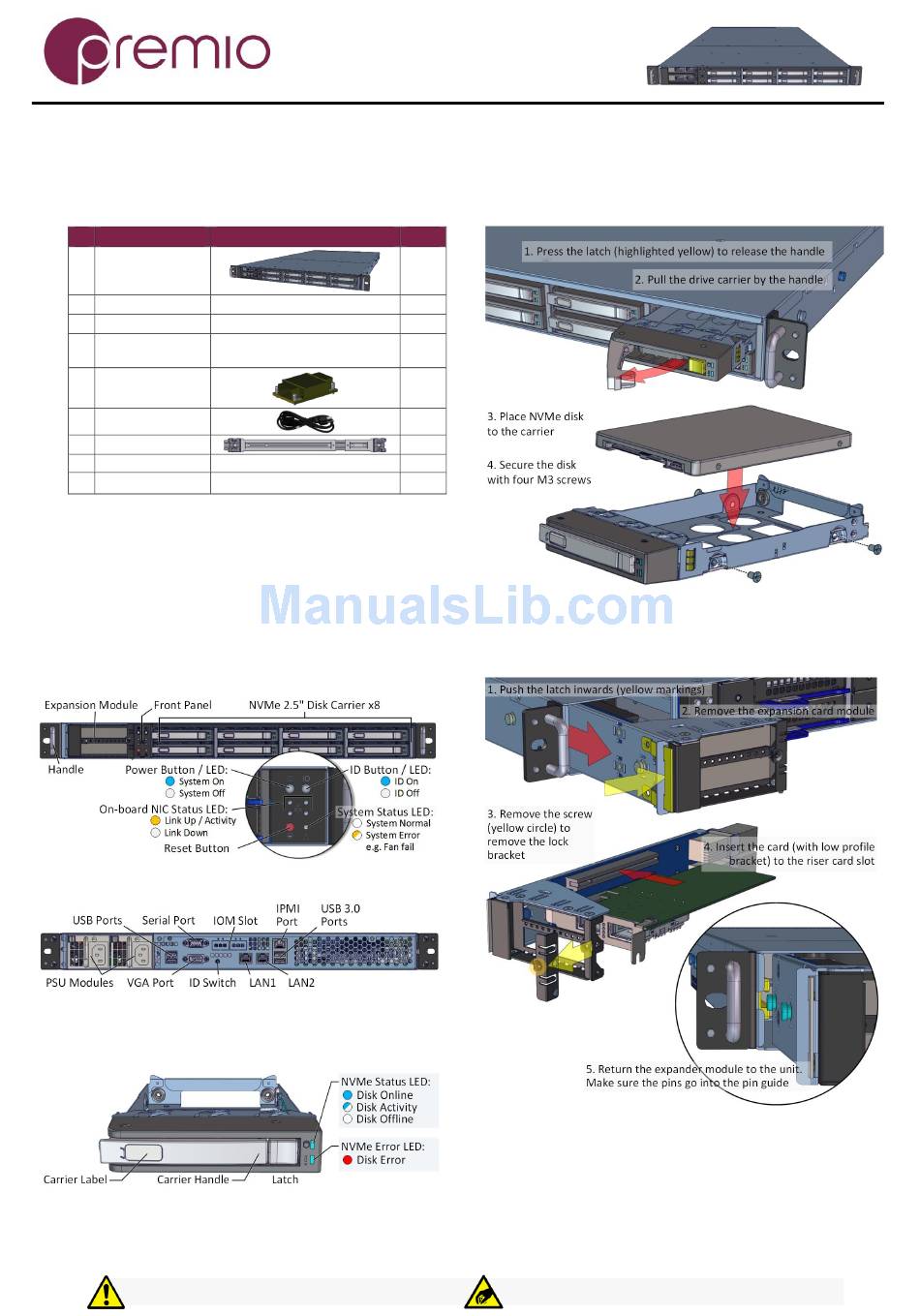

Premio FlacheSAN1N8U-D4 Quick Manual

Thank you for your purchase of Premio FlacheSAN1N8U-D4, 1U 8x NVMe 2.5" SSD
1.
Check the content
your package contains the following:
# Description
1 Enclosure
2 Motherboard
3 OS drive
4 CPU and memory
(optional)
5 Heat sink
(optional)
6 Power Cable*
7 Slide Rail Kit (opt)
8 This Quick Guide
9 Packaging
* Inside the accessories box. If any items are missing, please contact
your authorized reseller or sales representative
2.
Get familiar with the unit.
FlacheSAN1N8U-D4 is a 8-Bay NVMe storage server
supporting Intel Xeon E5-2600v3/v4 processor, front hot-
swap low profile PCIe3 x4 NVMe disk in 2.5" form factor, up
to 2x PCIe3 x16 expansion slots, and PCIe3 x8 IOM.
Front View
Rear View
NVMe Carrier
FlacheSAN1N8U-D4 NVMe carrier supports 2.5" NVMe disk
drives such as Samsung XS1715, Intel 750 series.
Installation and service of this product should be conducted by trained
personnels to avoid any bodily injury from electric shock or heavy object
FlacheSAN1N8U-D4 Quick Guide
Version 1.10 – 2017.03.03
of the box. Please verify that
Image / Description
Asrock EP2C612D16FM
optional
Pre-installed upon request
Haswell Server!
3.
Install NVMe drive
carrier supports one PCIe3 x4 NVMe disk in 2.5" form factor.
Qty
1
1
1 or 2
2 sets
2
2
1
1
1 set
4.
Install Expansion Card
module support up to 2x PCIe3 x16 low-profile cards.
Observe ESD (Electrostatic Discharge) practices during integration to avoid
possible damage to the board and / or other components
to the carrier as follows. One
to the unit. Expansion
