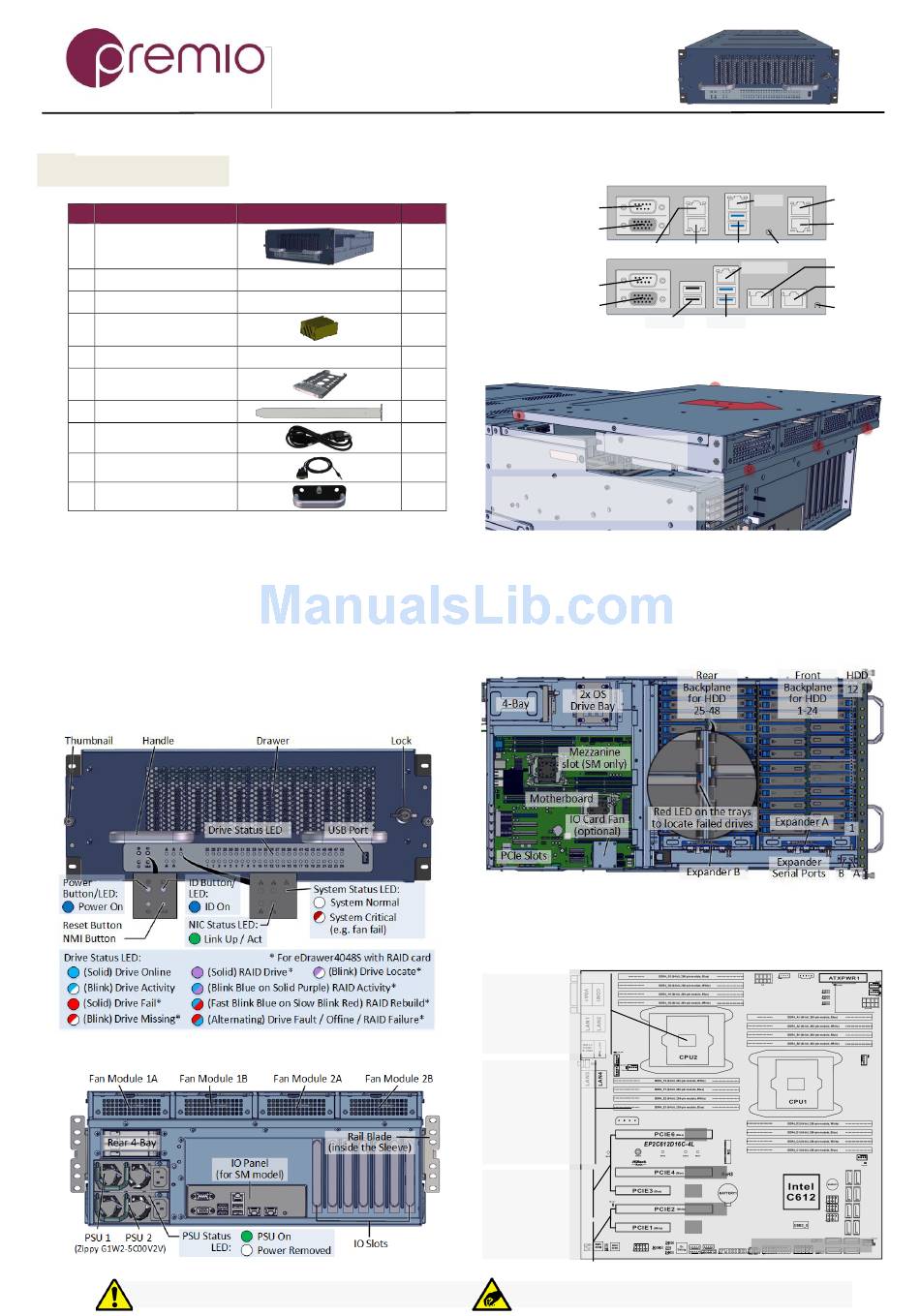

Premio eDrawer4048S Quick Manual

Thank you for your purchase of Premio eDrawer4048S Dual Processor Storage Server System!
1.
Check the Content
package contains the following:
# Description
1 eDrawer4048S
Enclosure
2 Motherboard
3 CPU and memory
4 Heatsink
5 Internal SAS cables
6 2.5" Drive Trays
7 Rail Blade
8 Power Cable*
9 Serial Cable*
10 Side Handles*
* Inside the accessories box. Box may consist of screw sets for rail kit or
drives. If any items are missing, please contact your reseller or sales rep.
2.
Get Familiar with the Unit.
eDrawer4048S is a storage server supporting dual Intel processor and
front drawer 48x 3.5" HDDs, rear 4x 2.5" drive, and 2x 2.5" OS disk in a
4U space. A choice of Asrock motherboard (EP2C612D16C-4L – with 4x
GbE or EP2C612D16SM – with additional PCIe slots) and cabling are
preinstalled. Other motherboard model, IO cards, CPU, and memory can
be preinstalled upon request.
Front view of the unit
Rear view of the unit
Installation and service of this product should be conducted by a trained
personnel to avoid bodily injury from electric shock or heavy object
eDrawer4048S Quick Guide
Version 3.70 – 2017.02.07
of the box. Please confirm that your
Image / Description Qty
1
1
Asrock DP motherboard
2 sets
Intel E5 and DDR4
2
1 set
4x SFF8643, 1x SFF8087
4
1 set
2
1
2
Rear IO Panel
Asrock EP2C612D16C-4L
(4L Model)
COM Port
VGA Port
GLAN2
Asrock EP2C612D16SM
(SM Model)
COM Port
VGA Port
USB2.0
3.
Remove the Top Cover
1. Remove 5 screws (red circles) securing
the top cover + fan module assembly
2. Remove the top cover + fan module assembly:
 Slide the cover assembly towards the rear
 Lift the cover assembly off the enclosure
4.
Inspect the Inside
comprise of an Asrock motherboard, 1x SFF8087 for rear 2.5" 4-Bay, a
bracket for 2x 2.5" OS disks, 4x SFF8463 SAS cables for 48-Bay and an
optional IO card fan. Front backplane and Fan 1A/2A are routed to
Expander A; rear backplane, rear 4-Bay, and Fan 1B/2B are routed to
Expander B. All fans are controlled by MB. SM model is shown below.
5.
Install Motherboard Components
memory). Below are motherboard diagrams for EP2C612D16C-4L and
EP2C612D16SM. For other motherboards, refer to their respective TPS.
 Two LGA2011 (Socket
R3) processor sockets
 Support for one or two
Intel Xeon E5-2600/4600
&v3 series processors
 Intel C612 chipset
 16 DIMM slots
 Quad Channel tech
 Supports DDR4
2133/1866/1600
 RDIMM and LRDIMM
 32GB, 16GB, 8GB,
4GB RDIMM; 64GB,
32GB LRDIMM
 PCIE3 (x8), PCIE4
(x16, x8 if PCIE3 is
utilized), PCI6 (x16)
linked to CPU1
 PCIE1 (x8), PCIE2
(x16, x8 if PCIE1 is
utilized) link to CPU2
Observe ESD (Electrostatic Discharge) practices during integration to avoid
possible damage to the board and / or other components
IPMI GLAN4
GLAN3
GLAN1 USB3.0 ID Button
IPMI LAN GLAN1
GLAN2
ID Button
USB3.0
of the unit as indicated.
of the unit. Internal components
(CPU, heatsink,
x16
X16 / x8
x8
X16 / x8
x8
Asrock EP2C612D16C-4L
