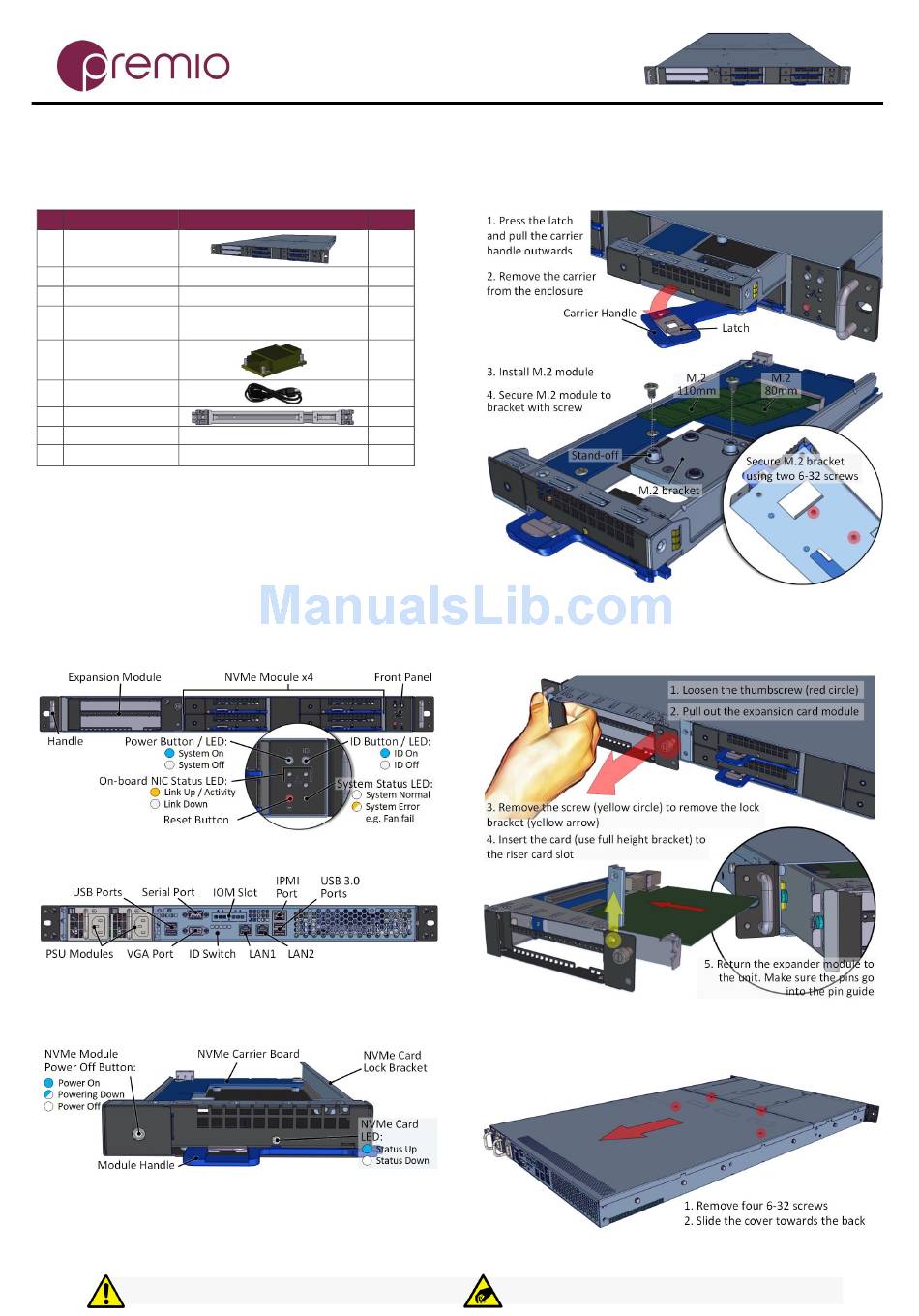

Premio FlacheSAN1N8M-D4 Quick Manual

Thank you for your purchase of FlacheSAN1N8M-D4, 1U 8x M.2 NVMe Haswell Server!
1.
Check the content
your package contains the following:
# Description Image / Description
1 Enclosure
2 Motherboard
Asrock EP2C612D16FM
3 OS drive
optional
4 CPU and memory
Pre-installed upon request
(optional)
5 Heat sink
(optional)
6 Power Cable*
7 Slide Rail Kit (opt)
8 This Quick Guide
9 Packaging
* Inside the accessories box. If any items are missing, please contact
your authorized reseller or sales representative
2.

Get familiar with the unit.

FlacheSAN1N8M-D4 is a 4-Bay NVMe storage server
supporting 8x M.2 NVMe modules, Intel Xeon E5-2600v3/v4
processor, front hot-swap low profile PCIe3 x8 NVMe cards,
up to 2x PCIe3 x16 expansion slots, and PCIe3 x8 IOM.
Front View
Rear View
NVMe Carrier
FlacheSAN1N NVMe carrier supports multiple M.2 module in
110mm and 80mm form factor NVMe such as SM951-NVme.
To hot swap the NVMe carrier, press the Power Off button,
wait until the button is completely off before replacing it.
Installation and service of this product should be conducted by trained
personnels to avoid any bodily injury from electric shock or heavy object
FlacheSAN1N8M-D4 Quick Guide
Version 1.00 – 2017.11.29
of the box. Please verify that
Qty
1
1
1 or 2
2 sets
2
2
1
1
1 set
3.

Install M.2 NVMe modules

follows. One carrier supports two M.2 NVMe modules.
4.

Install Expansion Card

module support up to 2x PCIe3 x16 low-profile or full-height
cards.
5.

Remove the top cover

internal of the system.
Observe ESD (Electrostatic Discharge) practices during integration to avoid
possible damage to the board and / or other components
to the carrier as
to the unit. Expansion
to install or inspect the
