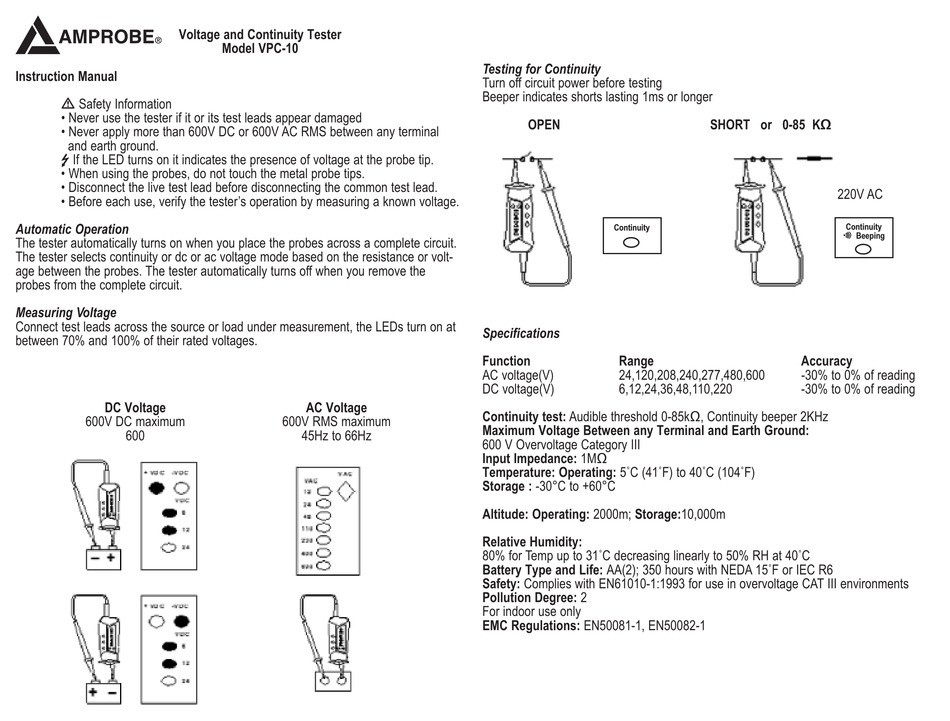

Amprobe VPC-10 Instruction Manual

Voltage and Continuity Tester
Instruction Manual
Safety Information
• Never use the tester if it or its test leads appear damaged
• Never apply more than 600V DC or 600V AC RMS between any terminal
and earth ground.
If the LED turns on it indicates the presence of voltage at the probe tip.
• When using the probes, do not touch the metal probe tips.
• Disconnect the live test lead before disconnecting the common test lead.
• Before each use, verify the tester's operation by measuring a known voltage.
Automatic Operation
The tester automatically turns on when you place the probes across a complete circuit.
The tester selects continuity or dc or ac voltage mode based on the resistance or volt-
age between the probes. The tester automatically turns off when you remove the
probes from the complete circuit.
Measuring Voltage
Connect test leads across the source or load under measurement, the LEDs turn on at
between 70% and 100% of their rated voltages.
DC Voltage
600V DC maximum
600
Model VPC-10
AC Voltage
600V RMS maximum
45Hz to 66Hz
Testing for Continuity
Turn off circuit power before testing
Beeper indicates shorts lasting 1ms or longer
OPEN
Continuity
Specifications
Function Range
AC voltage(V) 24,120,208,240,277,480,600
DC voltage(V) 6,12,24,36,48,110,220
Continuity test: Audible threshold 0-85k , Continuity beeper 2KHz
Maximum Voltage Between any Terminal and Earth Ground:
600 V Overvoltage Category III
Input Impedance: 1M
Temperature: Operating: 5˚C (41˚F) to 40˚C (104˚F)
Storage : -30°C to +60°C
Altitude: Operating: 2000m; Storage:10,000m
Relative Humidity:
80% for Temp up to 31˚C decreasing linearly to 50% RH at 40˚C
Battery Type and Life: AA(2); 350 hours with NEDA 15˚F or IEC R6
Safety: Complies with EN61010-1:1993 for use in overvoltage CAT III environments
Pollution Degree: 2
For indoor use only
EMC Regulations: EN50081-1, EN50082-1
SHORT or 0-85 K
220V AC
Continuity
r Beeping
Accuracy
-30% to 0% of reading
-30% to 0% of reading
