- Page 1 LM-100 LM-120 Light Meters Users Manual For detailed specifications and ordering info go to www.TestEquipmentDepot.com...
- Page 2 LM-100 / LM-120 Light Meters Users Manual LM100_Rev002 © 2008 Amprobe Test Tools. All rights reserved.
- Page 3 Limited Warranty and Limitation of Liability Your Amprobe product will be free from defects in material and workmanship for 1 year from the date of purchase. This warranty does not cover fuses, disposable batteries or damage from accident, neglect, misuse, alteration, contamination, or abnormal conditions of operation or handling.

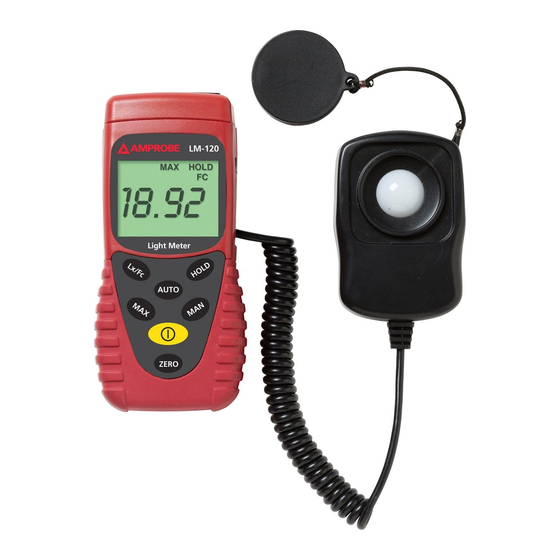

- Page 4 LM-100 LM-120 ➊ Light sensor ➋ display(LCd) ➌ Lux / foot candles ➍ MAx hoLd (LM-100) / Min and MAx value (LM-120) ➎ power Button: on/off ➏ Manual range selection ➐ dATA hoLd button ➑ AUTo ranging ➒ Light sensor Zero Adjustment...
-
Page 5: Table Of Contents
......................5 operation ......................5 Lx / fc ........................ 6 data hold ....................... 6 MAn Ranging (LM-100) .................. 6 AUTo / MAn Ranging (LM-120) ..............6 MAx ........................ 6 Auto-power off ..................... 6 Zero (LM-120) ....................6 Specifications ....................... 6 Maintenance and Repair .................. -
Page 6: Symbols
INtRodUCtIoN The LM-100 and LM-120 measure the visible light from fluorescent, metal halide, high-pressure sodium or incandescent sources. one LUx (Lumen) is the illumination from a one candela lamp perpendicular to a surface one meter squared at a distance of one meter. -
Page 7: Lx / Fc
MAN Ranging (LM-100) press the MAnual ranging button for useable reading. AUto / MAN Ranging (LM-120) press the AUTo or MAnual ranging button for useable reading. AUTo ranging is the default operation. MAX (LM-120) The MAx Min feature reads and updates the display to show the maximum or minimum value measured after you press the MAx Min button. -
Page 8: Maintenance And Repair
Storage: -10 °C to 50 °C, 0 to 70 %Rh. power Supply: 9V nedA 1604, ieC 6f22, JiS 006p battery Battery life: 200 hours Auto power off: approx 6 min dimension (Base): 130 x 63 x 38 mm (5.1 x 2.5 x 1.5”) dimension (Sensor): 80 x 55 x 29 mm (3.2 x 2.2 x 1.1”) weight:... -
Page 9: Battery Replacement
Turn off the meter and slide out the battery cover. Replace the battery with a nedA type 1604 or equivalent 9V alkaline battery. Replace the cover. Remove battery when the LM-100 / LM-120 is not used for extended period. OPEN...
