TP-Link ER707-M2 Installation Manual

Installation Guide
Omada VPN Router

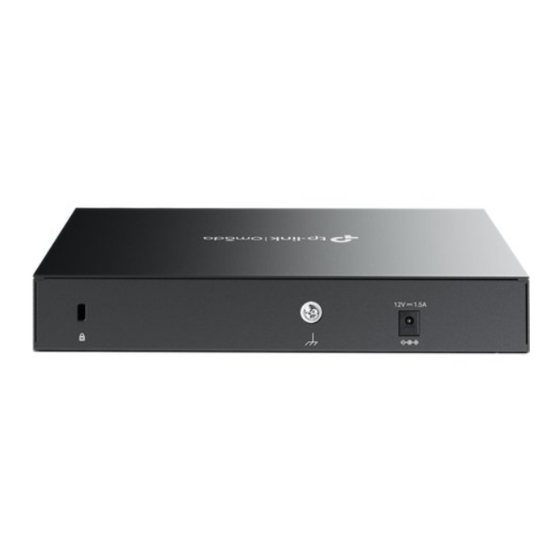

Note: The image may differ from the actual product.

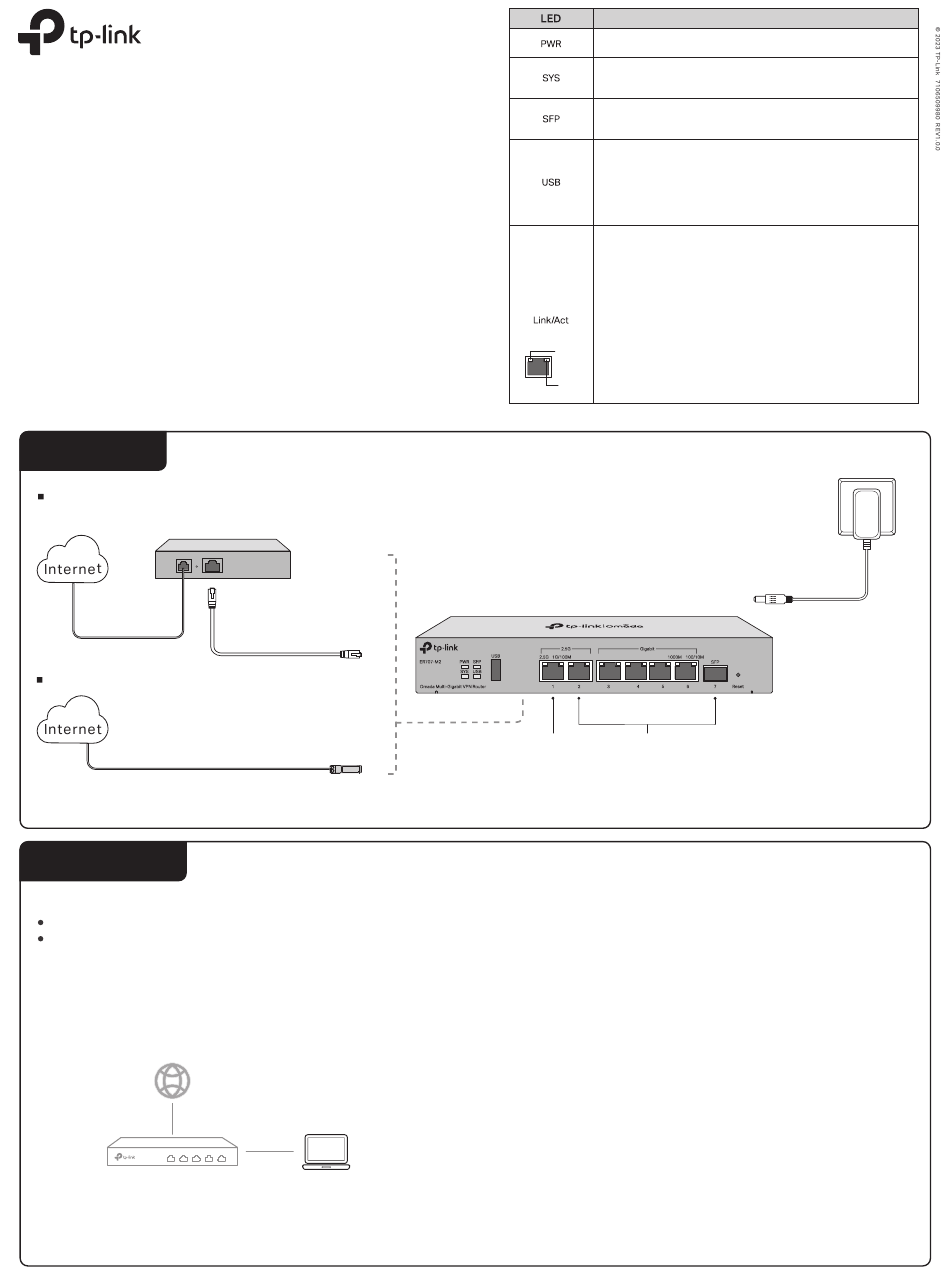

Connection
Note: For simplicity, we take ER707-M2 as an example.
Connect via Ethernet
Connect via fiber network
Fiber-Optic Cable
Configuration
The router supports two configuration options:
Standalone Mode: Configure and manage the router singly.
Controller Mode: Configure and manage the network devices centrally. It is recommended in the large-scale network, which consists of mass devices such as
access points, switches, and gateways.
Note: When the router is managed by a controller, configurations of the router will be overriden by the controller.
Option 1: Standalone Mode
In Standalone Mode, use a computer to configure and manage the router.
Router
1. Connect a computer to a LAN port of the router with an RJ45 cable
properly. If your computer is configured with a fixed IP, change it to Obtain
an IP address automatically.
Modem
Connect to RJ45 WAN Port
Connect to SFP WAN Slot
Optical Module
PC
Indication
On: Power is on.
Off: Power is off.
Slow Flashing: System is running normally.
Quick Flashing: The router is being reset.
On/Off: System is starting up or running abnormally.
On: Running at 1000 Mbps, but no activity.
Off: No device is linked to the corresponding port.
Flashing: Running at 1000 Mbps, and transmitting or receiving data.
For USB Modem:
Flashing: A modem is connected, and it is initializing.
On: The modem is loaded.
Off: No modem is inserted, or it is corrupted or incompatible.
For USB Storage:
On: A USB storage device is inserted and identified.
Off: No USB storage device is inserted, or it is corrupted or incompatible.
For 2.5G Port:
Green On: Running at 2.5 Gbps, but no activity.
Green Off: No device is linked to the corresponding port.
Green Flashing: Running at 2.5 Gbps, and transmitting or receiving data.
Yellow On: Running at 1000/100/10 Mbps, but no activity.
Yellow Off: No device is linked to the corresponding port.
Yellow Flashing: Running at 1000/100/10 Mbps, and transmitting
or receiving data.
For Gigabit Port:
Green On: Running at 1000 Mbps, but no activity.
Green Off: No device is linked to the corresponding port.
Green
Green Flashing: Running at 1000 Mbps, and transmitting or receiving data.
Yellow On: Running at 100/10 Mbps, but no activity.
Yellow Off: No device is linked to the corresponding port.
Yellow
Yellow Flashing: Running at 100/10 Mbps, and transmitting or receiving data.
2.5G WAN WAN/LAN
2. Open a web browser and type the default management address
192.168.0.1 in the address field of the browser, then press the Enter key.
3. Create a username and a password for subsequent login attempts and
for security.
4. Use the username and password set above to log in to the webpage.
5. After a successful login, you can configure the function by clicking the
setup menu on the left side of the screen.
For detailed configurations, refer to the User Guide of the router. The guide
can be found on the download center of our official website:
https://www.tp-link.com/support/download/.
Note: Use the charger provided in the
package to power on the router.
