HMS Networks Intesis INBACDAL0640500 Installation Sheet page 2

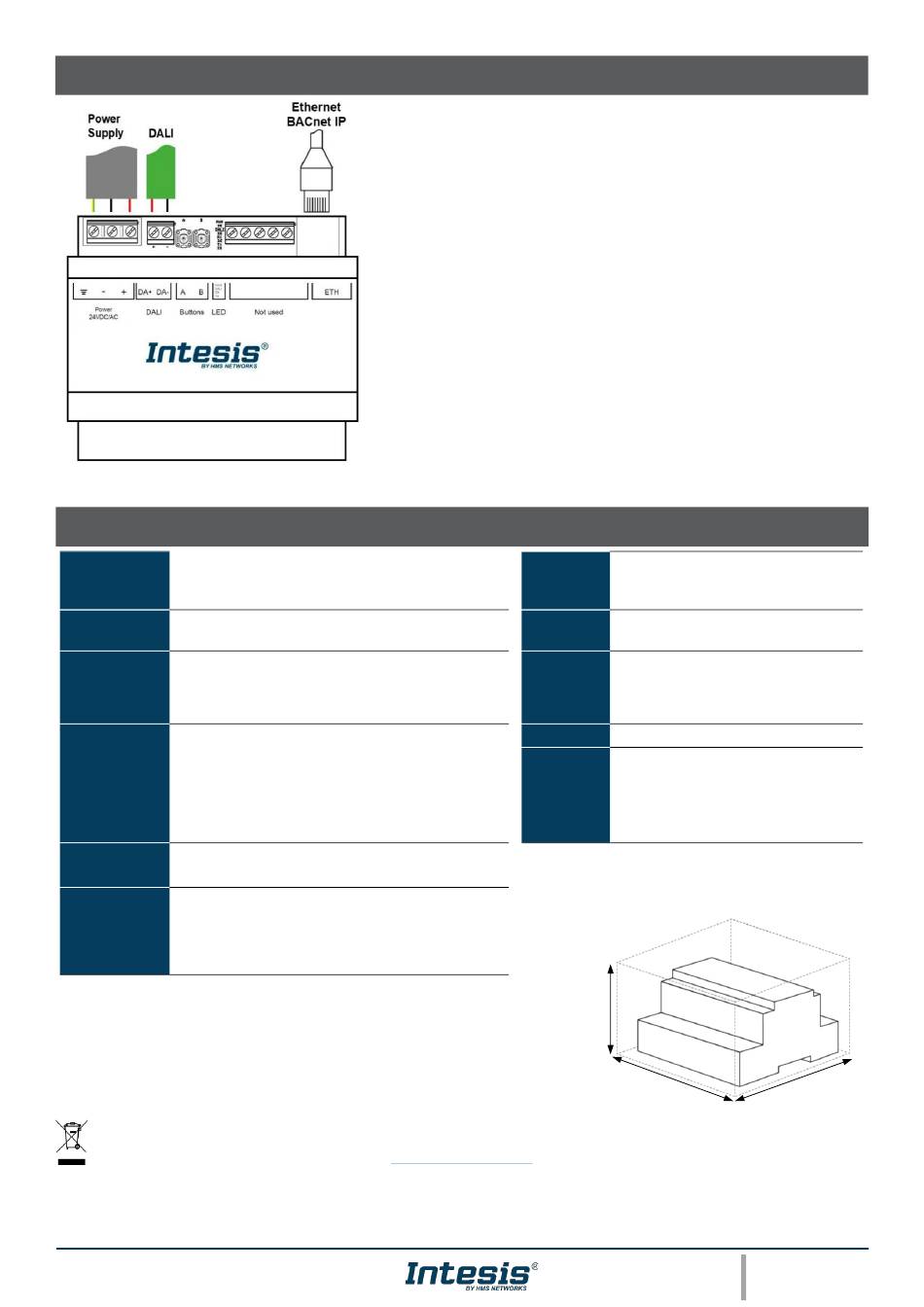

CONNECTIONS
ELECTRICAL & MECHANICAL FEATURES
Plastic, type PC (UL 94 V-0)
Net dimensions (d
Enclosure
Recommended space for installation (d
Color: Light Grey. RAL 7035
Wall.
Mounting
DIN rail EN60715 TH35.
Per terminal: solid wires or stranded wires (twisted or with
ferrule)
Terminal Wiring
1 core: 0.5mm
(for power supply and
low-voltage signals) 2 cores: 0.5mm
3 cores: not permitted
1 x Plug-in screw terminal block (3 poles)
Positive, Negative, Earth
Power
24VDC/AC +/-10%
6W(250mA)
1 x Ethernet 10/100 Mbps RJ45
Ethernet
2 x Ethernet LED: port link and activity
1 x DALI port (Plug-in screw terminal block 2 poles)
1500VDC isolation from other communication ports
DALI guaranteed power: 230mA
DALI
DALI maximum power:250mA
Voltage rating: 16VDC
This marking on the product, accessories, packaging or literature (manual) indicates that the product contains electronic
parts and they must be properly disposed of by following the instructions at
Version 1.3
© HMS Industrial Networks S.L.U - All rights reserved
This information is subject to change without notice
Power Supply
Must use NEC Class 2 or Limited Power Source (LPS) and SELV rated power supply.Respect polarity
applied of terminals (+) and (-). Be sure the voltage applied is within the range admitted (check table
below). The power supply can be connected to earth but only through the negative terminal, never
through the positive terminal.
Ethernet / BACnet IP(UDP) / Console (UDP & TCP)
Connect the cable coming from the IP network to the connector ETH of the gateway. Use an Ethernet
CAT5 cable. If communicating through the LAN of the building, contact the network administrator and
make sure traffic on the port used is allowed through all the LAN path (check the gateway user manual
for more information). With factory settings, after powering up the gateway, DHCP will be enabled for 30
seconds. After that time, if no IP is provided by a DHCP server, the default IP 192.168.100.246 will be
set.
DALI
Connect the DALI bus to connectors DA+, DA- of gateway's DALI port. The Intesis gateway provides
16VDC DALI voltage to the bus. Please, respect polarity when other DALI power supplies are connected
in the same DALI bus.
w h): 88x106x56 mm
x x
w h): 130x115x100mm
x x
... 2.5mm
2 2
... 1.5mm
2 2
https://intesis.com/weee-regulation
Button A: Check the user manual
Push Button
Button B: Check the user manual
Operation
0°C to +50°C
Temperature
Operational
5 to 95%, no condensation
Humidity
Protection IP20 (IEC60529)
6 x On board LED indicators
1 x Power LED (Green)
1 x DALI (Yellow)
LED
1 x RX (Green)
Indicators
1 x TX (Yellow)
1 x Button A indicator
1 x Button B indicator
100 mm (h)
115 mm (w)
URL
130 mm (d)
http://www.intesis.com
2 / 2
