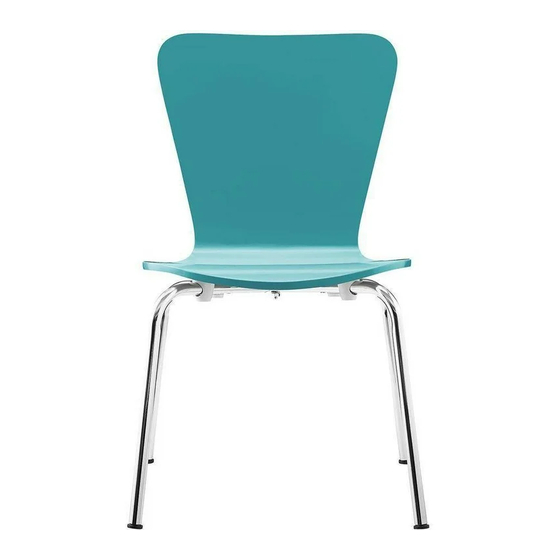

Kids Bentwood Chair
Thank you for purchasing from DHP!
DO NOT RETURN TO THE STORE !
If parts are missing or damaged, we will gladly ship your
replacement parts free of charge.
Visit www.dhpfurniture.com/eng/support-home
or call Toll-Free 1-800-267-1739
Date of Purchase
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
C015110WE
Lot Number
B34C015110WE00 - 197776
Pink
1
Advertisement
Related Manuals for Better Homes and Gardens C015110WE
Summary of Contents for Better Homes and Gardens C015110WE
- Page 1 Better C015110WE H<l!l!�§. Kids Bentwood Chair Pink Weight Limit:60 Lb / 27 Kg Thank you for purchasing from DHP! DO NOT RETURN TO THE STORE ! If parts are missing or damaged, we will gladly ship your replacement parts free of charge.
- Page 2 Warranty Information Read Before Beginning Assembly DHP warrants this product to be free from defects in material and workmanship and Call our toll free number if you need assistance. agrees to remedy any such defect. This warranty covers one year from the date of Work in a spacious area and near where the unit will be used, preferably on a original purchase.
- Page 3 B34C015110WE00...
- Page 4 Parts Replacement Parts, Visit www.dhpfurniture.com/eng/support-home This item is packed in 1 box! Before you throw the package, please use the Check Box to identify the parts and ensure that you have all the parts needed for the assembly. Foot Bar 1 Seat T803400 T803390...
-
Page 5: Hardware Pack
Hardware Pack Hardware Pack #: TC015102WE-00 1/4" x 1/2" 1/4" x 1-1/4" Leg Support 1/4" Hardware Note: Please do not completely tighten all the hardware, Allen Key Metal Plate until the entire assembly is completed, unless otherwise indicated in the step-by-step instructions. - Page 6 Step 1 Insert LEG SUPPORT 3 into Leg (B), align with first holes, as shown. B34C015110WE00...
- Page 7 Step 2 Insert LEG SUPPORT 3 into Leg (C), align with first holes, as shown. B34C015110WE00...
- Page 8 Step 3 Attach subassembly from STEP 1 to (A) with BOLTS 2 & WASHERS 6. Please respect the direction of the arrow as shown in detail view and DO NOT completely tighten the bolts until STEP 6 is completed. B34C015110WE00...
- Page 9 Step 4 Attach subassembly from STEP 2 to (A) with BOLTS 2 & WASHERS 6. Please respect the direction of the arrow as shown in detail view and DO NOT completely tighten the bolts until STEP 6 is completed. B34C015110WE00...
- Page 10 Step 5 Insert SPACER 4 between (A) & (B), then attach the METAL PLATE 8 to the Chair with BOLT 2 & WASHER 6. B34C015110WE00...
- Page 11 Step 6 Fix the metal plate 8 to (B) and (C) with BOLTS 1 and WASHERS 6. Please make sure all hardware is properly tightened. B34C015110WE00...
- Page 12 Step 7 Insert Plastic Caps 5 into each leg as shown. B34C015110WE00...
-
Page 13: Helpful Hints
Helpful Hints Helpful Hints Weight Limit: 60 Lb / 27 Kg Move your new furniture carefully, with two people lifting and carrying the unit to its new location. Your DHP furniture can be disassembled and reassembled to move. To clean, use a soft or slightly damp cloth, then wipe with a clean, dry cloth. - Page 14 C015110WE NO LO REGRESE A LA TIENDA ! Si le faltan piezas o las que se incluyen est n da adas, con Kids Bentwood Chair mucho gusto le enviaremos sus piezas de reemplazo sin cargo extra. Visite www.dhpfurniture.com/spa/support-home Rosado o llame gratis al 1-800-267-1739...
