Johnson Controls NS-ATV7003-0 Installation Instructions

Handheld VAV Balancing Tool

Installation Instructions

NS-ATV7003-0
Applications
The Variable Air Volume (VAV) Balancing Tool allows
you to easily adjust and set the required parameters for
VAV applications that reside on the Metasys® system
VAV Modular Assembly (VMA) 1600 Series or Field
Equipment Controller (FEC) Series controllers.
The VAV balancing parameters display on the tool's
Liquid Crystal Display (LCD). You use the dial and two
buttons on the tool to navigate through simple, intuitive
menus to balance the VAV box. The menus you see
are customized to the type of application residing in the
controller. The balancing operation also features an
adjustable time-out parameter that returns the tool and
controller to normal operation if you leave the controller
in balancing mode.
The handheld VAV Balancing Tool is lightweight and
portable. It can plug into any model of network sensor
to access the VAV controller.
The VAV Balancing Tool is compatible with the
following Metasys system BACnet® protocol devices:
• FEC loaded with a VAV application
• VMA1600 loaded with a VAV application
• Network Sensors connected to an FEC or
VMA1600 loaded with a VAV application
LCD with Backlight
Cancel Button
Enter Button

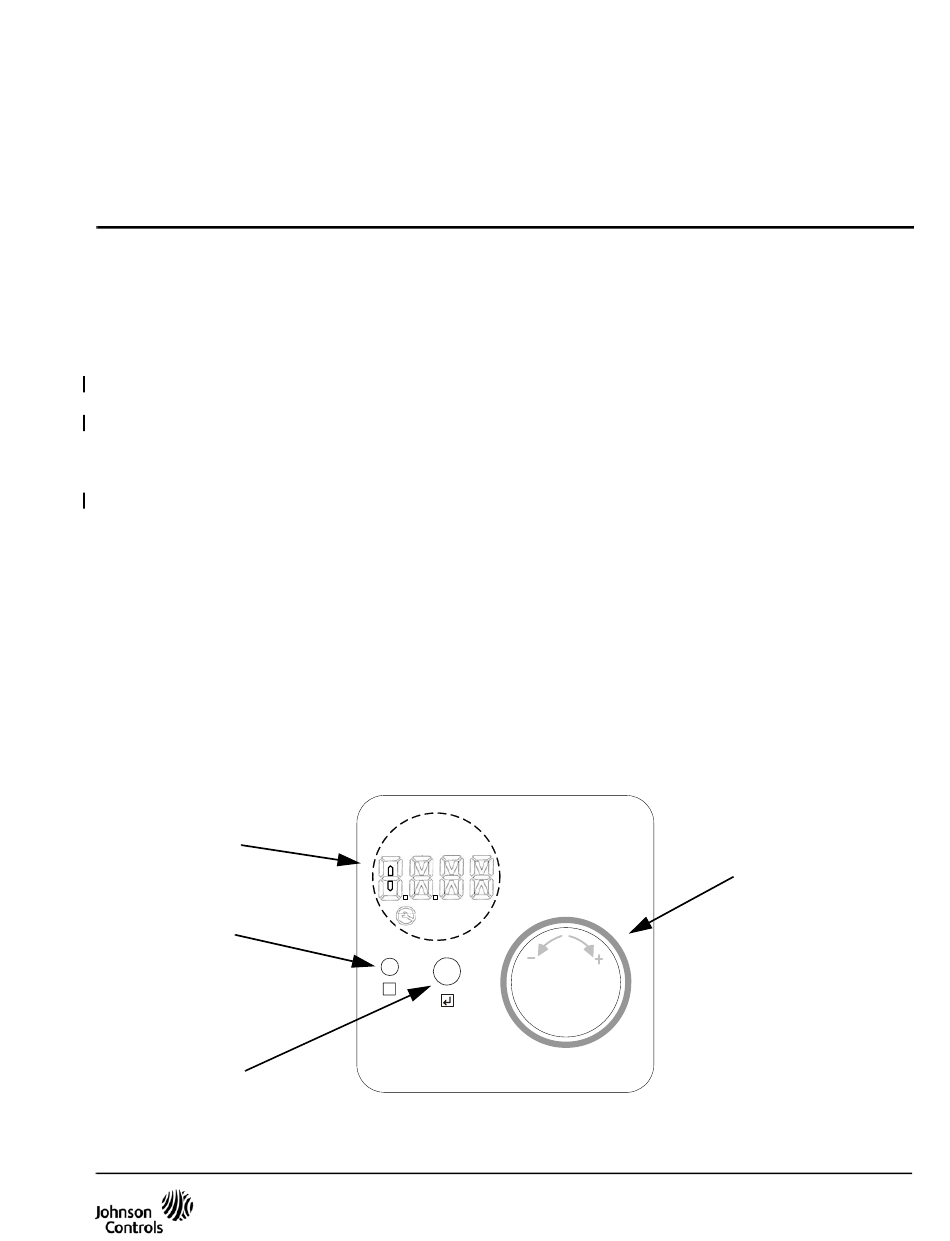

Figure 1: Front of the VAV Balancing Tool, 80 x 80 mm (3.2 x 3.2 in.)
North American Emissions Compliance
United States
This equipment has been tested and found to comply
with the limits for a Class A digital device pursuant to
Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference when this equipment is operated in a
commercial environment. This equipment generates,
uses, and can radiate radio frequency energy, and if
not installed and used in accordance with the
instruction manual, may cause harmful interference to
radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference,
in which case the user will be required to correct the
interference at his/her own expense.
Canada
This Class (A) digital apparatus meets all the
requirements of the Canadian Interference-Causing
Equipment Regulations.
Cet appareil numérique de la Classe (A) respecte
toutes les exigences du Règlement sur le matériel
brouilleur du Canada.
`
x
°F/°C
Handheld VAV Balancing Tool Installation Instructions
Part No. 24-10211-2, Rev. C
Release 4.1
Issued October 6, 2008
Supersedes March 10, 2008
