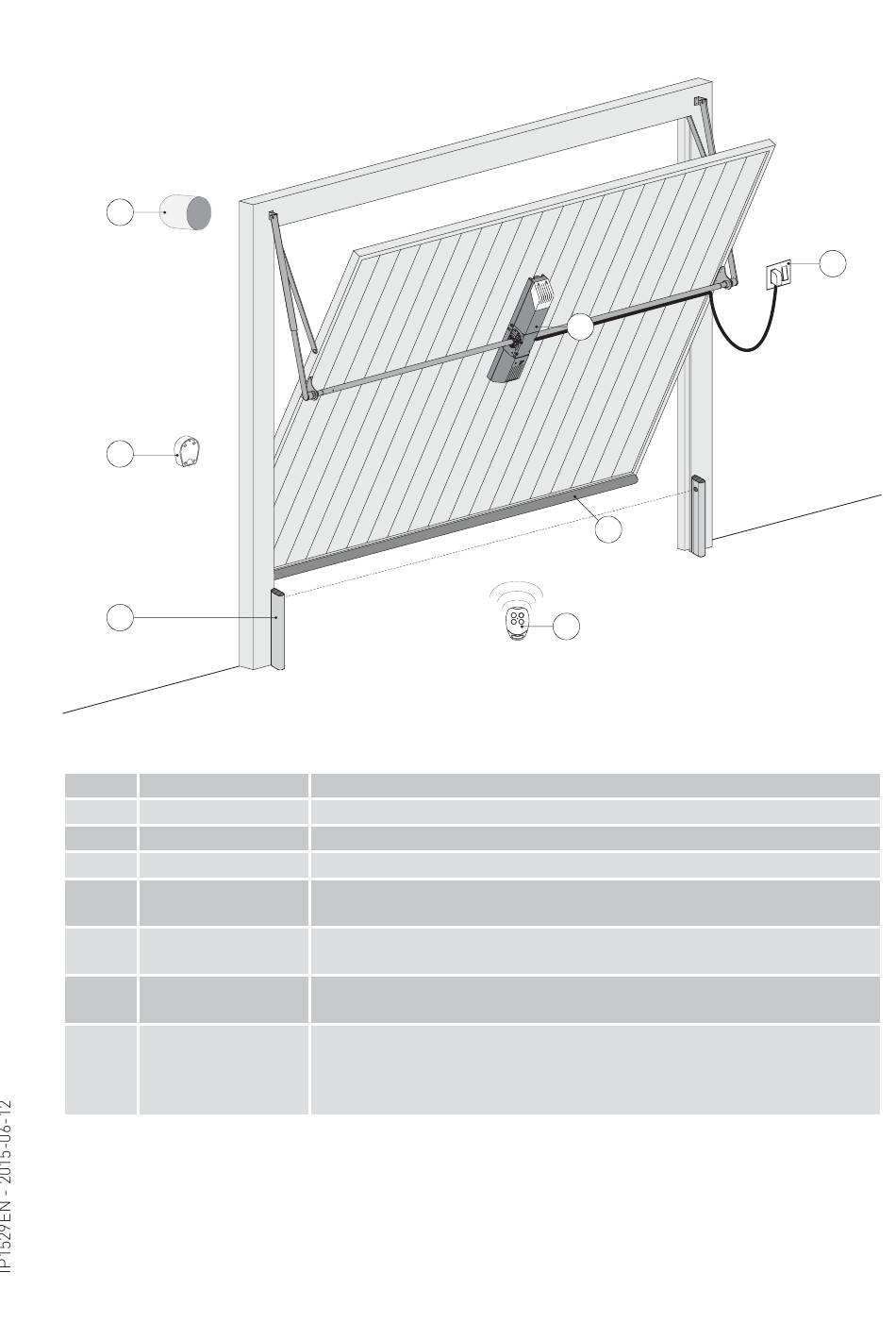

4. Standard installation

4
5
6
Ref. Code
1 BOX3EH
2 SOF
3 GOL4
4 LAMP
LAMPH
5 XEL5
GOL4M
6 XEL2
LAB4
A
DC irreversible actuator with control panel incorporated
Safety edge
Transmitter
Flashing light
Key selector
Codified via radio control keyboard
Photocells
Photocells IP55
Connect the power supply to an approved omnipolar switch with an opening
distance of the contacts of at least 3mm (not supplied).
The connection to the mains must be made via an independent channel,
separated from the connections to command and safety devices.
29
1
2
3
Description
A
