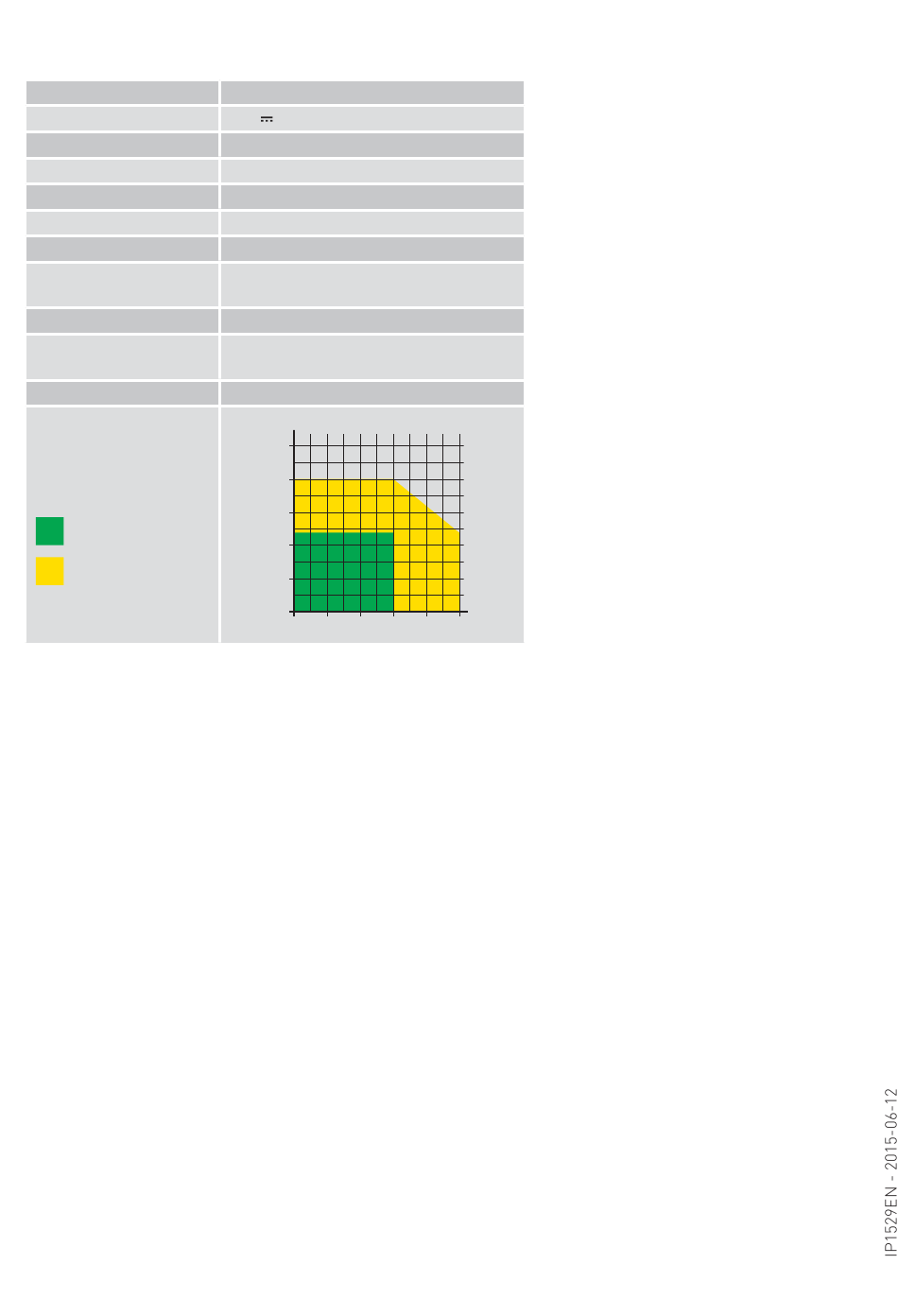

3. Technical data
Power supply
Absorption
Torque
Opening time
Weight
Service class
Intermittence
Temperature
Degree of protection
Control panel
Applications
H = door height
L = door width
1x BOX
2x BOX
3.1 Operating instructions
Service class: 3 (minimum 30 cycles a day for 10 years or 60 cycles a day for 5 years).
Use: FREQUENT (For vehicle or pedestrian accesses to town houses or small condominiums with
frequent use).
- Performance characteristics are to be understood as referring to the recommended weight
(approx. 2/3 of maximum permissible weight). A reduction in performance is to be expected
when the access is made to operate at the maximum permissible weight.
- Service class, running times, and the number of consecutive cycles are to be taken as merely
indicative having been statistically determined under average operating conditions, and are
therefore not necessarily applicable to specific conditions of use. During given time spans
product performance characteristics will be such as not to require any special maintenance.
- The actual performance characteristics of each automatic access may be affected by independent
variables such as friction, balancing and environmental factors, all of which may substantially
alter the performance characteristics of the automatic access or curtail its working life or parts
thereof (including the automatic devices themselves). When setting up, specific local conditions
must be duly borne in mind and the installation adapted accordingly for ensuring maximum
durability and trouble-free operation.
BOX3EH
24 V
8 A
300 Nm
15÷30 s
11,40 kg
3 - FREQUENT
S2 = 30 min
S3 = 50%
min -20° C max +55° C
IP44
IP40 (with E1HBOX)
E1HBOX
H
5 m
4 m
3 m
2 m
1 m
1 m 2 m 3 m 4 m 5 m
L
28
