Ditec DODSBC

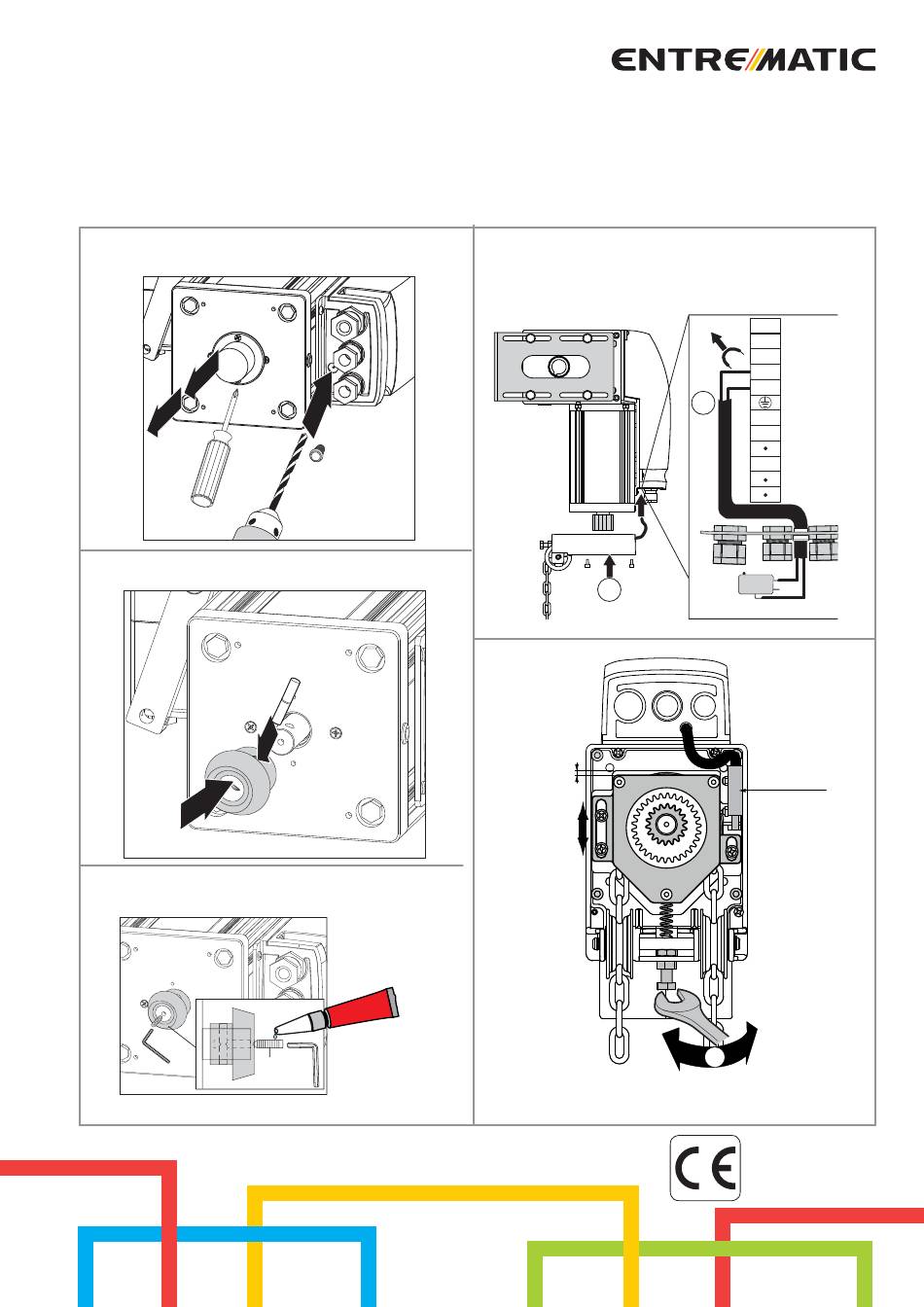

[1] Togliere il tappo / Remove the cover
[2] Forare Ø9 / Drill Ø9
[3] Inserire l'ingranaggio / Insert the gear
[4] Inserire la spina / Insert the pin
1
[5] Fissare l'ingranaggio / Fix the gear
Ø9
2
FRENAFILETTI
THREADLOCKING
M4x8
www.entrematic.com
[6] Fissare il DodSBC / Fix DodSBC
[7] Togliere il ponte e collegare il microswitch
Remove the jumper and connect the microswitch
6
*2 mm
[8] Bilanciare il peso della catena (*circa 2 mm)
Balance the weight of the chain (*about 2 mm)
IP1835 • 2017-06-12
12
11
0
STOP
7
U
V
W
NC
C
Microswitch
Microswitch
8
Entrematic Group AB
Lodjursgatan 10
SE-261 44, Landskrona
Sweden
www.entrematic.com
