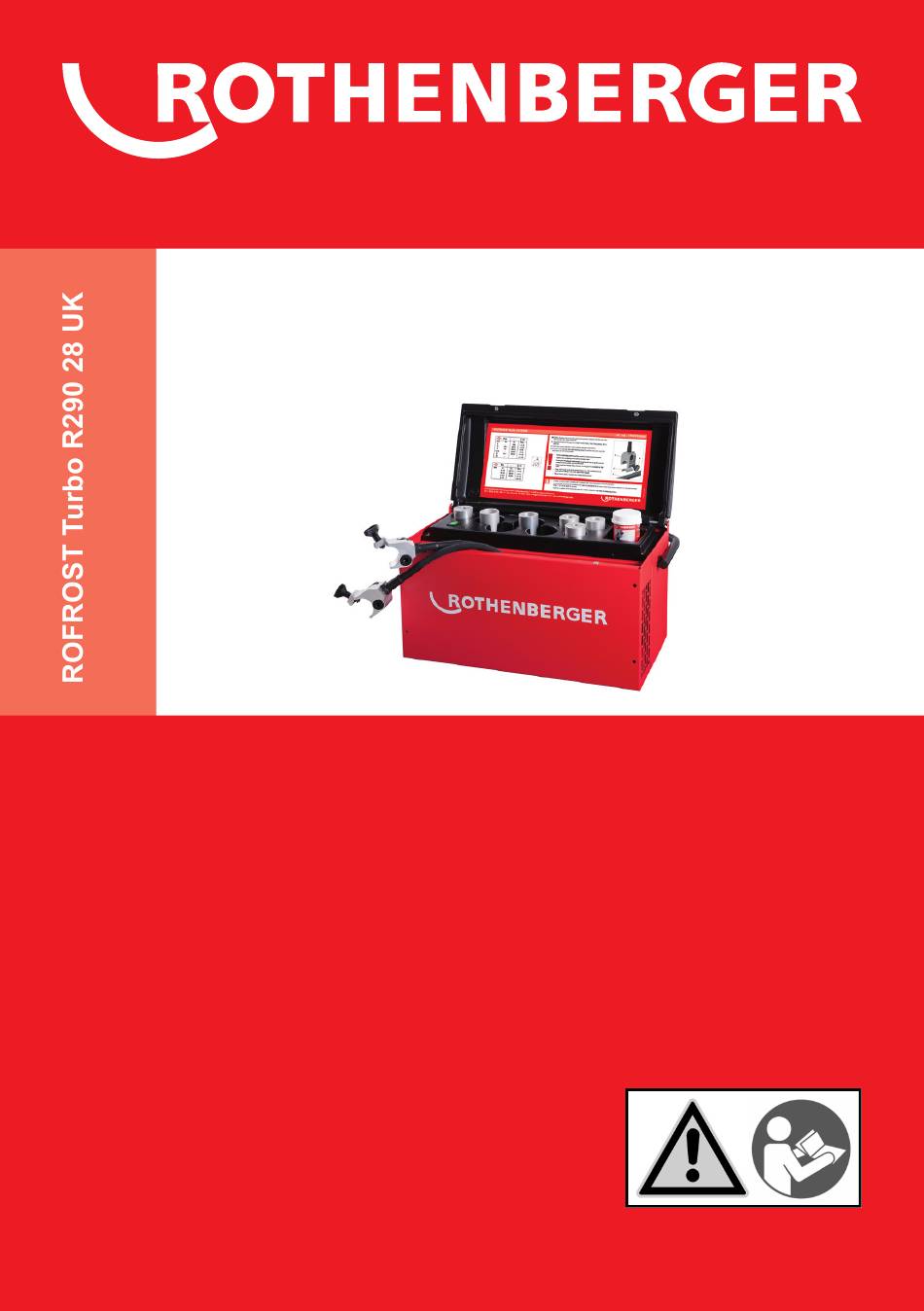

- Page 1 ROFROST Turbo R290 28 UK EN Instructions for use www.rothenberger.com...
- Page 2 ROFROST Turbo R290 28 UK Min. Min. 28/8 >/= 5 G 1/8 28/10 >/= 5 3/8“ 28/10 >/= 5 G 1/4 28/15 >/= 6 1/2“ 28/12 >/= 5 G 1/2 28/22 >/= 10 14/15 28/15 >/= 6 G 3/4 >/= 15...
- Page 3 EU-DECLARATION OF CONFORMITY We declare on our sole accountability that this product conforms to the standards and guidelines stated. ROFROST Turbo R290 28 UK: 2014/35/EU, 2014/30/EU, 2011/65/EU, EN ISO 12100, EN 60335-1, EN 60335-2-24, EN 378-1, EN 378-2, EN 378-3, EN 378-4, EN 61000-3-2, EN 61000-3-3,...
-
Page 4: Table Of Contents
Contents Page Safety Notes .......................... 3 Intended use........................3 General safety instructions ....................3 Special safety instructions ....................4 Special safety instructions and warnings for devices that use R290 refrigerant (propane)... 6 Technical Data ........................7 Scope of delivery, transport and storage ................7 Function of the Unit ...................... -
Page 5: Safety Notes
Safety Notes Intended use ROFROST Turbo R290 28 UK: The pipe freezing equipment must only be used to freeze copper pipes with a diameter of 8 – 28 mm. Other applications are not permissible! General safety instructions ATTENTION! When using electric tools, the following fundamental safety measures must be taken to prevent electric shock, injury or fire. -
Page 6: Special Safety Instructions
17 Avoid unintentional activation. When plugging the tool in, make sure that the switch is turned off. 18 Use outdoor extension cords. When outdoors, use only extension cords that are approved and appropriately marked. 19 Be alert. Pay attention to what you do. Approach your work sensibly. Do not use the electric tool when you are distracted. - Page 7 Refrigeration cycle intervention Only allowed by refrigeration technical experts. Contact customer service. Take care in the event of accumulation of cooling agent vapours at ground level – lack of oxygen – risk of suffocation! Smoking and unshielded flames prohibited! Always ensure the power is off in the system before intervention (see above)! First aid Use protective goggles to shield your eyes against exposure to liquid cooling agents! In the event of eye contact with liquid cooling agent do not rub the eyes and avoid all eye aggra-...
-
Page 8: Special Safety Instructions And Warnings For Devices That Use R290 Refrigerant (Propane)
Special safety instructions and warnings for devices that use R290 refrigerant (propane) WARNING! According to DIN EN 378-1 the R290 refrigerant belongs to safety group A3. The device is permanently sealed from a technical point of view. The filling quantity of the refrigerant is less than 150g. Leave the device open for 5 minutes before commissioning. -
Page 9: Technical Data

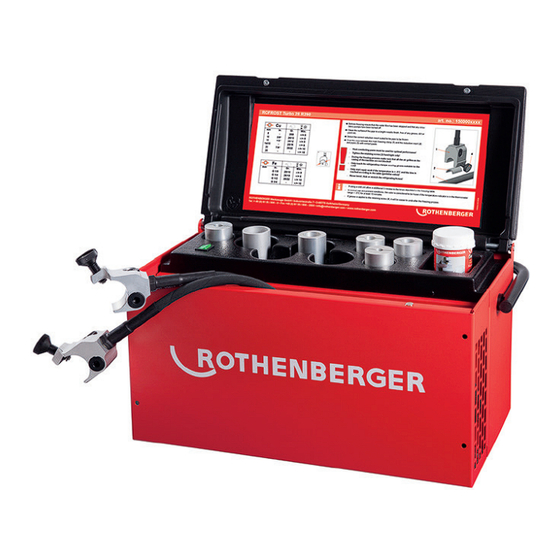

Construction class N ..........Ambient temperature range +16 ... +32°C Scope of delivery, transport and storage Scope of delivery: Essentially, the ROFROST Turbo R290 28 UK pipe freezing system consists of the following components or following accessories respectively: • Electric refrigerating system consisting of:... -
Page 10: Application And Replacement Of The Tools
The ROFROST Turbo R290 28 UK is a “contact freezing unit“. The function of the unit can only be guaranteed if there is proper heat-conducting contact between the refrigerating clamps and the pipes that are to be frozen. -
Page 11: Shutdown
The cooling circuit must only be opened by technical experts from ROTHENBERGER Werkzeuge GmbH. Once the ROTHENBERGER heat-conductive paste has been used up it can be re-ordered by quoting order no. 62291. Troubleshooting Basic details can be found in the chapter on safety information. -
Page 12: Customer Service
ROTHENBERGER. Customer service The ROTHENBERGER service locations are available to help you (see listing in catalog or on- line) and replacement parts and service are also available through these same service locations. Order your accessories and spare parts from your specialist retailer or using our service-after-... - Page 13 NOTES...
- Page 14 NOTES...
- Page 15 NOTES...
- Page 16 ROTHENBERGER Werkzeuge GmbH Industriestraße 7 D-65779 Kelkheim / Germany Telefon +49 6195 / 800 - 0 Telefax +49 6195 / 800 - 3500 info@rothenberger.com rothenberger.com Änderungen und Irrtümer vorbehalten...
