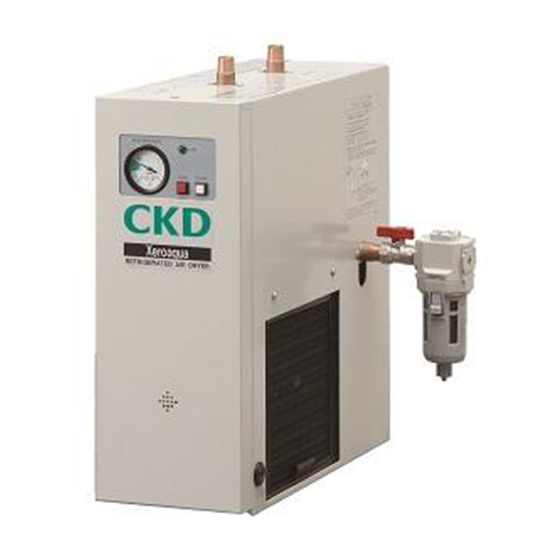

CKD Xeroaqua GX Series Instruction Manual
Refrigerated compressed air dryer
Hide thumbs
Also See for Xeroaqua GX Series:
- Instruction manual (52 pages) ,
- Instruction manual (40 pages) ,
- Instruction manual (20 pages)
Table of Contents
Advertisement
Quick Links
ＩＮＳＴＲＵＣＴＩＯＮ ＭＡＮＵＡＬ
REFRIGERATED COMPRESSED AIR DRYER
Xeroaqua GX Series
ＧＸ３１０８，ＧＸ３１１１，ＧＸ３１１５，ＧＸ３１２２，
ＧＸ３１３７
ＧＸ５１０３，ＧＸ５１０４，ＧＸ５１０６，ＧＸ５１０８，
ＧＸ５１１１，ＧＸ５１１５，ＧＸ５１２２, ＧＸ５１３７
Operation manual for option
●
This instruction manual is for option,
read together with attached manual
(SM-366338-A).
●
Please read this instruction manual
carefully
before
particularly the section describing safety．
●
Retain this instruction manual with the
product for further consultation whenever
necessary．
ＳＭ−３７２６３７−Ａ
using
this
product,
APR-06 First edition
ＣＫＤ Corporation
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CKD Xeroaqua GX Series
Summary of Contents for CKD Xeroaqua GX Series
- Page 1 ＳＭ−３７２６３７−Ａ ＩＮＳＴＲＵＣＴＩＯＮ ＭＡＮＵＡＬ REFRIGERATED COMPRESSED AIR DRYER Xeroaqua GX Series ＧＸ３１０８，ＧＸ３１１１，ＧＸ３１１５，ＧＸ３１２２， ＧＸ３１３７ ＧＸ５１０３，ＧＸ５１０４，ＧＸ５１０６，ＧＸ５１０８， ＧＸ５１１１，ＧＸ５１１５，ＧＸ５１２２, ＧＸ５１３７ Operation manual for option ● This instruction manual is for option, read together with attached manual (SM-366338-A). ● Please read this instruction manual carefully before using this product, particularly the section describing safety． ● ...
-
Page 2: Safety Instructions
Safety instructions This dryer must be operated by a person who has basic knowledge of electric, compressed air,liquid, piping, refrigerant, etc. We are not responsible for any accidents caused when a person who does not have the basic knowledge or who is not well trained installation, operation, repair, etc. -
Page 3: Table Of Contents
････････････････････････････････････････････ 3 2. Installation ･････････････････････････････････････････････ 3 Confirm the following. ･･････････････････････････････････････3 Electrical wiring ･･･････････････････････････････････････････4 3. Option ････････････････････････････････････････････････ 5 3.1 Optional voltage(Option mark：Ｇ) ･･･････････････････････････5 3.2 English documentation(Option mark：Ｈ) ･･････････････････････5 3.3 Copper tube rust proof coating(Option mark：N1) ･････････････5 3.4 Product photo(Option mark：Y2) ･･････････････････････････････5 3.5 Operation signal output(Option mark：M1) ････････････････････5 3.6 Remote control & operation/fault signal output (Option mark：Ｍ) ･････････････6 4. Specifications ･･････････････････････････････････････････ 7 5. Dimensions ･･･････････････････････････････････････････ 11 6. Circuit diagram ････････････････････････････････････････ 12 7. CKD WARRANTY ･･････････････････････････････････････ 16 ＜SM-372637-A＞... -
Page 4: Introduction
No. POWER･･･operating voltage MAX.PRESS･･･max. inlet air pressure MAX.AIR TEMP･･･max. inlet air temperature AIR FLOW･･･flow late CURRENT･･･operating current MASS･･･mass REFRIGERANT･･･refrigerant type &mass SERIAL No.･･･serial number ２） Option mark ＧＸ〇〇〇〇−〇−ＡＣ〇〇〇Ｖ Ｇ：Optional voltage Ｈ：English documentation M1：Operation signal output (GX3108,GX5103,5104,5106,5108) Ｍ：Remote control & operation/fault signal output (GX3111,3115,3122,3137,GX5111,5115,5122,5137) N1：Copper tube rust proof coating Y2：Product photo 【Caution】 If the contents are not clear or there are any questions, please contact CKD or distributors before using the dryer. ＜SM-372637-A＞... -
Page 5: Electrical Wiring ･･･････････････････････････････････････････4
2.2 Electrical wiring １） S upply voltage should be within +/- 10% of optional voltage. ２） M ount an earth leakage breaker with over-load protection that has 30mA sensitivity current on the power supply line. ３） C onnect for power supply. • Make a hole for wiring on the rubber bushing at the upper back part of the dryer. ・Remove the front panel. Procedure ① The front panel is lifted upwards. ② The attachment guide is removed from the right-and-left side panel. ③ The front panel is lifted upwards and it extracts from the plug part of the base. • Connect the terminal block L1, L2,(L1,L2,L3 if three phase type), and the earth leakage breaker by wire. ... -
Page 6: Optional Voltage(Option Mark
４） H ow to connect earth wire • As power supply code connection, connect the earth wire to the terminal box PE and the earth terminal in the panel.（The D sort grounding construction by the electric construction contractor is required.） 【CAUTION】 Do not connect the earth wire to a water pipe, gas pipe, lightning conductor, etc. ３．Option 3.1 Optional voltage (Option mark：Ｇ) It becomes the specified power supply voltage. １） V oltage must be within ±10% of rated voltage. ２） M ount an earth leakage bleaker with over load protection (sensitivity current 30mA or less) to power supply. 3.2 English documentation (Option mark：Ｈ) This option provides the nameplates and instruction manuals written in English. 3.3 Copper tube rust proof coating (Option mark：N1) This option provides painting on copper pipes to improve corrosion resisting performance. 3.4 Product photo (Option mark：Y2) This option provides photos of the finish product together with the panel on which the construction and contractor names are identified. ... -
Page 7: Remote Control & Operation/Fault Signal Output
3.6 Remote control & operation/fault signal output(Option mark：Ｍ) ＜Model：GX3111,GX3115,3122,3137,GX5111,5115,5122,5137＞ Remote control and operation, alarm, dew point alarm is outputted. １） R emote control Select remote on the Local-Remote switch (SA03). Operation is non-voltage a-contact between D1 and D2. (Running：D1-D2 close) 【CAUTION】 • Must not operate Local-Remote switch during operation. ※Abnormal stop may be caused. • When remote switch is selected, operation is impossible to use operation panel. ２）Operation, Alarm, Dew point alarm output Operation signal ：non-voltage a-contact (Running：D3-D4 close) Alarm signal ：non-voltage c-contact (Alarm：D5-D7 close) Dew point alarm signal ：non-voltage c-contact (Dew point alarm：D8-D10 close) Contact capacity：AC125V,0.5A/DC30V,1A resistance load 【CAUTION】 • Even if dew point signal is outputted, dryer does not stop. • Donʼt use small direct current for contact. ＜SM-372637-A＞... -
Page 8: Specifications
４．Specifications These are specifications about optional voltage. Refer to standard instruction manual about other specifications. ＜ＧＸ３１０８−Ｇ−ＡＣ Ｖ＞ Voltage Operating current Starting current Recommendation breaker Mass (single phase) (A) (A) capacity AC-V 50Hz 60Hz 50Hz 60Hz (A) (kg) 115 4.1 4.5 16.1 14.9 10 44 127 3.7 4.1 14.6 13.5 10 52 220 2.3 ... - Page 9 ＜ＧＸ３１２２−Ｇ−ＡＣ Ｖ＞ Voltage Operating current Starting current Recommendation breaker Mass (single phase) (A) (A) capacity AC-V 50Hz 60Hz 50Hz 60Hz (A) (kg) 220 6.4 6.7 25.5 23.4 15 88 230 6.1 6.4 24.4 22.4 15 89 240 5.9 6.1 23.4 21.4 ...
- Page 10 ＜ＧＸ５１０３−Ｇ−ＡＣ Ｖ＞ Voltage Operating current Starting current Recommendation breaker Mass (single phase) (A) (A) capacity AC-V 50Hz 60Hz 50Hz 60Hz (A) (kg) 115 2.9 2.5 7.9 7.4 5 30 127 2.6 2.2 7.1 6.7 5 30 220 1.3 1.2 3.9 3.6 5 ...
- Page 11 ＜ＧＸ５１０８−Ｇ−ＡＣ Ｖ＞ Voltage Operating current Starting current Recommendation breaker Mass (single phase) (A) (A) capacity AC-V 50Hz 60Hz 50Hz 60Hz (A) (kg) 115 4.3 4.6 16.1 14.9 10 44 127 3.9 4.1 14.6 13.5 10 52 220 2.3 2.4 9.2 8.5 5 ...
-
Page 12: Dimensions
＜ＧＸ５１１５−Ｇ−ＡＣ Ｖ＞ Voltage Operating current Starting current Recommendation breaker Mass (three phase) (A) (A) capacity AC-V 50Hz 60Hz 50Hz 60Hz (A) (kg) 220 5.6 6.2 26.5 23.6 15 86 230 5.4 5.9 25.4 22.6 15 91 240 5.2 5.7 24.3 21.6 15 ... -
Page 13: Circuit Diagram
６．Circuit diagram １） GX3108,GX5103,5104,5106,5108 (Primary voltage：less than AC200V) -12- ＜SM-372637-A＞... - Page 14 ２） GX3108,GX5103,5104,5106,5108 (Primary voltage：more than AC200V) -13- ＜SM-372637-A＞...
- Page 15 ３） GX3111,3115,3122,GX5111 -14- ＜SM-372637-A＞...
- Page 16 ４） GX3137,GX5115,5122,5137 -15- ＜SM-372637-A＞...
-
Page 17: Ckd Warranty
④When the product is used improperly. ⑤When the malfunction or damage results from the modification of functions, structures or specifications which CKD is not involved in, or repairs which is not designated by CKD after delivery. ⑥When the damage can be avoided if Atlas Copcoʼs air compressor which CKD product is ...
