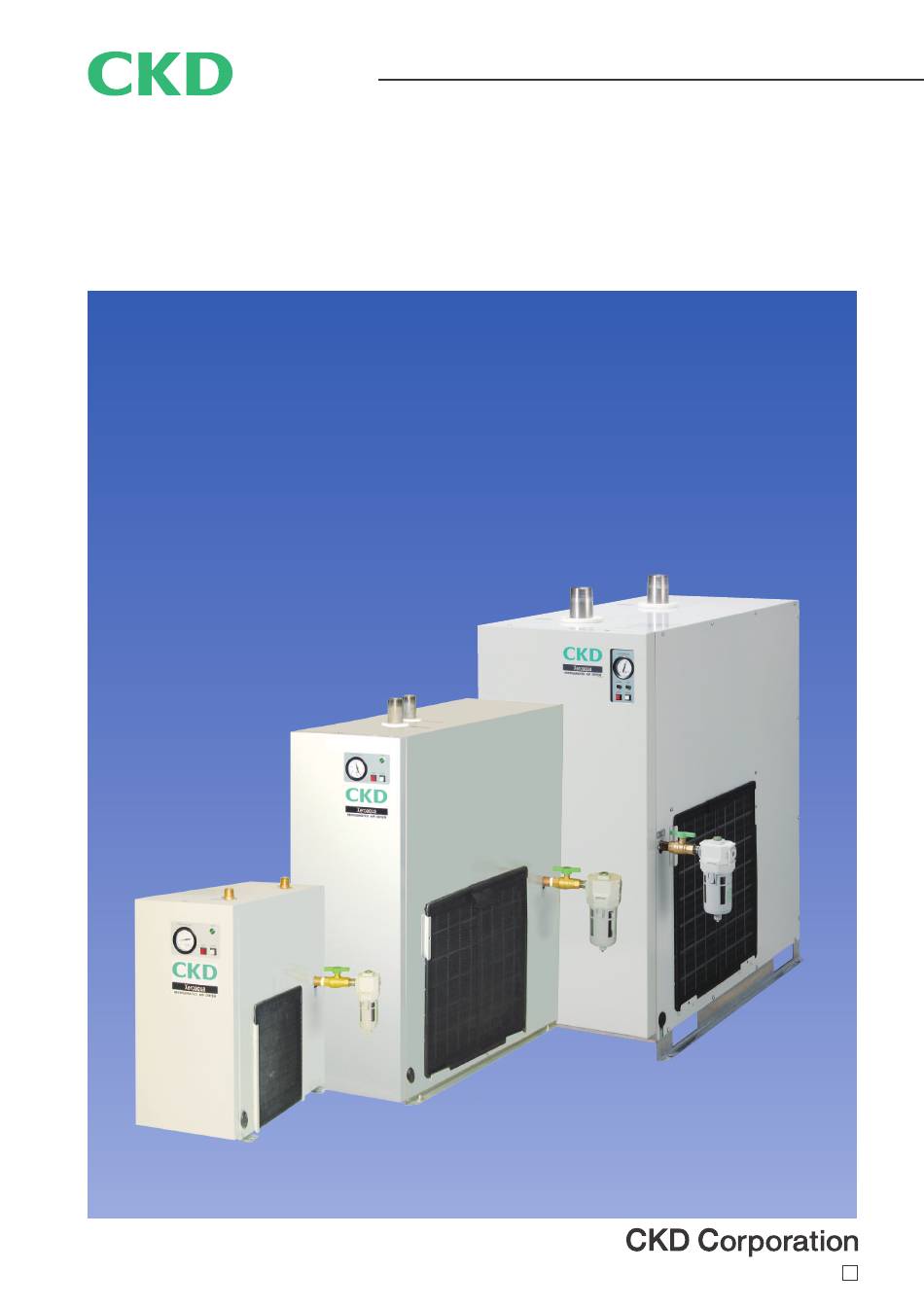

- Page 1 Refrigerating Type Air Dryer GX8200 Series CC-994A 6...
-
Page 2: Energy Saving
GX8200 Series with easy use and easy maintenance GX8200 Series / 2.2 to 75kW Refrigerating type air dryer High quality and high reliability Point Stainless steel heat exchanger No drain blockage compatible with oil-free air. Adoption of full bore type drain valve prevents blockage of Dust can be prevented with heat exchanger drain piping. -
Page 3: Easy Maintenance
Note : This system cannot be used for high pressure specifications (1.0 to 1.6MPa). Please consult with CKD. ［ Configuration of main line system (Inlet air temperature 50℃ , ambient temperature 35 ℃) ］ Dust filter equipped as standard... - Page 4 Refrigerating Type Air Dryer GX8200 Series ● Applicable air compressors : ~2.2kW, 3.7kW, 7.5kW, 15kW, 22kW, 37kW, 55kW, 65kW, 75kW, 95kW. JIS symbol Spec ifi c at io n s Model No. GX8203D GX8204D GX8208D GX8215D GX8222D GX8237D GX8255D GX8265D GX8275D GX8295D Applicable air compressor kW ~2.2 Compressed air...
- Page 5 GX8200 Series Selection guide Coefficients for model selection in GX8200 Series Standard air flow (m /min) Model No. GX8203D GX8204D GX8208D GX8215D GX8222D GX8237D GX8255D GX8265D GX8275D GX8295D Processing air flow 0.32 0.70 1.10 2.80 4.60 7.60 8.80 10.70 14.90 18.40...
- Page 6 GX8200 Series Dimensions GX8203D 4-ø10 Exhaust Suction Start-stop switch (with lamp) DT3010-15-W (87) Air outlet R1/2 Air inlet R1/2 (55.5) Note Note Insert the nylon tube of I.D. 5.7 to 6.0 mm directly to the drain cock. GX8204D GX8208D to GX8237D Detail of Operating panel Detail of Operating panel Exhaust...
-
Page 7: Series Dimensions
GX8200 Series Dimensions Dimensions GX8255D 45.4 Detail of Operating panel Exhaust 4-ø12 Evaporator pressure gauge Run lamp (green) Exhaust Start switch Stop switch Suction 1010 (185) Air inlet R2 Air outlet R2 DT4000-15-W Note (145) Note Insert the nylon tube of I.D. 5.7 to 6.0 mm directly to the drain cock. GX8265D Detail of Operating panel Exhaust... - Page 8 GX8200 Series Dimensions GX8275D Detail of Operating panel Evaporator pressure gauge 4-ø12 Exhaust Alarm lamp (red) Run lamp (green) Exhaust Start switch Stop switch Suction (185) Air inlet R2 1023 Air outlet R2 DT4000-15-W Note (145) Note Insert the nylon tube of I.D. 5.7 to 6.0 mm directly to the drain cock. GX8295D Detail of Operating panel Evaporator pressure gauge...
-
Page 9: Accessories (Optional)
GX8200 Series Flow characteristics Accessories (Optional) Exhaust duct set (Optional) Exhaust Exhaust duct set (Oblique line area) Suction Note The above figure shows a state in which mounted the exhaust duct to the dryer body. The exhaust duct and mounting screw set are available. Dimension (mm) Model No. - Page 10 GX8200 Series Flow characteristics • GX8204D • GX8203D Flow characteristics Flow characteristics 30.0 30.0 Inlet air pressure Inlet air pressure 0.5MPa 0.7MPa 1.0MPa 0.5MPa 0.7MPa 0.2MPa 0.2MPa 1.0MPa 25.0 25.0 20.0 20.0 15.0 15.0 10.0 10.0 Treated flow rate (m /min) Treated flow rate (m /min)
- Page 11 GX8200 Series Flow characteristics Flow characteristics • GX8265D • GX8255D Flow characteristics Flow characteristics 30.0 30.0 Inlet air pressure Inlet air pressure 0.5MPa 0.7MPa 0.5MPa 0.7MPa 1.0MPa 0.2MPa 0.2MPa 25.0 25.0 1.0MPa 20.0 20.0 15.0 15.0 10.0 10.0 Treated flow rate (m /min) Treated flow rate (m /min)
- Page 12 Main line unit Saturated vapor rate table (relative humidity 100%) (Unit: g/m Temperature at 1°C unit 82.8 86.7 90.8 95.0 95.5 51.1 53.7 56.4 59.3 62.2 65.3 68.5 71.9 75.4 79.0 30.3 32.0 33.7 35.6 37.6 39.6 41.7 43.9 46.2 48.6 17.2 18.3...
-
Page 14: Safety Precautions
Main line component Safety precautions Always read this section before starting use. Refer to Pneumatic, Vacuum and Auxiliary Components No.CB-024SA for general precautions. Refrigerated air dryer GX8200 Series ○○○○○○○○○ Manufacturer's Liability WARNING Illegal modifications or repairs using nonstandard parts by user. -
Page 15: Installation And Adjustment
Series Transportation WARNING Transportation by crane During transport, this product shall not be laid on its Supporting plate The supporting plate (B) must be side, and vibration and impact shall not be applied. 100 mm longer than the dryer Transportation by forklift width (A). - Page 16 Series Use piping that sufficiently withstands working Maintenance space pressure. Check that air does not leak from connections. CAUTION Ensure the following space to provide good ventilation Galvanized steel pipes (white pipes) are recommended and make maintenance and inspection easier. for pipe materials.
- Page 17 M E M O M E M O...
- Page 18 M E M O M E M O...
- Page 19 M E M O M E M O...
-
Page 20: Related Products
GX8200 Series Related products Related products Flow sensor for compressed air : PFD Series Catalog no. CB-024SA ■ Alarm output at 2 points according to selection of either NPN or PNP. ■ One alarm output can be converted to an accumulated pulse output with an easy operation.
