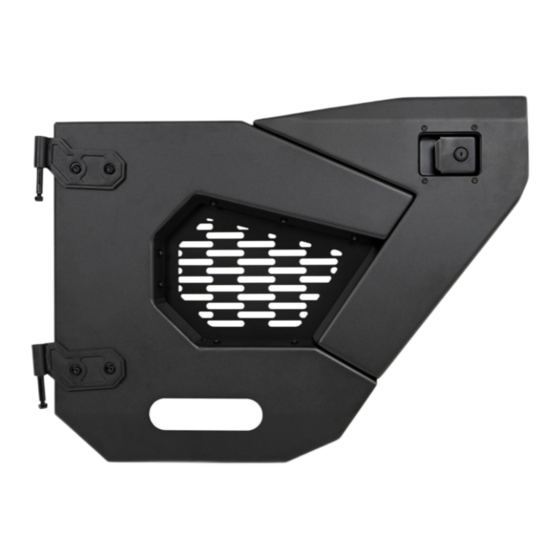

JEEP JL/JT ELITE HALF
DOORS (REAR)
2018+ JEEP JL
2020+ JEEP JT
HDJL-02R
TOOLS
REQUIRED
- 5mm Allen Bit
-T40, T50 Torx Bit
-8mm, 13mm Socket
-13mm Wrench
-Ratchet
WARNINGS/CAUTIONS BEFORE STARTING INSTALLATION
Before you install this kit —
instructions, warnings, cautions, and notes contained in
this installation instruction guide. Consult your vehicle
owner's manual for proper disconnection of electrical and
lifting of vehicle if required for installation of this product.
This install may require some technical skills and
knowledge of basic mechanical work. If you do not feel that
you are capable of performing this install please take this
product to a trained professional.
After reading this guide please contact us with any
questions or concerns before installing product.
Customer Service: 855-680-9595
DV8 Offroad is not responsible for any bodily injury or harm to you
or your vehicle as a result of an improper install.
6400 SYCAMORE CANYON BLVD.
RIVERSIDE, CALIFORNIA 92507
855-680-9595
WWW.DV8OFFROAD.COM
SKILL
LEVEL
- Novice/Intermediate
- 1 (you) to 2 persons
Little skill level required, you can
easily install it by yourself however,
additional help will be useful
Read and understand all
PRODUCT
INSTALLATION
TIME
- 1.5 Hours
Time to install this should only
take about an hour and a half
Proper installation of this kit required knowledge of the factory
recommended procedures for removal and installation of original
equipment components. We recommend that the factory shop manual
and any special tools needed to service your vehicle be on hand during
the installation. Installation of this kit without proper knowledge of the
factory recommended procedures may affect the performance of these
components and the safety of the vehicle
• Always wear eye protection when operating power tools
Inspect all contents of this package to make sure product is not damaged
and all installation hardware has been included. If parts are missing from
kit, please be prepared to provide the following information
1. Name of purchase location
2. Bar Code on side of box
3. Date above bar code
4. Date inside box cover
NEED HELP?
MANUAL
REQUIRED
855-680-9595
Advertisement
Table of Contents
Related Manuals for DVB HDJL-02R
Summary of Contents for DVB HDJL-02R

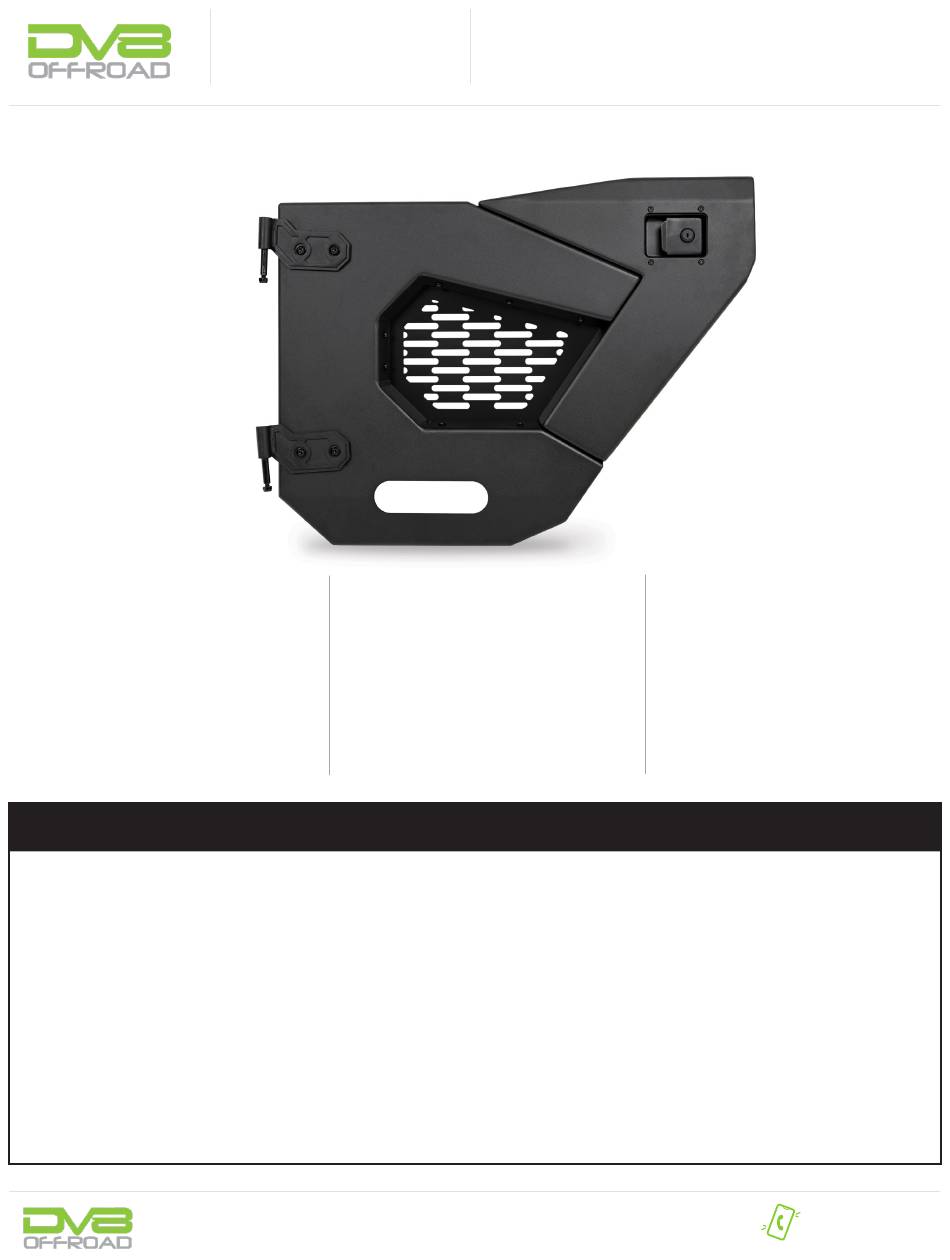

- Page 1 PRODUCT INSTALLATION MANUAL RIVERSIDE, CALIFORNIA 92507 855-680-9595 WWW.DV8OFFROAD.COM JEEP JL/JT ELITE HALF DOORS (REAR) 2018+ JEEP JL 2020+ JEEP JT HDJL-02R TOOLS REQUIRED SKILL LEVEL TIME REQUIRED - 5mm Allen Bit - Novice/Intermediate - 1.5 Hours -T40, T50 Torx Bit...
- Page 2 INSTALLATION MANUAL STEP 1 Begin by unpacking all items and inspect- ing for missing pieces or damage. If you have any concerns, please contact the com- pany the product was purchased from. HARDWARE INCLUDED (8) M8x25 Allen Bolts (8) M5 Nuts (16) M8 Flat Washers (8) M8 Split Washers (8) M8 Nuts...
- Page 3 INSTALLATION MANUAL STEP 4 Remove the nuts off the half doors using a 13mm socket and save for installation of the doors on the vehicle in later steps. STEP 5 Moving to the vehicle, begin removing the door by disconnecting the wire connector located behind the trim panel where the door straps lead.
- Page 4 INSTALLATION MANUAL STEP 6 Now that the wiring harness has been disconnected, lift up on the door strap to remove it from the hook. Using a T40 torx bit, remove the door check. Take caution not to damage the vehicle as the doors may swing towards the front fender.
- Page 5 INSTALLATION MANUAL STEP 8 Lift the DV8 half door and carefully align the studs into the door mounts, and loosely se- cure the nuts to the bottom the studs with a 13mm socket. STEP 9 Open the latch on the door to the open posi- tion and slowly close the doors to the latch mechanism on the Jeep to check fitment.
- Page 6 INSTALLATION MANUAL STEP 10 With the door closed, lift up slightly on the front section of the door to apply pre-load and secure the hinges using a 5mm allen head and 13mm wrench. STEP 11 Attach the door strap to the hook to prevent it from swinging completely open.
- Page 7 INSTALLATION MANUAL STEP 12 Install trim piece by pushing towards the front of the vehicle until it clips into place. STEP 13 Secure the M8 Nuts on the hinges using a 13mm wrench. STEP 14 Double check fitment and all hardware is secure.
