Summary of Contents for NXP Semiconductors HVP-56F81768

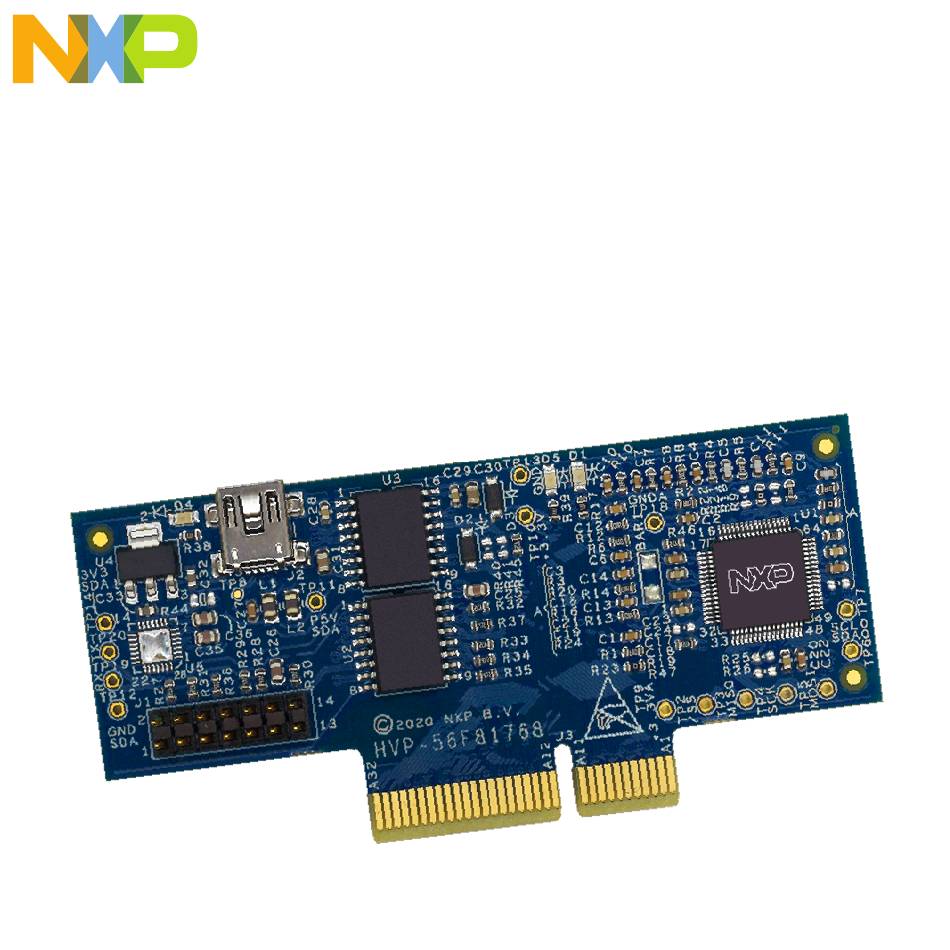

- Page 1 QUICK START GUIDE HVP-56F81768 HVP-56F81768 HIGH-VOLTAGE DEVELOPMENT PLATFORM...

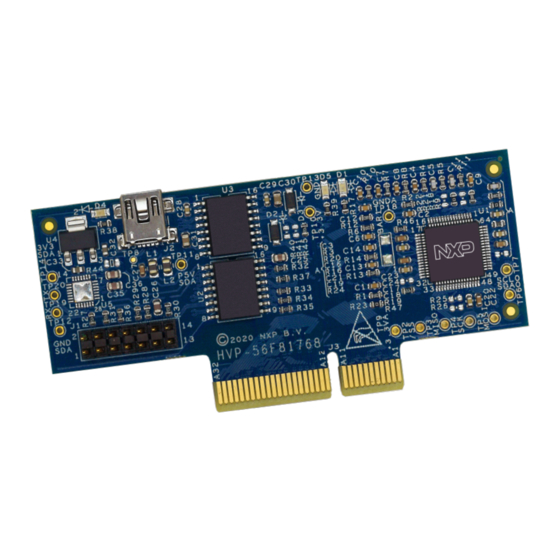

- Page 2 GET TO KNOW THE HVP-56F81768 USB Mini for USB Mini for Isolated Power Isolated Power MC56F81768 MC56F81768 Power Supply Power Supply Supply Supply JTAG Isolator JTAG Isolator Primary Primary Interface Interface Main Board Main Board Interface Interface Figure 1: HVP-56F81768 Callouts...
- Page 3 QUICK START GUIDE HVP-56F81768 INTRODUCTION TO HVP-56F81768 HIGH-VOLTAGE DEVELOPMENT PLATFORM The HVP-56F81768 controller card is a development platform for the DSC 56F8xxxx family, which in combination with one of HVP-MC3PH high-voltage development platform, provides ready-made software and hardware development for high-voltage motor control and power conversion applications.
- Page 4 GET STARTED Download installation software and documentation under “Jump Start Your Design” at www.nxp.com/HVP-56F81768. SUPPORT Visit www.nxp.com/support for a list of phone numbers within your region. WARRANTY Visit www.nxp.com/warranty for complete warranty information. www.nxp.com/HVP-56F81768 NXP, the NXP logo and CodeWarrior are trademarks of NXP B.V. All other product or service names are the property of their respective owners.
