88 5252 95
Kitchen Cart
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damage occurring to the parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.

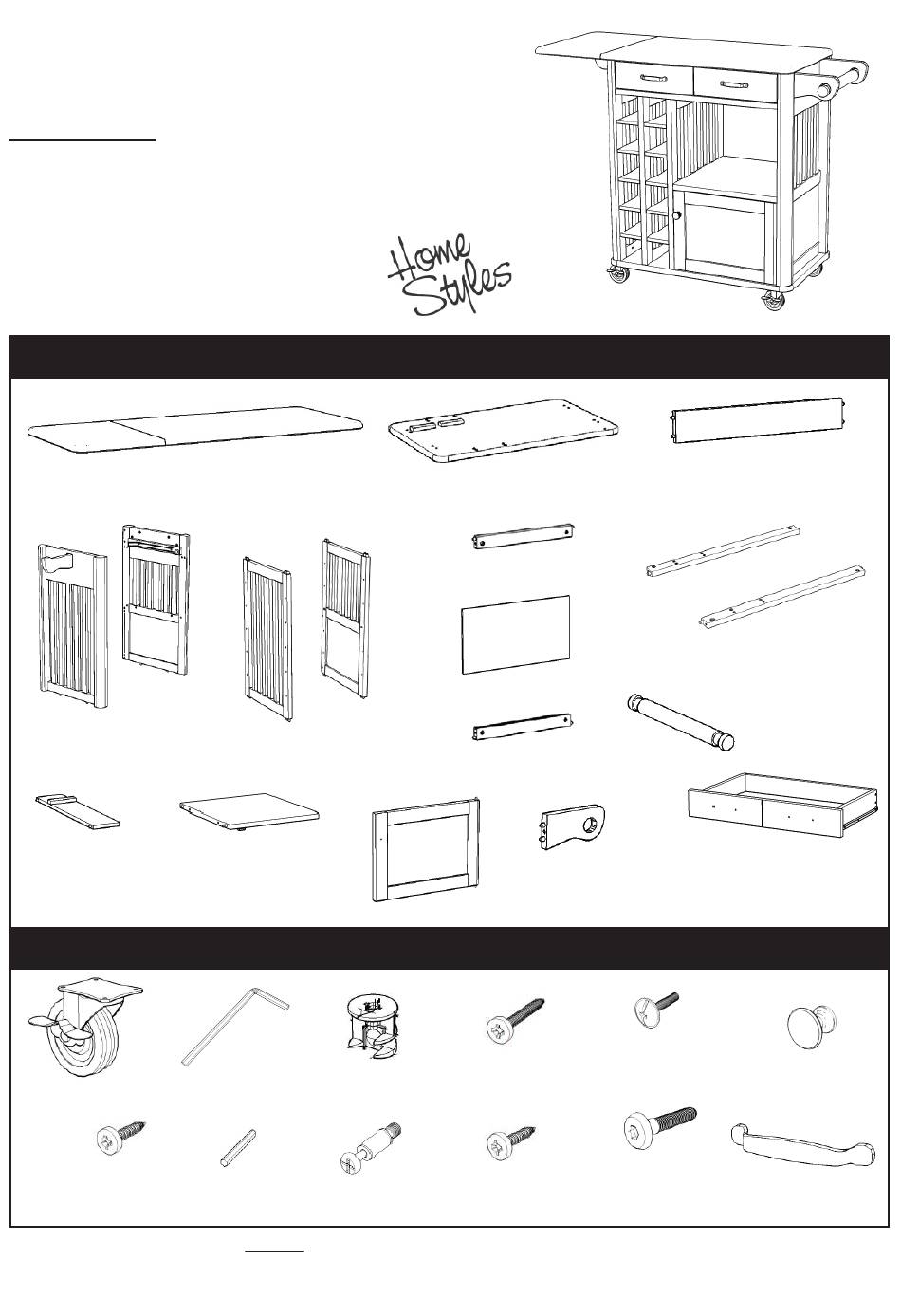

Part List
E.
Side Frame
D.
1 Pc.
Side Frame
1 Pc.
M.
N.
Wine Shelf
Shelf
10 Pcs.
1 Pc.
Hardware List
Caster
two lock
two non-lock
4 Pcs.
M4x16
Wood Screw
for Caster
16 Pcs. (+1 extra)
Tools required for assembly : Phillips screwdriver
A.
Top
1 Pc.
G.
F.
Middle Frame
Middle Frame
1 Pc.
1 Pc.
O.
Door
1 Pc.
Hex Wrench
Cam Lock
1 Pc.
16 Pcs. (+1 extra)
Cam Lock Screw
Small Hex Wrench
16 Pcs. (+1 extra)
1 Pc.
Home Styles Consumer Assistance: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319
B.
Base
1 Pc.
H.
Back Stretcher
1 Pc.
I.
Back Panel
1 Pc.
J.
Back Stretcher
1 Pc.
P.
Arm
2 Pcs.
M3.5x25
Wood Screw (long)
8 Pcs. (+1 extra)
M3.5x16
Wood Screw (short)
6 Pcs. (+1 extra)
C.
Back Stretcher
1 Pc.
K.
Back Stretcher
1 Pc.
L.
Front Stretcher
1 Pc.
Q.
Round Arm
1 Pc.
R.
Drawer
1 Pc.
(Please refer to the last page of these
instructions for drawer assembly steps.)
M4x25
Machine Screw
5 Pcs.
M6x40
Pull Handle
Head Cap Bolt
2 Pcs.
6 Pcs. (+1 extra)
Knob
1 Pc.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 88 5252 95 and is the answer not in the manual?

Questions and answers

Summary of Contents for Home Styles 88 5252 95

  • Page 1 Small Hex Wrench 2 Pcs. for Caster 6 Pcs. (+1 extra) 6 Pcs. (+1 extra) 16 Pcs. (+1 extra) 1 Pc. 16 Pcs. (+1 extra) Tools required for assembly : Phillips screwdriver Home Styles Consumer Assistance: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
  • Page 2 Assembly Instructions 2 IMPORTANT * Please keep Hex Wrench in a safe place as you may need to tighten up the Head Cap Bolts in the future. * Do not tighten up all the bolts until each part is properly assembled. * Use a soft cloth between these parts and the fl...
  • Page 3 Assembly Instructions 3 STEP 4 Attach Back Stretcher (C) to unit. Attach Shelf (N) to unit with Cam Locks. Cam Lock STEP 5 Attach Back Stretcher (H) and (J) to unit with Cam Locks. Slide Back Panel (I) into place. Cam Lock Cam Lock STEP 6...
  • Page 4 Assembly Instructions 4 STEP 7 With Locking Casters to the front, attach Base (B) to unit with Head Cap Bolts. (see Figure 4) Arrow Sticker Figure 4 Locking Caster Cam Lock Non-Locking Caster Head Cap Bolt STEP 8 Turn the unit to its upright position. Attach Arms (P) to unit with Head Cap Bolt Head Cap Bolts.
  • Page 5 Assembly Instructions 5 Drawer R STEP 1 Attach R1, R2 and R3 using a Phillips screwdriver and long wood screws (4X), tighten halfway. Attach R1, R2 and R4 using MAKE SURE ROLLER Figure 1 long wood screws (4X), tighten halfway. IS ON THE BACK (see Figure 1) STEP 2...
