88 5522 9502
Kitchen Cart
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damage occurring to the parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensur
completed product as it was designed.

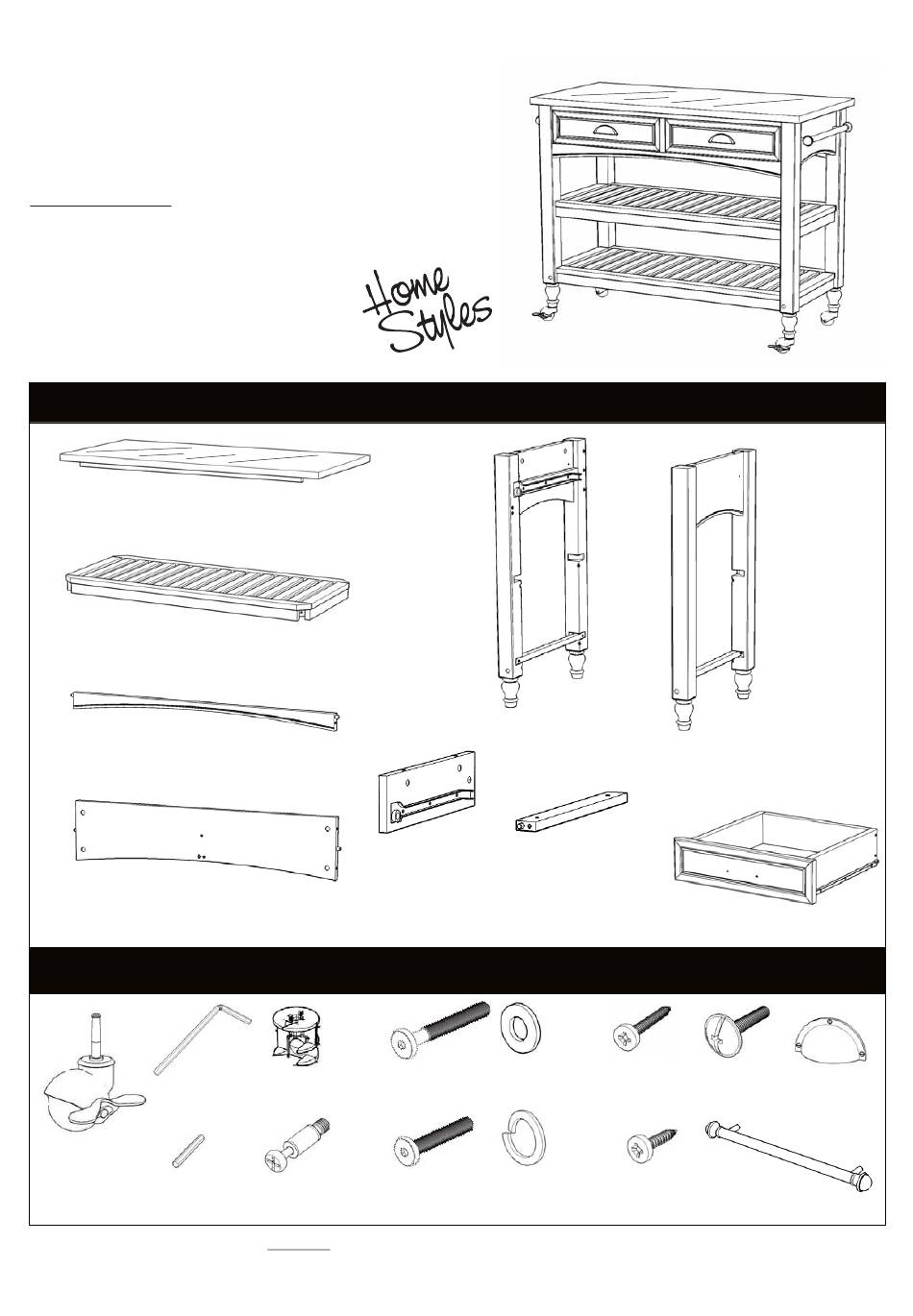

Part List
A.
Top
1 pc.
B.
Shelf
2 pcs.
C.
Front Stretcher
1 pc.
D.
Back Stretcher
1 pc.
Hardware List
Hex Wrench
1 pc.
Caster
Two with lock and
Two without lock
Small Hex Wrench
4 pcs.
1 pc.
Tools required for assembly : Phillips screwdriver
Home Styles Consumer Assistance : www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319
e a
G.
Side Frame
1 pc.
E.
Divider
1 pc.
M6x50
Head Cap Bolt (long)
Cam Lock
8 pcs. (+1 extra)
15 pcs. (+1 extra)
M6x30
Cam Lock Screw
Head Cap Bolt (short)
6 pcs. (+1 extra)
15 pcs. (+1 extra)
F.
Stretcher
1 pc.
M3.5x25
Flat Washer
Wood Screw (long)
8 pcs. (+1 extra)
16 pcs. (+1 extra)
M3.5x16
Spring Washer
Wood Screw (short)
12 pcs. (+1 extra)
8 pcs. (+1 extra)
Tools recommended for assembly : Level
H.
Side Frame
1 pc.
I.
Drawer
2 pcs.
(Please refer to the last page of these
instructions for drawer assembly steps.)
M4x20
Pull Handle
Machine Screw
2 pcs.
4 pcs.
Side Bar
2 pcs.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 88 5522 9502 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Home Styles 88 5522 9502

  • Page 1 12 pcs. (+1 extra) 8 pcs. (+1 extra) 2 pcs. 6 pcs. (+1 extra) 1 pc. 15 pcs. (+1 extra) Tools required for assembly : Phillips screwdriver Tools recommended for assembly : Level Home Styles Consumer Assistance : www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
  • Page 2 Assembly Instructions 2/6 IMPORTANT * Please keep Hex Wrench in a safe place as you may need to tighten up the Head Cap Bolts in the future. * Do not tighten up all the bolts until each part is properly assembled. * Use a soft cloth between these parts and the floor.
  • Page 3 Assembly Instructions 3/6 STEP 3 Attach Back Stretcher (D) to unit with Cam Locks. (See Figure 3) Cam Lock Figure 3 STEP 4 Attach Front Stretcher (C) to unit with Cam Lock. Cam Lock Cam Lock STEP 5 Attach Side Frame (G) to unit with Cam Locks.
  • Page 4 Assembly Instructions 4/6 STEP 6 Attach Shelves (B) to unit with Head Cap Bolts (long), Spring Washers and Flat Washers. (See Figure 4) Flat Washer Spring Washer Head Cap Bolt (long) Figure 4 Cam Lock STEP 7 Attach Side Frame (H) to unit with Head Cap Bolt (long) Cam Locks, Head Cap Bolts (long), Spring Washer...
  • Page 5 Assembly Instructions 5/6 STEP 8 Attach Casters underneath Side Frames (G) and (H) with Locking Casters to the front. Locking Caster Non-Locking Caster Side Bar STEP 9 Cam Lock Turn the unit to its’ upright position. Attach Side Bars to unit with Head Cap Bolts (short).
  • Page 6 Assembly Instructions 6/6 Drawer (I) STEP 1 Attach I1, I2 and I3 using a Philips screwdriver and Figure 1 long Wood Screws (4X), tighten halfway. MAKE SURE ROLLER Attach I1, I2 and I4 using long Wood Screws (4X), IS ON THE BACK tighten halfway.
