88 5535 951
Kitchen Cart
Soft Mahogany Finish
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occuring to the wood parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.

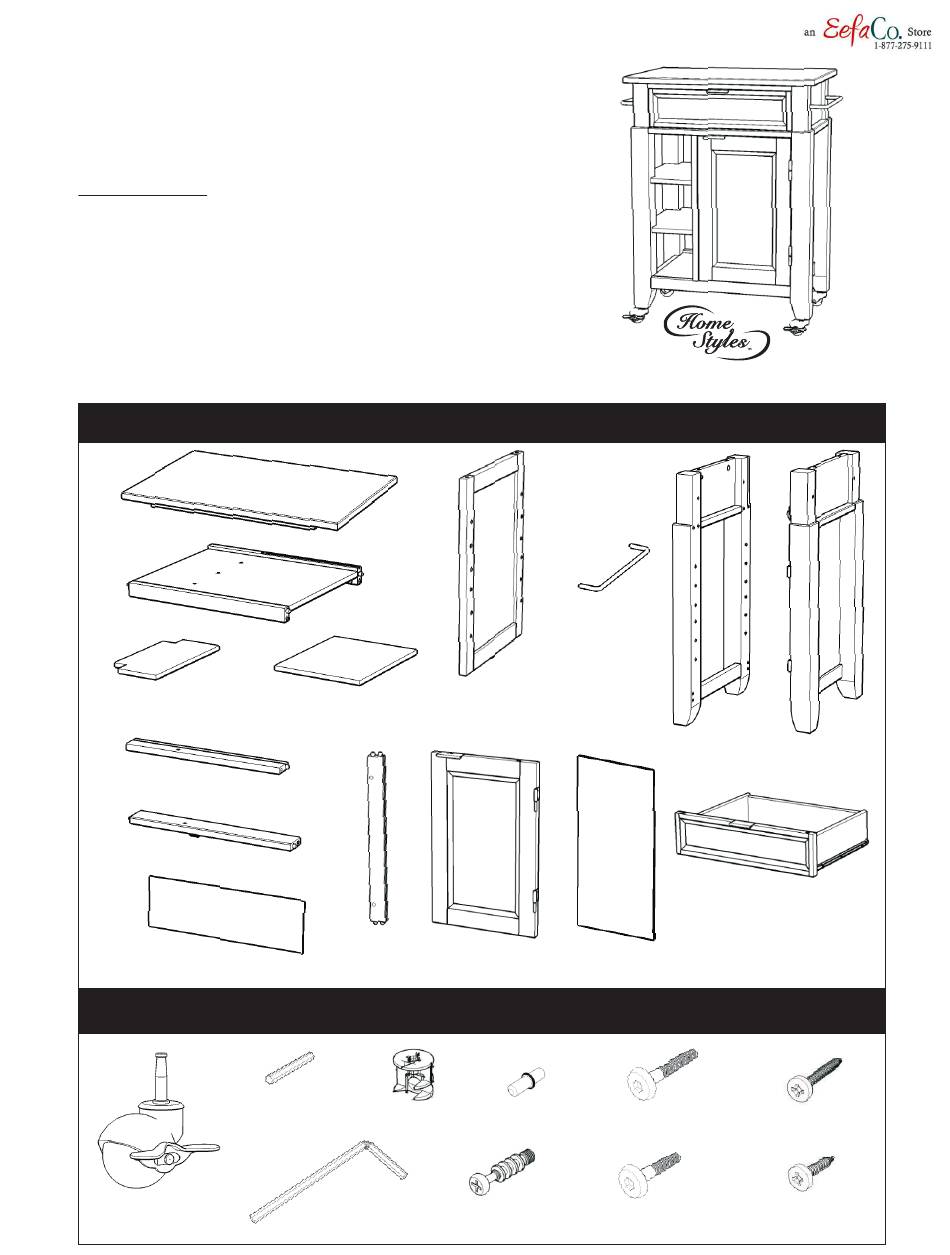

Part List
A.
Top
1 pc.
B.
Bottom
1 pc.
H.
G.
Shelf
Shelf
2 pcs.
2 pcs.
I.
Back Stretcher
1 pc.
J.
Front Stretcher
1 pc.
K.
Back Panel
1 pc.
Hardware List
Caster
two lock
two non-lock
4 pcs.
C.
Middle Panel
1 pc.
L.
M.
Rail
Door
1 pc.
1 pc.
Small
Hex Wrench
Cam Lock
1 pc.
12 pcs.(+1 extra)
Hex Wrench
1 pc.
Casual Attire For Today's Home
D.
Side Bar
2 pcs.
N.
Back Panel
1 pc.
Head Cap Bolt (long)
Adjustable Pin
4 pcs. (+1 extra)
16 pcs. (+2 extra)
Head Cap Bolt
Cam Lock Screw
4pcs. (+1 extra)
12 pcs.(+1 extra)
E.
F.
Side Panel
Side Panel
1 pc.
1 pc.
O.
Drawer
1 pc.
(Drawers require assembly.
Please refer to the last page
of these assembly instructions.)
Wood Screw (Long)
8 pcs. (+1 extra)
Wood Screw
6 pcs. (+1 extra)
