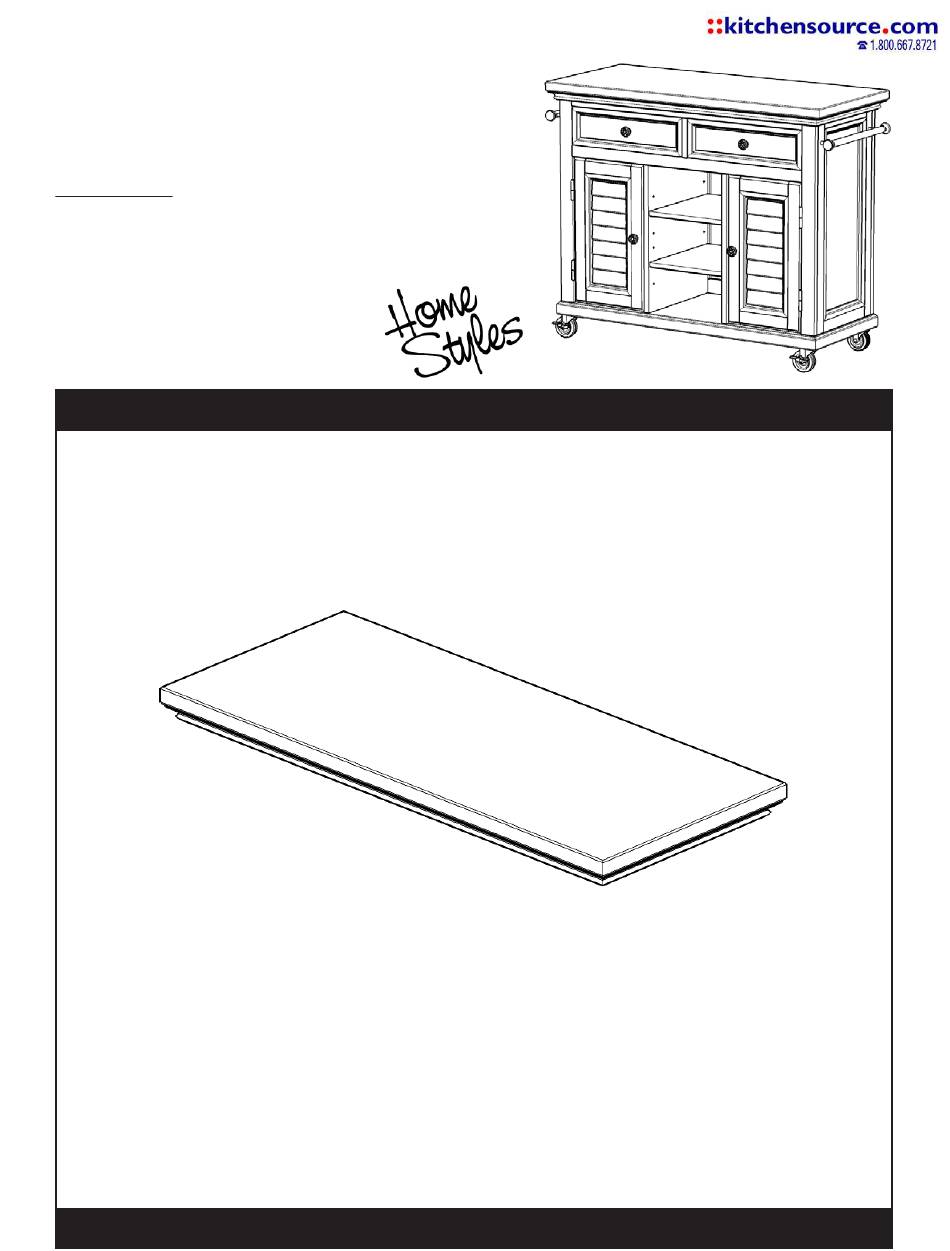

88 5542 951
Bermuda
Kitchen Cart
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occuring to the wood parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.
For assembly see instructions in carton : 88 5542 952
A.
Top
1 pc.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Home Styles Bermuda 88 5542 951
Summary of Contents for Home Styles Bermuda 88 5542 951
- Page 1 88 5542 951 Bermuda Kitchen Cart IMPORTANT NOTE Carefully remove all the parts from the carton and put them individually on a soft cloth to prevent scratches or other damages occuring to the wood parts. We have taken great care in the design of this product and request that you carefully and strictly follow our assembly instructions to ensure a completed product as it was designed.
- Page 2 88 5542 952 Bermuda Kitchen Cart IMPORTANT NOTE Carefully remove all the parts from the carton and put them individually on a soft cloth to prevent scratches or other damages occuring to the wood parts. We have taken great care in the design of this product and request that you carefully and strictly follow our assembly instructions to ensure a completed product as it was designed.
- Page 3 Assembly Instruction 2 / 5 IMPORTANT * Do not tighten up all the screws until each part is properly assembled. * You should keep Hex Wrench in a safe place as you may need to tighten up the Head Cap Bolts in the future. * Use a soft cloth between these parts and the fl...
- Page 4 Assembly Instruction 3 / 5 STEP 3 Cam Lock Attach Side Panel (C) to Bottom (B) with Cam Locks and attach Back Rail (O) to Side Panel (C) with Cam Lock. (see Figure 3) Attach Middle Panel (E) to Back Post (R) and Middle Panel (F) to Back Post (S).
- Page 5 Assembly Instruction 4 / 5 Head Cap Bolt Cam Lock Cam Lock Adjustable Pin Figure 6 Figure 4 Figure 5 STEP 5 Attach Side Bars (P) to side panels with Head Cap Bolts. (see Figure 4) Place Top (A) onto the unit and attach with Cam Locks. Insert Adjustable Pins into side panels and middle panels at the desired level and place Shelves (K) and (L) into position.
- Page 6 Assembly Instruction 5 / 5 Drawer (T) STEP 1 Figure 1 Attach T1 to T3 and T4, MAKE SURE ROLLER using a Phillips screwdriver and IS ON THE BACK long wood screws (4X), tighten halfway. Attach T2 to T3 and T4 using STEP 2 long wood screws (4X), tighten Figure 2...
