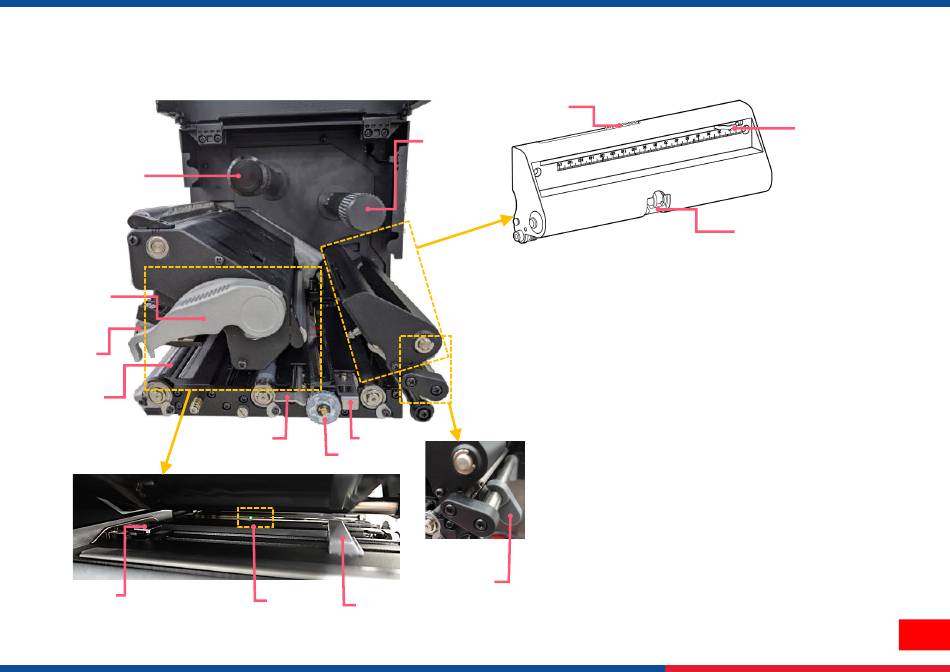

2.4.2 Interior View

1
6
7
8
9
12
2
11
10
13
14
3
1.
Ribbon rewind spindle
2.
Ribbon supply spindle
3.
Rear gap sensor LED position adjustment bar
4.
Top black-mark sensor position adjustment bar
5.
Rear label holder lock
6.
Printhead release lever
7.
Printhead
8.
Platen roller
9.
Peel-off roller release lever
10.
Media sensor position adjustment knob
11.
Rear label release button
12.
Front gap sensor
13.
Media sensor LED indicator
(Green = rear gap sensor/ Red = back black-mark
sensor)
14.
Front label guide
15
15.
Rear label guide
4
5
15
