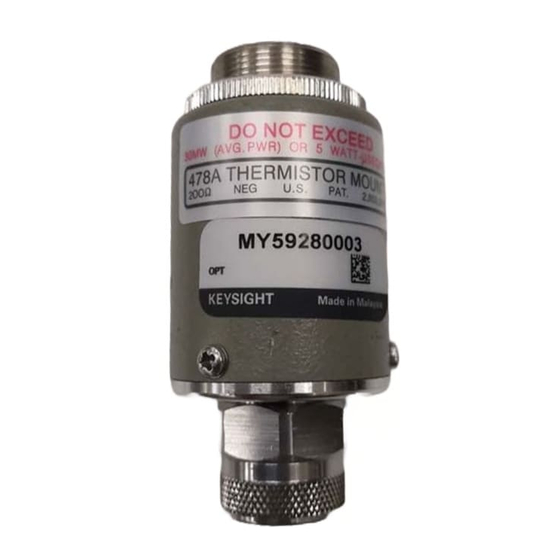

- Page 1 Keysight 478A Option H83 Thermistor Mount Manual Modifications Operating and Service Manual...
- Page 2 Use this manual with the following document: Operating and Service Manual Part Number 00478-90021...
- Page 4 ANY INFORMATION CONTAINED HEREIN, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. KEYSIGHT SHALL NOT BE LIABLE FOR ERRORS OR FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES IN CONNECTION WITH THE FURNISHING, USE, OR PERFORMANCE OF THIS DOCUMENT OR ANY INFORMATION CONTAINED HEREIN.
- Page 5 Safety Notes The following safety notes are used throughout this document. Familiarize yourself with each of these notes and its meaning before performing any of the procedures in this document. WARNING Warning denotes a hazard. It calls attention to a procedure which, if not correctly performed or adhered to, could result in injury or loss of life.
-
Page 7: Table Of Contents
Contacting Keysight ........ -
Page 9: General Information
General Information Thermistor Mount Manual Modifications... -
Page 10: Description
Keysight Standards Lab for calibration at the following frequencies: 1, 3, 10, 30, 50, 100, 300 and 1000 MHz. The 478A Option H83 is tested to have a VSWR ≤ 1.05 at the frequency of 50 MHz. The calibration is ISO compliant but does not inlcude 17025 accredited cal. -
Page 11: Specifications
Power Meters The 478A Option H83 comes with calibration data for 1, 3, 10, 30 ,50, 100, 300, and 1000 MHz from a Standards Calibration Lab, which is traceable to NIST. All other specifications in the 478A Operating and Service Manual, Table 1 apply except where 431 use is referenced in the standard manual. -
Page 12: Mount Calibration
Mount Calibration Data The calibration factors are essentially the same (within 1%) as the Effective Efficiency for the 478A Option H83 over the 1 MHz to 1000 MHz frequency range. Both vary less than the measurement uncertainties that apply to any calibration data, and typically remain between 98% and 100%. -
Page 13: Operation
DC signals to and from the mount (432 type) are suitable for use with the 478A Option H83. Thus, paragraphs 16, 26 through 30, 43, 44, 50, 52, and 53 in the Operating Note, as well as Figures 4 and 5 do not apply. -
Page 14: Testing
2. CAL FACTOR: Carefully zero and set the 432A range switch to the 1 mW range on the 478A Option H83. Connect the 478A Option H83 to a precision 1 mW / 50 MHz power reference such as the 435A/B or 436A power meters or the 435A Option K05 dual power reference. -
Page 15: Maintenance
General Information Maintenance Maintenance Follow all precautions for the Model 478A Option H83, as with the standard Model 478A, as outlined in the Operating and Service Manual (00478-90021). The standard 478A Thermistor Mounts THERMISTOR MATCH and REPAIR procedures generally apply to the 478A Option H83. -
Page 16: Replaceable Parts
General Information 478A Option H83 Replaceable Parts Replaceable Parts Make the following changes to the 478A Operating and Service Manual (00478-90021), TABLE 3 “REPLACEABLE PARTS”. When ordering a replacement RF connector or Thermistor Assembly, refer to Table 4 Figure 3 below. -
Page 17: Safety And Regulatory Information
(grounded) side of the ac power supply. Shipping Instructions You must always call the Keysight Technologies Instrument Support Center to initiate “Contacting Keysight” on service before retuning your instrument to a service office. See page 14. -
Page 18: Compliance With German Noise Requirements
ISO 7779 nach DIN 45635 t. 19 Declaration of Conformity For a copy of the manufacturer’s Declaration of Conformity for this apparatus, contact your local Keysight Technologies office or sales representative. See “Contacting Keysight” on page Statement of Compliance This product has been designed and tested in accordance with the standards listed on the Manufacturer’s Declaration of Conformity, and has been supplied in a safe condition. -
Page 19: Warnings
Do not proceed beyond a WARNING notice until the indicated conditions are fully understood and met. Warnings applicable to this instrument are: To prevent electrical shock, disconnect the Keysight Technologies WARNING instrument from mains before cleaning. Use a dry cloth or one slightly dampened with water to clean the external case parts. -
Page 20: Cautions
General Information 478A Option H83 Safety and Regulatory Information WARNING If this product is not used as specified, the protection provided by the equipment could be impaired. This product must be used in a normal condition (in which all means for protection are intact) only. -
Page 21: Instrument Markings
478A Option H83 General Information Safety and Regulatory Information Instrument Markings When you see this symbol on your instrument, you should refer to the instrument’s instruction manual for important information. This symbol indicates hazardous voltages. The laser radiation symbol is marked on products that have a laser output. -
Page 22: Contacting Keysight
478A Option H83 General Information Contacting Keysight Contacting Keysight By internet, phone, or fax, get assistance with all your test and measurement needs. This information supersedes all prior contact information. Online assistance: www.keysight.com/find/assist Americas Brazil Canada Mexico United States (tel) 1800 254 2440 Ext 2703... - Page 23 This information is subject to change without notice. © Keysight Technologies 2000 - 2014 August 2014 *00478-90035* 00478-90035 www.keysight.com...
