Gotharman zaTurn Manual

Modular synthesizer
Hide thumbs Also See for zaTurn:

Advertisement

Quick Links

Download this manual

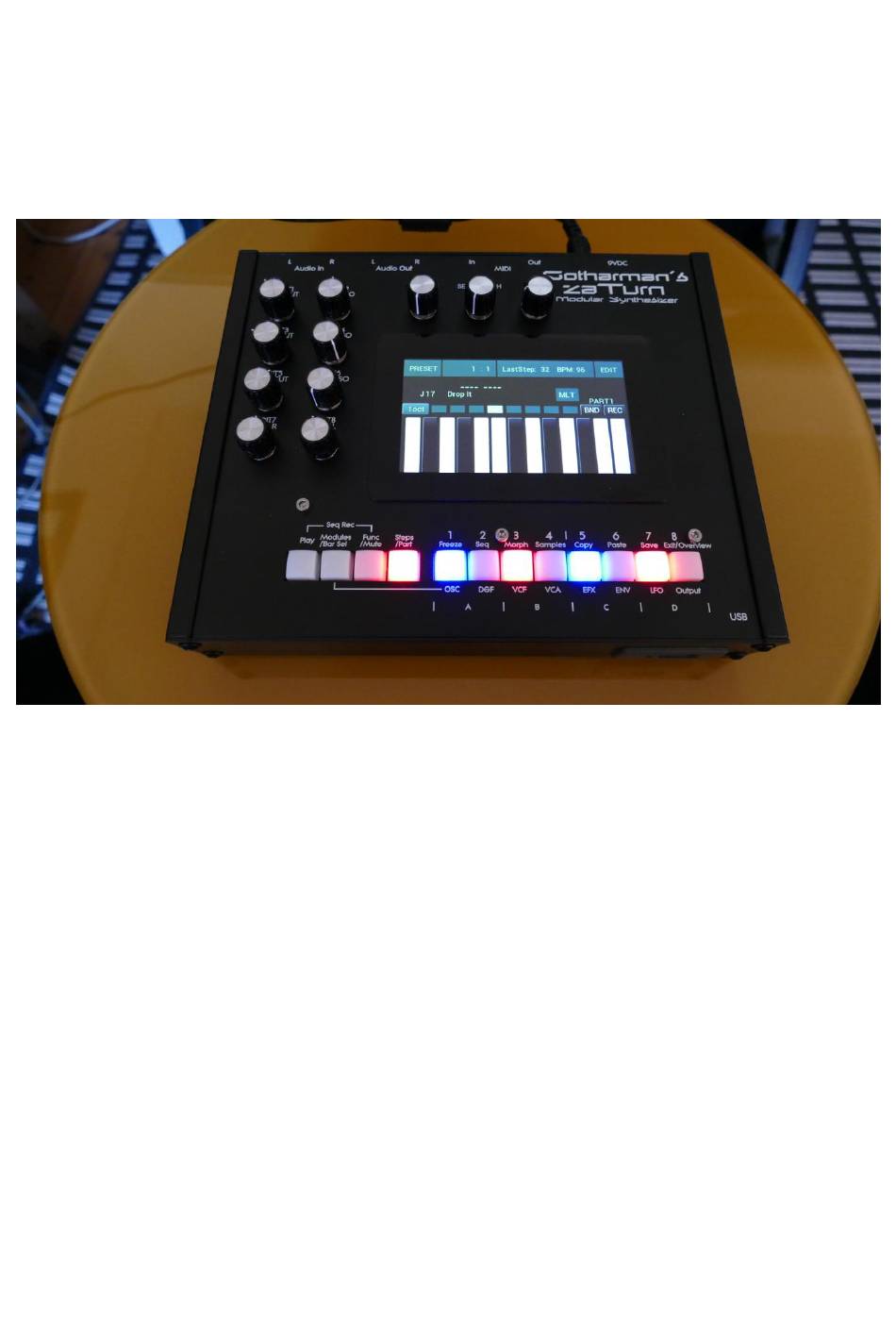

Gotharman's zaTurn
Modular Synthesizer
Update Manual 7.71
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the zaTurn and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gotharman zaTurn

Summary of Contents for Gotharman zaTurn

  • Page 1 Gotharman’s zaTurn Modular Synthesizer Update Manual 7.71...

  • Page 2: Table Of Contents

    Table of Contents Bug Fixes............................... 3 New “Zaturn Digital” model! ....................... 4 Linear FM and Phase Modulation! ....................... 5 New Digital Filters! ..........................7 New Favorite Sound Functions! ......................9 Parameter Fine Adjust ........................10...

  • Page 3: Bug Fixes

    Bug Fixes -Sometimes the SamplePitch 2 Large effect would not reset correctly at preset change. This has now been fixed.

  • Page 4: New "Zaturn Digital" Model

    New “Zaturn Digital” model! A new more affordable Zaturn synthesizer is now available. This can’t get any analog filters installed. Instead it is using the new digital filters, which are explained later in this manual. Each of these new filters has one 12db low pass filter and one 12db band pass filter.

  • Page 5: Linear Fm And Phase Modulation

    Linear FM and Phase Modulation! On Oscillator Type1, Type2, Reso, SinF, WaveTable and noise it is now possible to set the pitch modulation mode to either Nrm (normal – as before), FM (Linear Frequency Modulation) or PM (Phase Modulation). Linear FM is a much more powerful modulation option, than the “normal” cross modulation. In PM mode, the Pitch1 modulation parameter is still in FM mode, but the Pitch2 modulation parameter is in Phase Modulation mode.
  • Page 6 When an Oscillator pitch modulation mode is set to PM, the Pitc2 parameters name is changed to Phase.

  • Page 7: New Digital Filters

    New Digital Filters! Zaturn is now able to work without the analog filters. If a single of all of the VCF’s is set in Digital mode, the VCF(s) is replaced by a digital filter. Each digital filter has one 12db low pass filter and one 12db band pass filter.
  • Page 8 It is also possible to set either VCF in analog or digital mode, by touching the button in the top of the first VCF page.

  • Page 9: New Favorite Sound Functions

    New Favorite Sound Functions! The favorite sound bank is now selected, using Edit Knob 1, instead of the touch display. It is now also possible to select which elements should be loaded from the selected favorite sound. The following elements can be selected via the Load parameter: -Part: Will analyze the preset, and only load the modules, which are used by the part.

  • Page 10: Parameter Fine Adjust

    Parameter Fine Adjust A parameter fine adjust function has been added. First, adjust the parameter, as you would normally do, with a knob. Then push and hold the Modules/Bar Sel button, while adjusting the parameter again, using the knob. The parameter will now be adjusted inside a narrow range, and it will be easier to set it at a specific value.
  • Page 11 Written by Flemming Christensen 2023...
