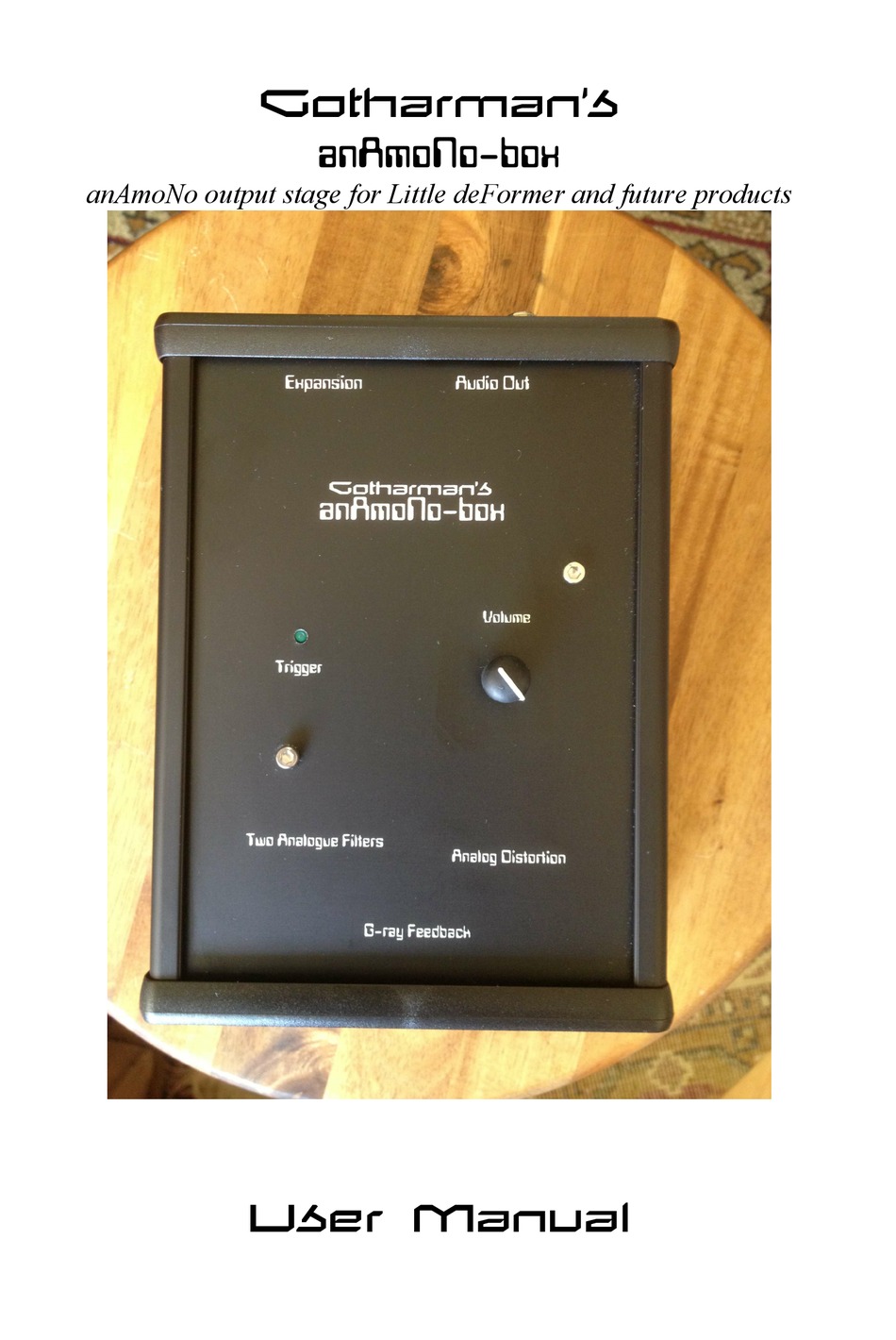

- Page 1 Gotharman’s anAmoNo-box anAmoNo output stage for Little deFormer and future products User Manual...
- Page 2 Contents Of This Manual Introduction Connecting Connections Parameters...
- Page 3 Introduction Thank you very much for purchasing/consider to purchase a Gotharman’s anAmoNo-box. When connecting anAmoNo-box to your Little deFormer 1 or 2, it will get an extra output with a twin parallel connected analogue filter, one multimode (LPF, BPF and HPF) and one that is always in BPF mode, analogue distortion and a G-ray feedback circuit.
- Page 4 Connecting anAmoNo-box and Little deFormer For connecting anAmoNo-box to your Little deFormer, you will need the 180 cm long cable, that was supplied together with your anAmoNo-box. If you should need a longer cable, or if your cable one day gets lost, you can use a 1:1, 9-pin SUB- D cable.
- Page 5 -It should now automaticly have detected the anAmoNo-box. You can check this by pushing the ”Edit” button one time, to enter the edit group select screen, and then push and hold the ”Inc” button, to scroll through the edit groups. The last selectable edit group should now say: ”anAmoNo- BOX”.
- Page 6 Connections Audio Out: The 1/4 inch jack connector is the audio output. Connect this to a mixer or an amplifier, or connect it to one of Little deFormers audio inputs, if you would like to re-sample or further process the sound from anAmoNo-box.
- Page 7 Parameters When anAmoNo-box are connected to your Little deFormer, a new edit group: ”anAmoNo BOX” will appear. Under this group, you will find the following parameters. All parameter values are stored within each preset. Bus - Values: 1 to 4. This parameter selects which of the 4 audio busses, anAmoNo-box are assigned to.
- Page 8 Mod1 – Selects whether CutMod 1 should affect: 1: Only the analogue multimode filter. 2: Only the analogue bandpass filter. 1+2: Both the multimode and the bandpass filter. 1-2: Both the multimode and the bandpass filter, but the modulation of the bandpass filter is reversed to the modulation of the multimode filter.
- Page 9 Written by Flemming Christensen ”Gotharman” 2013 www.gotharman.dk...
