Installing the Daughter Card
Installing the
The daughter card inserts into the connector located in the center of the motherboard. The
Daughter Card
connector is keyed so that the daughter card fits only one way. Before installing the card, examine
the slot in the motherboard and the fingers on the daughter card and note where the key is located.
Note: The Figure 10 is a general-purpose illustration that applies to all daughter cards.

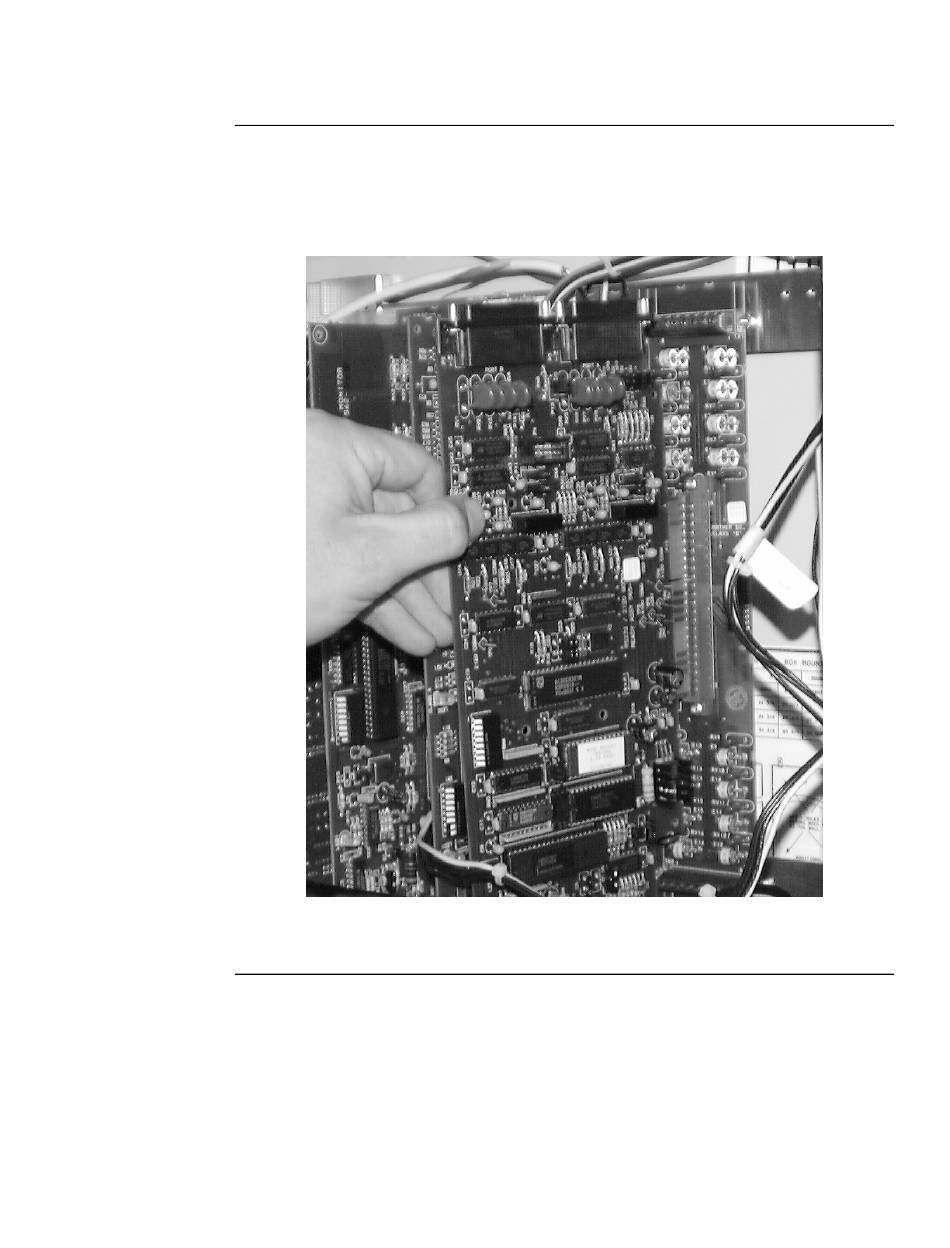

Figure 10. Installing the Daughter Card
