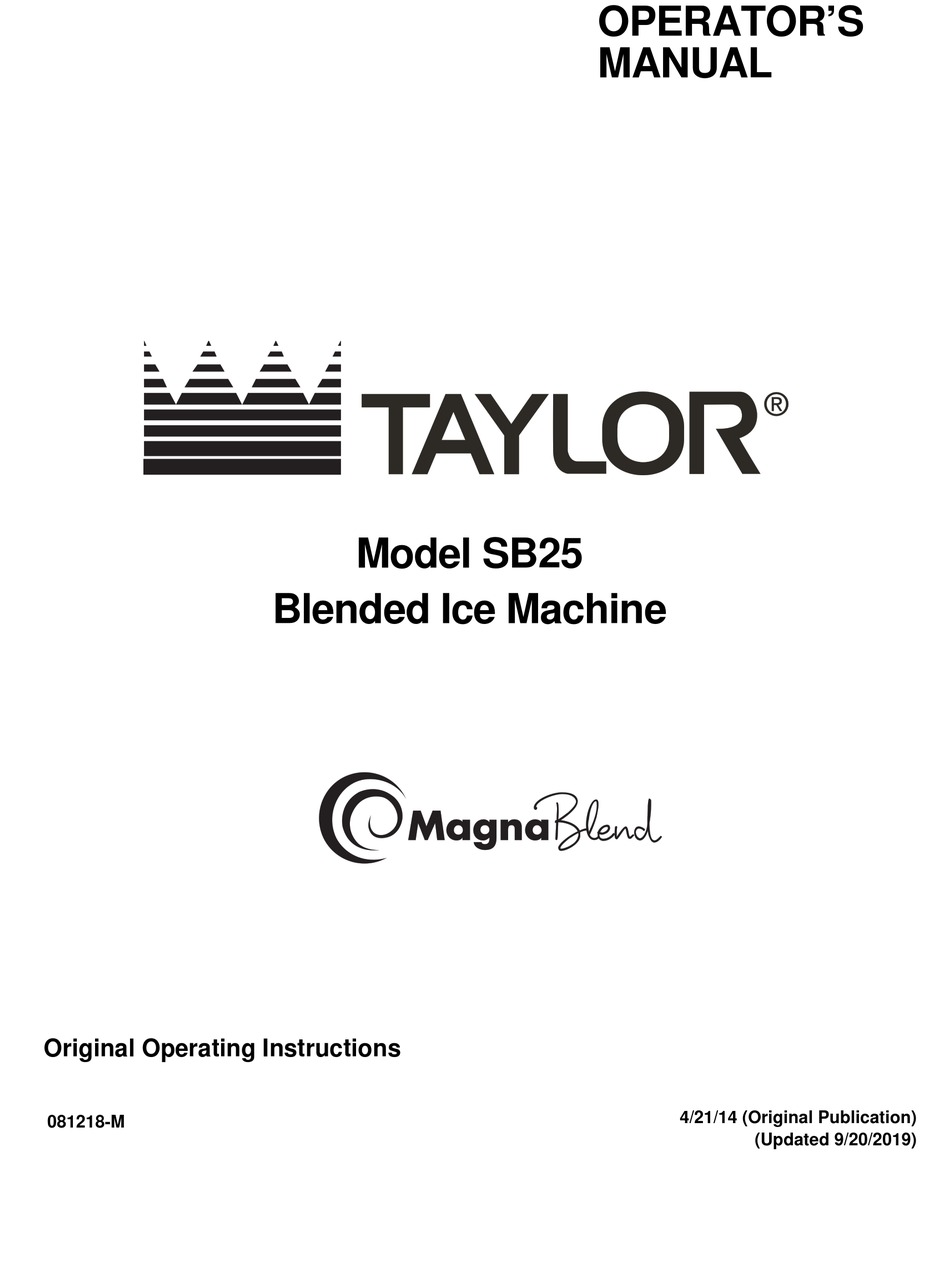

OPERATOR'S 
MANUAL
Model SB25
Blended Ice Machine
Original Operating Instructions
4/21/14 (Original Publication)
081218-M
(Updated 9/20/2019)

Advertisement

Table of Contents
loading

Related Manuals for Taylor MagnaBlend SB25

Summary of Contents for Taylor MagnaBlend SB25

  • Page 1 OPERATOR’S  MANUAL Model SB25 Blended Ice Machine Original Operating Instructions 4/21/14 (Original Publication) 081218-M (Updated 9/20/2019)
  • Page 2 Voltage__________________ Cycle__________ Phase__________________________________ Maximum Fuse Size: ______________________________________________________ A Minimum Wire Ampacity: ___________________________________________________ A © 2014 Taylor Company (Updated 9/20/2019) 081218-M Any unauthorized reproduction, disclosure, or distribution of copies by any person of any portion of this work may be a violation of Copyright Law of the United States of America and other countries, could result in the awarding of Statutory Damages of up to $250,000 (17 USC 504) for infringement, and may result in further civil and criminal penalties.

  • Page 3: Table Of Contents

    Table of Contents Section 1: To the Installer Installer Safety ............1-1 Site Preparation .
  • Page 4 Table of Contents Section 8: Troubleshooting Guide Section 9: Parts Replacement Schedule Section 10: Limited Warranty on Equipment Section 11: Limited Warranty on Parts 081218-M...

  • Page 5: Section 1: To The Installer

    • Only Taylor service personnel should perform used. NEVER use a water jet or hose to rinse or clean installation, maintenance, and repairs on Taylor the machine. Failure to follow this instruction may result machines.

  • Page 6: Water Connections

    TO THE INSTALLER Drain Hose Connection comply with applicable national, state, and local codes. Water temperature is not to exceed 125°F (51°C). Water The drain hose must be attached to the drain port  pressure to the machine must be 55 psi to 100 psi connection on the bottom of the machine.
  • Page 7 If the supply cord is damaged, it must be replaced by a Taylor service technician to avoid a hazard. To the Installer Model SB25...
  • Page 8 TO THE INSTALLER Notes: Model SB25 To the Installer...

  • Page 9: Section 2: To The Operator

    To the Operator Section 2 The Model SB25 is a commercial combination ice Note: Your Taylor warranty is valid only if the parts are shaver/blender machine equipped with metered water authorized Taylor parts, purchased from the local dispensing, available in 115V 60 Hz or 220/240V 50 Hz.
  • Page 10 TO THE OPERATOR Notes: Model SB25 To the Operator...

  • Page 11: Section 3: Safety

    Safety Section 3 We at the Taylor Company are concerned about the safety of operators at all times when they are coming in contact with the machine and its parts. Taylor makes WARNING! Avoid injury. every effort to design and manufacture built-in safety •...
  • Page 12 SAFETY WARNING! DO NOT operate the machine NOTICE! Cleaning and sanitizing schedules unless all service panels and access doors are fastened are governed by your federal, state, or local regulatory with screws. Failure to follow this instruction may result in agencies and must be followed accordingly.

  • Page 13: Section 4: Operator Parts Identification

    Operator Parts Identification Section 4 SB25 Exploded View Figure 4-1 Operator Parts Identification Model SB25...
  • Page 14 OPERATOR PARTS IDENTIFICATION SB25 Exploded View Parts Identification Item Description Part No. Item Description Part No. Lid-Pour-Pitcher (115V) 081248 Cover A.-Hopper 081239 Pitcher-Blender- Unguarded  083605 Hopper-Ice *Small-Clear 081238 (115V Machines) Grate-Right 081227 Pitcher A.-Guard (230V 083605-GB 081219 Machines) Rod-Pivot-Actuator 081220 Hose A.-Bib (115V) X82350...

  • Page 15: Accessories

    OPERATOR PARTS IDENTIFICATION Accessories © 2014 Taylor Company Figure 4-2 Item Description Part No. Item Description Part No. Kit A.-Brush X68468 ® 055492 Sanitizer Stera-Sheen Green Brush-End-Door-Spout SS 039719 Bottle-Wash-Plastic 044818 Brush-Mix Pump Body-3” X 7” 023316 Cup-Measuring-18 oz (2PK)
  • Page 16 OPERATOR PARTS IDENTIFICATION Notes: Model SB25 Operator Parts Identification...

  • Page 17: Section 5: User Interface

    User Interface Section 5 © 2014 Taylor Company Figure 5-1 Item Description Rinser-ON/OFF (Power Switch for Rinser Side) Shaver/Blender-ON/OFF (Power Switch for Shaver Side) KEY PAD User Interface Model SB25...
  • Page 18 USER INTERFACE Keypad The operator can control the functions of the machine. Recipe Keys Keypads are located on the front face of the blender. Selects pre-programmed flavor/recipes. There are two versions of the keypad. The 115V 60 Hz machine is equipped with a cane sugar pump. This keypad has a NO SUGAR key.

  • Page 19: Recipe Upload Procedure

    USER INTERFACE Blender Pitchers Recipe Upload Procedure Blender pitchers must be washed, rinsed, and sanitized The customer recipe information is held in the every 4 hours to prevent a buildup of film on the pitchers. microprocessor memory. Recipes distributed on USB memory drives can be uploaded to the system automatically.

  • Page 20: Calibration Procedures

    USER INTERFACE Calibration Procedures Calibration should be performed weekly. 3. Press the key (115V 60 Hz machines) or the Calibration is performed by using the main keypad. The ice hopper must be full of ice before starting the calibration procedures. key (220/240V 50 Hz machines) to save the Tools required to perform calibration: current calibration value and run a test cycle of the...

  • Page 21: Section 6: Operating Procedures

    Operating Procedures Section 6 These instructions are at the point where you enter the • Make sure the ice is not bridging (melted store in the morning and find the parts disassembled and together) on the side of the ice hopper, which laid out to air-dry from the previous night's cleaning.

  • Page 22: 4-Hour Cleaning Procedure

    Stera-Sheen or Kay-5 ). Use warm water and To manually blend, press and hold the blend button. follow the Taylor-approved manufacturer's Release the button to stop blending the drink. specifications. 2. Remove the blender pitchers. Discard any remaining Liquid Cane Sugar Pump Connection product into the back sink.

  • Page 23: Daily Cleaning And Sanitizing Procedures

    1. Prepare a 2.5 gal. (9.5 L) pail of a cleaning/sanitizing solution with an active chlorine concentrate of 100 PPM to 200 PPM. Use warm water and follow the Taylor-approved manufacturer's specifications. This pail will be used for cleaning. 2. Prepare another 2.5 gal. (9.5 L) pail of a cleaning/ sanitizing solution with an active chlorine concentrate of 100 PPM to 200 PPM.
  • Page 24 OPERATING PROCEDURES 4. Place the blender pitcher on the blender base.  101516 (See Figure 6-8.) 101514 Figure 6-10 7. Press the shave key until all the remaining ice has been shaved. Figure 6-8 8. Remove the blender pitcher and discard the ice into 5.
  • Page 25 100 PPM to 200 PPM. Use warm water and follow the  Taylor-approved manufacturer's specifications. If required by your local code, rinse with clean water. 16. Place the following parts on a clean, dry surface to air-dry overnight: ice hopper, ice hopper cover, blender pitchers, splash guard, and ice chute.
  • Page 26 OPERATING PROCEDURES 20. Thoroughly flush cleaning/sanitizing solution under 101257 the lip of the ice shaver assembly plastic cover. Make sure the solution is applied in a complete 360° circle. (See Figure 6-15.) 101592 Figure 6-17 27. Using the squeeze bottle of cleaning/sanitizing solution, thoroughly flush the shaver assembly blade, dispensing tubes, and surrounding area....

  • Page 27: Weekly Cleaning And Sanitizing Of Cane Sugar System (115V 60 Hz Machines)

    101525 solution with an active chlorine concentrate of  100 PPM to 200 PPM. Use warm water and follow the Taylor-approved manufacturer's specifications. This pail will be usedfor cleaning. 4. Prepare another 2.5 gal. (9.5 L) pail of a cleaning/ sanitizing solution with an active chlorine concentrate of 100 PPM to 200 PPM.
  • Page 28 OPERATING PROCEDURES Notes: Model SB25 Operating Procedures...

  • Page 29: Section 7: Operator's Checklist

    Operator's Checklist Section 7 During Cleaning and Sanitizing Troubleshooting Bacterial Count  Thoroughly clean and sanitize the machine regularly, including complete disassembly and brush-cleaning. CLEANING AND SANITIZING MUST BE  Use all brushes supplied for thorough cleaning. PERFORMED DAILY.  Properly prepare the cleaning and sanitizing solutions.
  • Page 30 OPERATOR'S CHECKLIST Notes: Model SB25 Operator's Checklist...
  • Page 31 Check the connection at the outlet to ensure the outlet is functioning. c. Main board problem or blown fuse. c. Contact a Taylor service technician. 2. Water is not dispensing. a. Water line is kinked. a. Straighten the water line.
  • Page 32 PROBABLE CAUSE REMEDY 13. Recipe key #4 - slow blink (low bus a. Low voltage supplied to machine. a. Contact a Taylor service technician. voltage). 14. Recipe key #1, 2, 3, or 4 - fast blink a. No communication between keypad a.
  • Page 33 Parts Replacement Schedule Section 9 Table 9-1 Every Every Description Annually 3 Months 6 Months Brushes Inspect and Replace Minimum if Necessary *Shaver Blade *Water Filter *Seal-Shaver Motor Shaft *Must be replaced by an authorized service technician. Parts Replacement Schedule Model SB25...
  • Page 34 PARTS REPLACEMENT SCHEDULE Notes: Model SB25 Parts Replacement Schedule...
  • Page 35 LIMITED WARRANTY Taylor warrants the Product against failure due to defect in materials or workmanship under normal use and service as follows. All warranty periods begin on the date of original Product installation. If a part fails due to defect during the applicable warranty period, Taylor, through an authorized Taylor distributor or service agency, will provide a new or ...
  • Page 36 LEGAL REMEDIES The owner must notify Taylor in writing, by certified or registered letter to the following address, of any defect or complaint with the Product, stating the defect or complaint and a specific request for repair, replacement, or other correction of the Product under warranty, mailed at least thirty (30) days before pursuing any legal rights or remedies.
  • Page 37 Taylor warrants the Parts against failure due to defect in materials or workmanship under normal use and service as follows. All warranty periods begin on the date of original installation of the Part in the Taylor unit. If a Part fails due to defect during the applicable warranty period, Taylor, through an authorized Taylor distributor or service agency, will provide a new or re-manufactured Part, at Taylor’s option, to replace the failed defective Part at no charge for the Part.
  • Page 38 Taylor. 5. Replacement of wear items designated as Class “000” Parts in the Taylor Operator’s Manual, as well as any release sheets and clips for the Product’s upper platen assembly.
  • Page 39 LEGAL REMEDIES The owner must notify Taylor in writing, by certified or registered letter to the following address, of any defect or complaint with the Part, stating the defect or complaint and a specific request for repair, replacement, or other correction of the Part under warranty, mailed at least thirty (30) days before pursuing any legal rights or remedies.
  • Page 40 LIMITED WARRANTY ON PARTS Notes: 11-4 Model SB25 Limited Warranty on Parts...
