Refrigerated Chef Bases
Models:

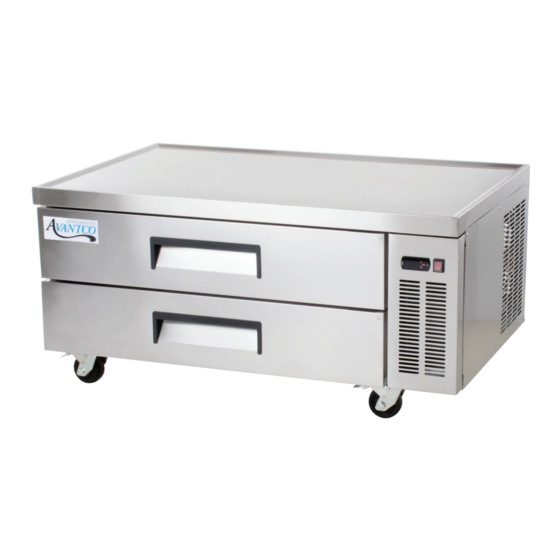

#178CBE36HC 36" 2 Drawer Refrigerated Chef Base
#178CBE48HC 48" 2 Drawer Refrigerated Chef Base
#178CBE52HC 52" 2 Drawer Refrigerated Chef Base
Note:
Please read this manual thoroughly prior to equipment set-up, operation, and maintenance.
www.AvantcoRefrigeration.com
User Manual
#178CBE60HC 60" 2 Drawer Refrigerated Chef Base
#178CBE72HC 72" 4 Drawer Refrigerated Chef Base
#178CBE84HC 84" 4 Drawer Refrigerated Chef Base
03/2023
178CBE48HC
Advertisement
Table of Contents
Related Manuals for Avantco 178CBE36HC
Summary of Contents for Avantco 178CBE36HC
- Page 1 03/2023 178CBE48HC Refrigerated Chef Bases Models: #178CBE36HC 36" 2 Drawer Refrigerated Chef Base #178CBE60HC 60" 2 Drawer Refrigerated Chef Base #178CBE48HC 48" 2 Drawer Refrigerated Chef Base #178CBE72HC 72" 4 Drawer Refrigerated Chef Base #178CBE52HC 52" 2 Drawer Refrigerated Chef Base #178CBE84HC 84"...
-
Page 2: Table Of Contents
User Manual Refrigerated Chef Bases Table of Contents Warnings ..............................3 Installation ..............................4 Cabinet Location Guidelines .........................4 Electrical ..............................5 Temperature Controls ..........................5 Functions ..............................6 Running a Manual Defrost Cycle ......................6 Loading Food Pans ..........................7 Top Surface Dimensions .........................7 Drawer Configuration Diagrams ......................8 Safety / Warnings .............................9 Operation / Maintenance ........................10 Loading Product ............................10... -
Page 3: Warnings
User Manual Refrigerated Chef Bases Warnings DANGER: RISK OF FIRE OR EXPLOSION. FLAMMABLE REFRIGERANT USED. TO BE REPAIRED ONLY BY TRAINED SERVICE PERSONNEL. DO NOT PUNCTURE REFRIGERANT TUBING. PELIGRO: RIESGO DE INCENDIO O EXPLOSION. REFRIGERANTE INFLAMABLE UTILIZADO. PARA SER REPARADO SOLAMENTE POR PERSONAL DE SERVICIO CALIFICADO. NO PINCHAR LA TUBERÍA REFRIGERANTE. -
Page 4: Installation
User Manual Refrigerated Chef Bases Installation This unit is intended for use in a temperature-controlled environment of less than 75 degrees Fahrenheit and 60% relative humidity. Malfunction due to improper conditions is not covered under warranty. IMPORTANT! Please Read Before Installation: •... -
Page 5: Electrical
User Manual Refrigerated Chef Bases - Dust collected on condenser coil will cause unit to malfunction. - Malfunction due to temperatures above 75 degrees Fahrenheit, humidity above 60%, or improperly maintained condenser coil will void the warranty. • Select a location away from heat and moisture-generating equipment. - Ambient temperatures above 75 degrees Fahrenheit may cause the compressor to malfunction. -
Page 6: Functions
User Manual Refrigerated Chef Bases Functions Adjusting the Temperature Your new refrigerator is already factory-set to run at optimum temperatures for food safety and should require no adjustments. Refrigerators are set to cycle between a minimum temperature of 33 degrees Fahrenheit. Adjusting the temperature changes the minimum temperature your unit will run at. -
Page 7: Loading Food Pans
User Manual Refrigerated Chef Bases Loading Food Pans Chef bases are designed to hold 4" deep food pans. Using the included divider bars, configure each drawer to best meet specific service needs. Each drawer can hold a combination of full, 1/3, 1/6, or 1/9 pans as needed. -
Page 8: Drawer Configuration Diagrams
User Manual Refrigerated Chef Bases Drawer Configuration Diagrams www.AvantcoRefrigeration.com... -
Page 9: Safety / Warnings
User Manual Refrigerated Chef Bases Safety / Warnings Please pay close attention to the safety notices in this section. Disregarding these notices may lead to serious injury and/or damage to the unit. Attention • To minimize shock and fire hazards, be sure not to overload outlet. Please designate one out- let for your unit. -
Page 10: Operation / Maintenance
User Manual Refrigerated Chef Bases Operation / Maintenance WARNING: DISCONNECT POWER CORD BEFORE CLEANING ANY PARTS OF THE UNIT. NOTE: We strongly recommend that any servicing be performed by an authorized service technician. Loading Product • Do not store flammable and explosive gas or liquids inside the unit. Cleaning the Fan Blades &... -
Page 11: Condenser Coil Cleaning Instructions
User Manual Refrigerated Chef Bases Condensor Coil Cleaning Instructions The condenser coil is located at the bottom behind the panel. A dusty condenser may lead to high energy consumption, less cooling effectiveness, and compressor damage. Disconnect the electrical power from the unit. Remove the front cover and base cover with a screwdriver. -
Page 12: Troubleshooting
User Manual Refrigerated Chef Bases Troubleshooting Problem Possible Solution Fuse blown or circuit breaker tripped Replace fuse or reset circuit breaker. Power cord unplugged Plug in power cord. Compressor is not running Thermostat set too high Set thermostat to lower temperature. Cabinet in defrost cycle Wait for defrost cycle to finish.
