MAINTENANCE INSTRUCTIONS:
1. For opening and closing of the fixture, refer to instructions and diagrams on other side of sheet.
2. A regularly scheduled maintenance program should be established to retain optimum light output and reduce heat
retention. Dusting with a soft, clean, dry cloth is normally sufficient for the
should be removed regularly from both sides of the lens during maintenance (using ammonia water).
Do not use alkaline or acid cleaners on reflector surfaces.
Driver Assembly
5/10/13
130510005
!
Make certain electricity is OFF before beginning maintenance procedures.
4
optics.
Any accumulation of dust or dirt
Advertisement
Table of Contents

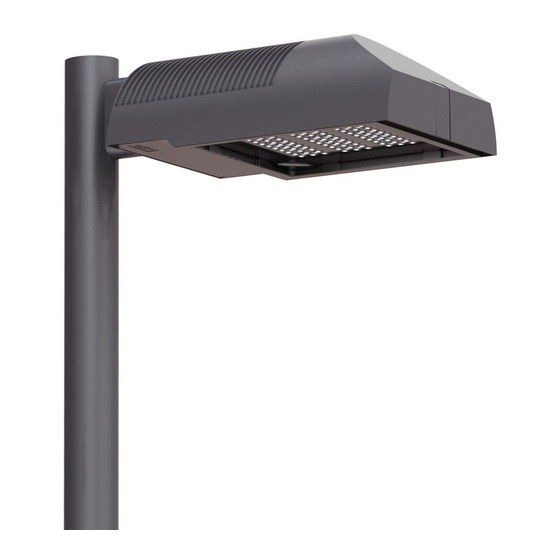

Related Manuals for Hubbell KIM LIGHTING ARCHETYPE-LED-AR-LED
Summary of Contents for Hubbell KIM LIGHTING ARCHETYPE-LED-AR-LED
- Page 1 Make certain electricity is OFF before beginning maintenance procedures. MAINTENANCE INSTRUCTIONS: 1. For opening and closing of the fixture, refer to instructions and diagrams on other side of sheet. 2. A regularly scheduled maintenance program should be established to retain optimum light output and reduce heat retention.
- Page 2 1. Push up on lens frame and hold. pen latch (see above). 1. Push up on lens frame to seat gasket. 2. Pull latch lever up and out of 2. Lens hinges at back opens at front. 2. Push latch lever toward keeper. keeper.
- Page 3 FIXTURE CLOSURE: Wipe off the lens, if necessary. See “Lens Frame Action” diagrams on page 2. To Remove Lens Clip: To Install Lens Clip: Insert tip of a large flat blade screwdriver Use small block of wood and tap on clips under the lens clip legs and twist to remove.
- Page 4 Page 4 Kim Lighting 16555 E. Gale Ave. P.O. Box 60080 City of Industry, CA 91716-0080 626/968-5666 FAX 626/330-3861...
