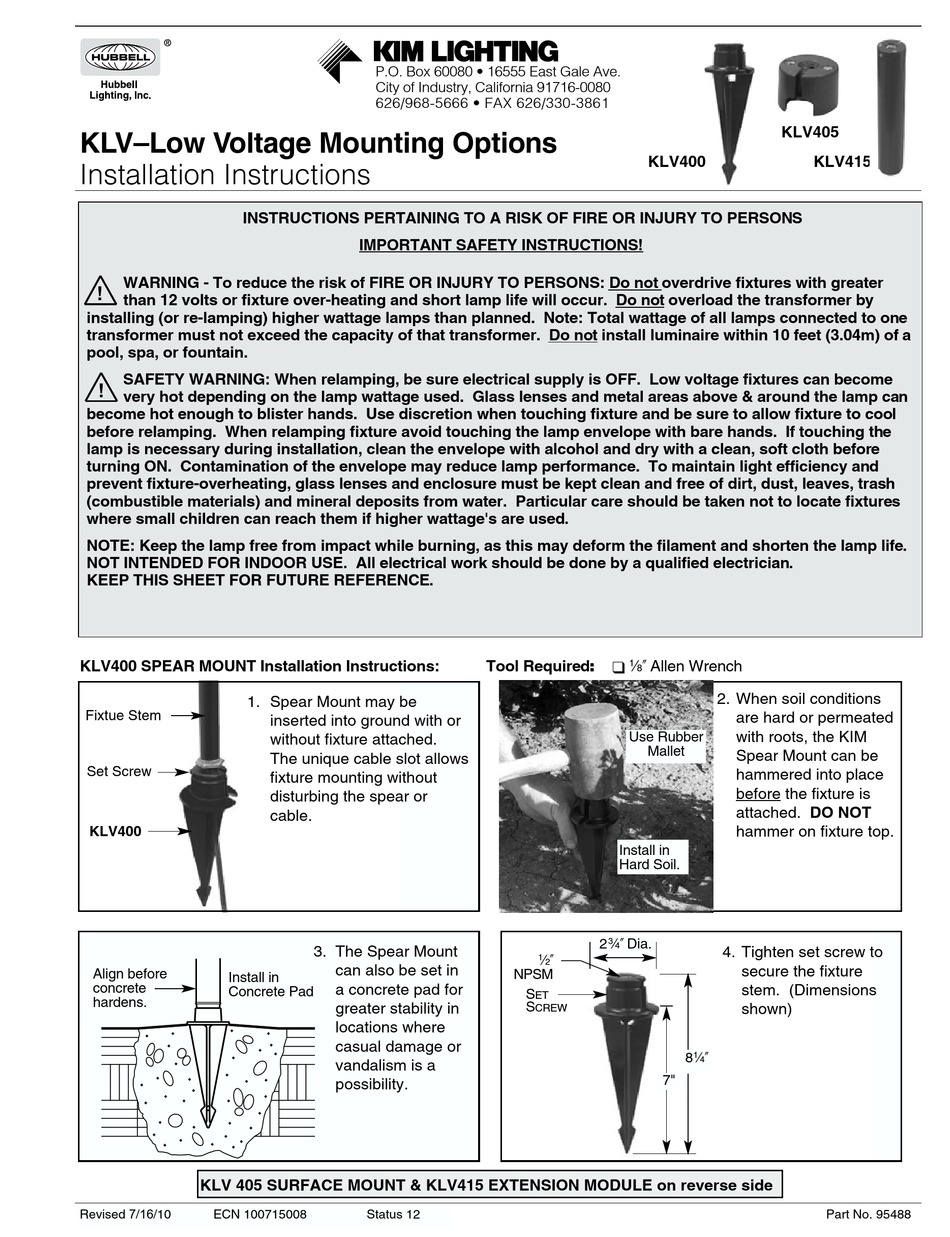

Hubbell Kim Lighting KLV Series Installation Instructions

KLV–Low Voltage Mounting Options
Installation Instructions
INSTRUCTIONS PERTAINING TO A RISK OF FIRE OR INJURY TO PERSONS
WARNING - To reduce the risk of FIRE OR INJURY TO PERSONS: Do not overdrive fixtures with greater
!
than 12 volts or fixture over-heating and short lamp life will occur. Do not overload the transformer by
installing (or re-lamping) higher wattage lamps than planned. Note: Total wattage of all lamps connected to one
transformer must not exceed the capacity of that transformer. Do not install luminaire within 10 feet (3.04m) of a
pool, spa, or fountain.
SAFETY WARNING: When relamping, be sure electrical supply is OFF. Low voltage fixtures can become
!
very hot depending on the lamp wattage used. Glass lenses and metal areas above & around the lamp can
become hot enough to blister hands. Use discretion when touching fixture and be sure to allow fixture to cool
before relamping. When relamping fixture avoid touching the lamp envelope with bare hands. If touching the
lamp is necessary during installation, clean the envelope with alcohol and dry with a clean, soft cloth before
turning ON. Contamination of the envelope may reduce lamp performance. To maintain light efficiency and
prevent fixture-overheating, glass lenses and enclosure must be kept clean and free of dirt, dust, leaves, trash
(combustible materials) and mineral deposits from water. Particular care should be taken not to locate fixtures
where small children can reach them if higher wattage's are used.
NOTE: Keep the lamp free from impact while burning, as this may deform the filament and shorten the lamp life.
NOT INTENDED FOR INDOOR USE. All electrical work should be done by a qualified electrician.
KEEP THIS SHEET FOR FUTURE REFERENCE.

KLV400 SPEAR MOUNT Installation Instructions:

1. Spear Mount may be
Fixtue Stem
Set Screw
KLV400
Align before
Install in
concrete
Concrete Pad
hardens.
KLV 405 SURFACE MOUNT & KLV415 EXTENSION MODULE on reverse side
Revised 7/16/10 ECN 100715008
P.O. Box 60080 • 16555 East Gale Ave.
City of Industry, California 91716-0080
626/968-5666 • FAX 626/330-3861

IMPORTANT SAFETY INSTRUCTIONS!

inserted into ground with or
without fixture attached.
The unique cable slot allows
fixture mounting without
disturbing the spear or
cable.
3. The Spear Mount
can also be set in
a concrete pad for
greater stability in
locations where
casual damage or
vandalism is a
possibility.
Status 12
KLV400
Tool Required: B" Allen Wrench
Use Rubber
Mallet
Install in
Hard Soil.
2L" Dia.
K"
NPSM
S
ET
S
CREW
7"
KLV405
KLV415
2. When soil conditions
are hard or permeated
with roots, the KIM
Spear Mount can be
hammered into place
before the fixture is
attached. DO NOT
hammer on fixture top.
4. Tighten set screw to
secure the fixture
stem. (Dimensions
shown)
8J"
Part No. 95488
